Design and principle of operation
Types3374-15/-17/-26/-36
57
194
50
1)
h
298
120
120
h
1
1)
220
h
57
193
146
146
10
16
h
x
h
x
1)
When actuator stem extended
Type3374 Dimension h Dimension h
1
Dimension h
x
-15
30 90
≥100
-17
-26
15 75
-36

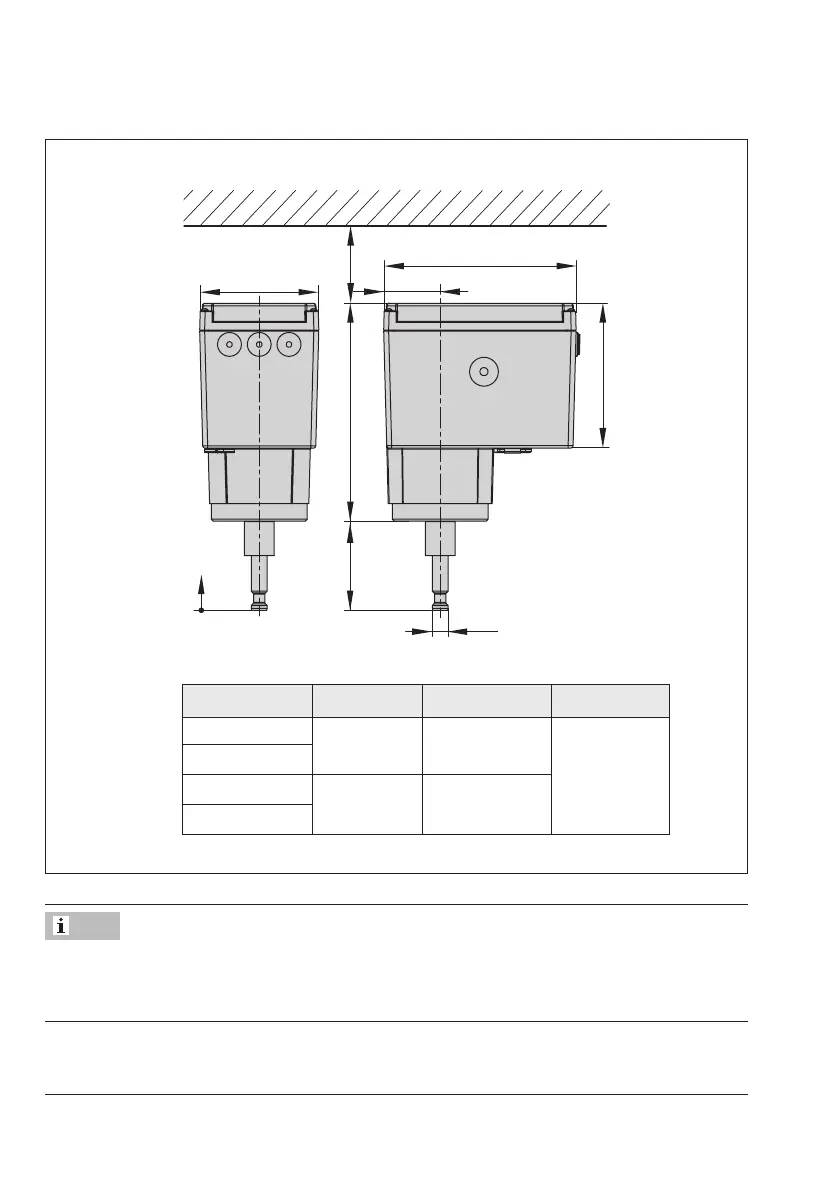

Fig.3-4: Dimensions in mm · Type3374, version with ring nut (form A)
The dimension h
x
indicates the minimum clearance required to be able to operate the actua-
tor. We recommend an even greater clearance of at least 600mm to facilitate wiring and
operation. We recommend a minimum clearance of 600mm.
Note
