Design and principle of operation
Dimensions and weights∙Type42-36E with Type2423E Valve balanced by a dia-
phragm

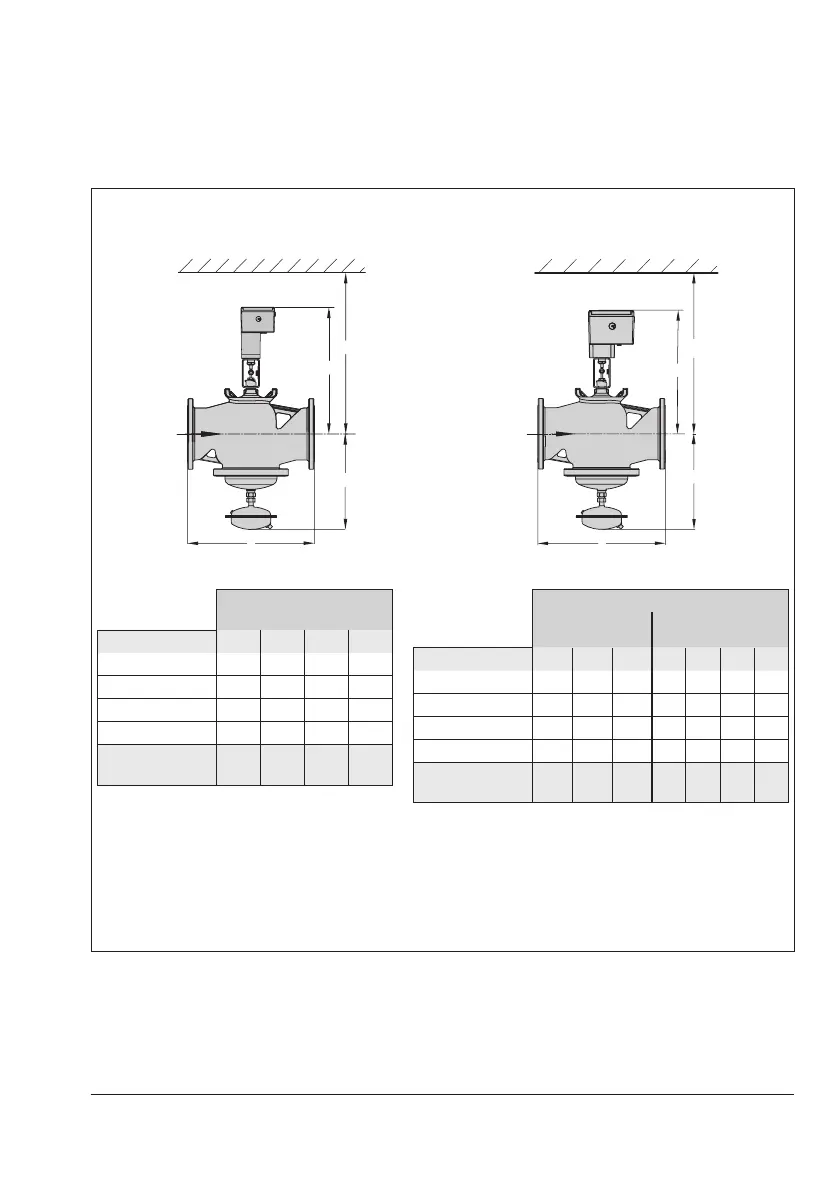

Dimensional drawings · Type2423E Valve balanced by a diaphragm ·DN65 to 250
Type42-36E with Type3374 Electric Actuator
H
L
H3
H4
H
L
H3
H4
Dimensions in mm
and weights
With
Type3374-25 Actuator
Valve size DN 125 150 200 250
Length L 400 480 600 730
Height H
2)3)
450 475 545 545
Height H3 655 685 800 800
Height H4 1000 1030 1150 1150
Weight for
PN16
1)
in kg
95 115 295 315
1)
+10% for cast steel PN 40 and spheroidal
graphite iron PN 25
2)
Minimum clearance required to remove the
diaphragm actuator: +100mm
3)
Actuator with two diaphragms: Height H
+55mm
Dimensions in mm
and weights
With
Types3374-11/-
21 Actuators
Type3374-15
Actuator
Valve size DN 65 80 100 125 150 200 250
Length L 290 310 350 400 480 600 730
Height H
2)3)
355 355 380 450 475 545 545
Height H3 520 520 540 510 595 660 690
Height H4 820 820 890 860 950 1010 940
Weight for
PN16
1)
in kg
46 51 68 90 110 290 310
1)
+10% for cast steel PN 40 and spheroidal graphite iron
PN 25
2)
Minimum clearance required to remove the diaphragm
actuator: +100mm
3)
Actuator with two diaphragms: Height H +55mm
Fig.3-7: Dimensions of the regulators with a valve balanced by a diaphragm, DN65 to 250
