Design and principle of operation
Dimensions and weights∙Type42-36E with Type 2423E Valve balanced by a bellows
Dimensions in mm and
weights
With Type3374-25 Actuator With Type 3374-15 Actuator
Valve size DN 125 150 200 250 125 150 200 250
Length L 400 480 600 730 400 480 600 730
Height H1 460 590 730 730 460 590 730 730
Height H3 655 685 800 800 510 595 660 690
Height H4 1000 1030 1150 1150 860 950 1010 940
Type42-36E PICV
Height H
4)5)
625 765 895 895 625 765 895 895
Diaphragm actuator ØD=285mm, A=320cm²
3)
Weight for PN16
1)
in kg 130 180 435 495 125 170 425 485
1)
+10% for cast steel PN 40 and spheroidal graphite iron PN 25
2)
Optionally with 320 cm² actuator for DN65 to 100. For regulators with double adapter (uT3018) for DN65
to 100, actuator 320 cm² recommended
3)
Optionally with 640 cm² actuator and ØD = 390mm
4)
Minimum clearance required to remove the diaphragm actuator: +100mm
5)
Actuator with two diaphragms: Height H +55mm

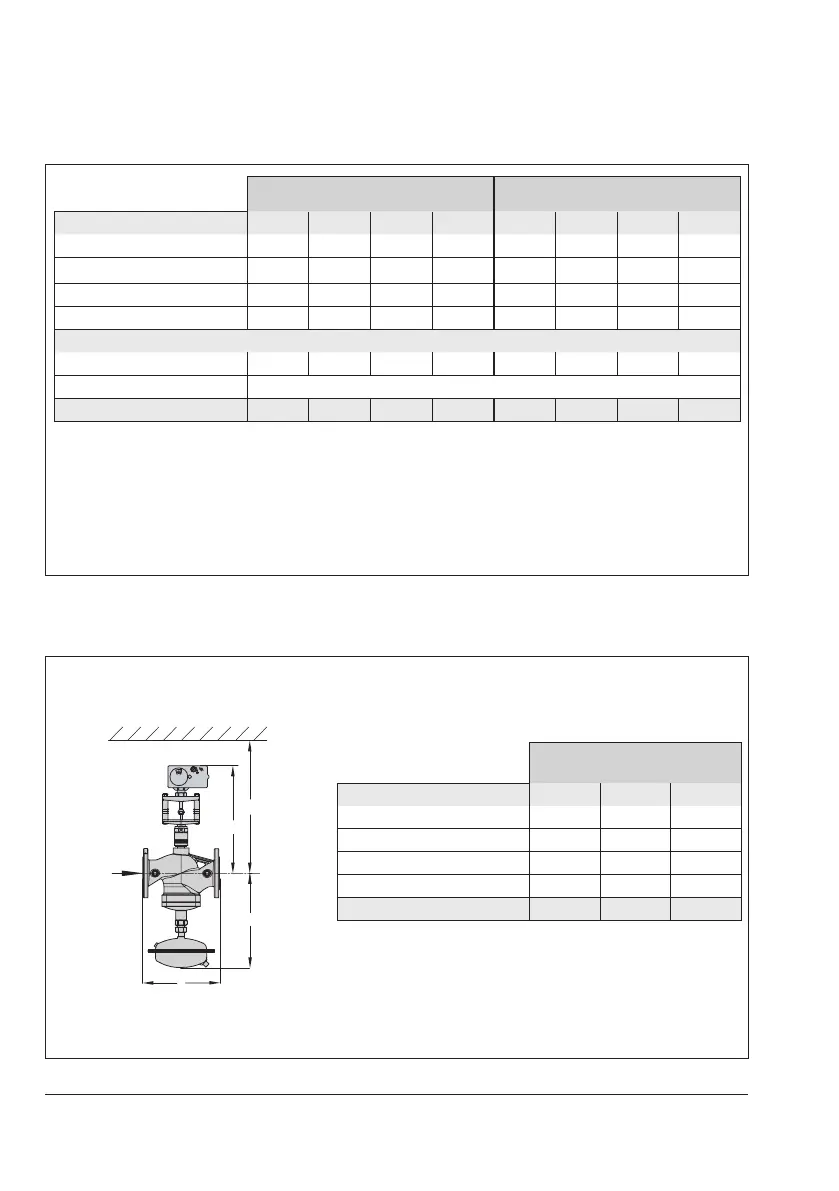

Fig.3-5: Dimensions of the regulators with a valve balanced by a bellows
Dimensions and weights∙Type42-36E with Type2423E Valve balanced by a dia-
phragm
Dimensional drawings · Type2423E Valve balanced by a diaphragm ·DN65 to 100
Type42-36E with Type5827-N3 Electric Actuator
4)
H
L
H3
H4
Dimensions in mm and
weights
With
Type5827-N3 Actuator
Valve size DN 65 80 100
Length L 290 310 350
Height H
2)3)
355 355 380
Height H3 433 433 453
Height H4 730 730 800
Weight for PN16
1)
in kg 43 48 65
1)
+10% for cast steel PN 40 and spheroidal graphite iron PN 25
2)
Minimum clearance required to remove the diaphragm actuator:
+100mm
3)
Actuator with two diaphragms: Height H +55mm
Fig.3-6: Dimensions of the regulators with a valve balanced by a diaphragm, DN65 to 100
