Design and principle of operation
Type 6116-xx06011x000xxxx without booster for positioner attachment
120
93
92
129
Attachment according to NAMUR with
Type4765/3760
Accessories order numbers
Type4765:1400-6223
Type3760:1400-6224
Combined with Type3766-000 Positioner
Accessories order no.: 1400-6227

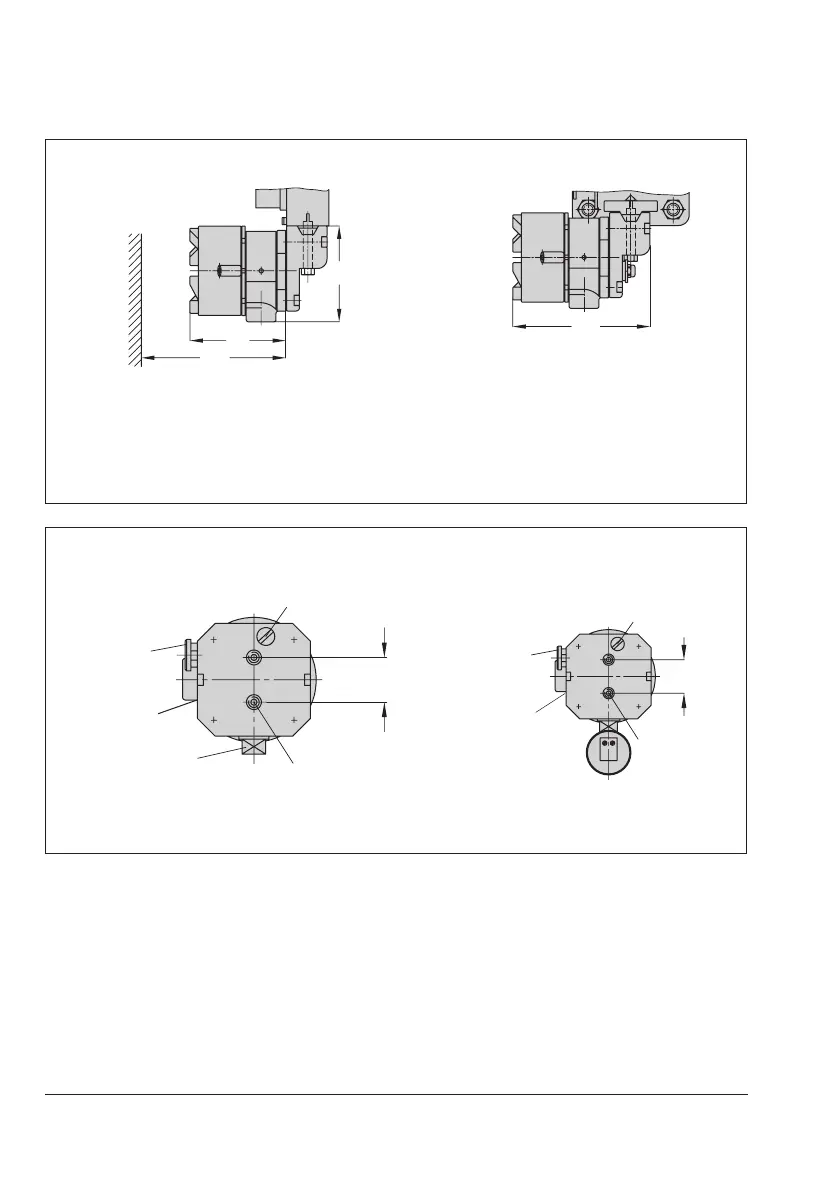

Fig.8: Dimensional drawings of positioner attachment
Rear view without mounting parts Rear view with booster
30
Restrictor
EXHAUST(venting)
IP54
M6, 10 deep
Pressure gauge connection
OUTPUT
SUPPLY
30
Restrictor
EXHAUST
(venting/
IP54)
OUTPUT
M6, 10 deep
Fig.9: Dimensional drawings of rear views
