Design and principle of operation
Attachment to version with cast yoke or rod-type yoke
230
113
200
40
95
SUPPLY
¼-18NPTorG¼
117
Ø84
8
Attachment to a valve with cast
yoke
Order no.: 1400-6217
Attachment to a valve with rod-
type yoke
Order no.: 1400-6218

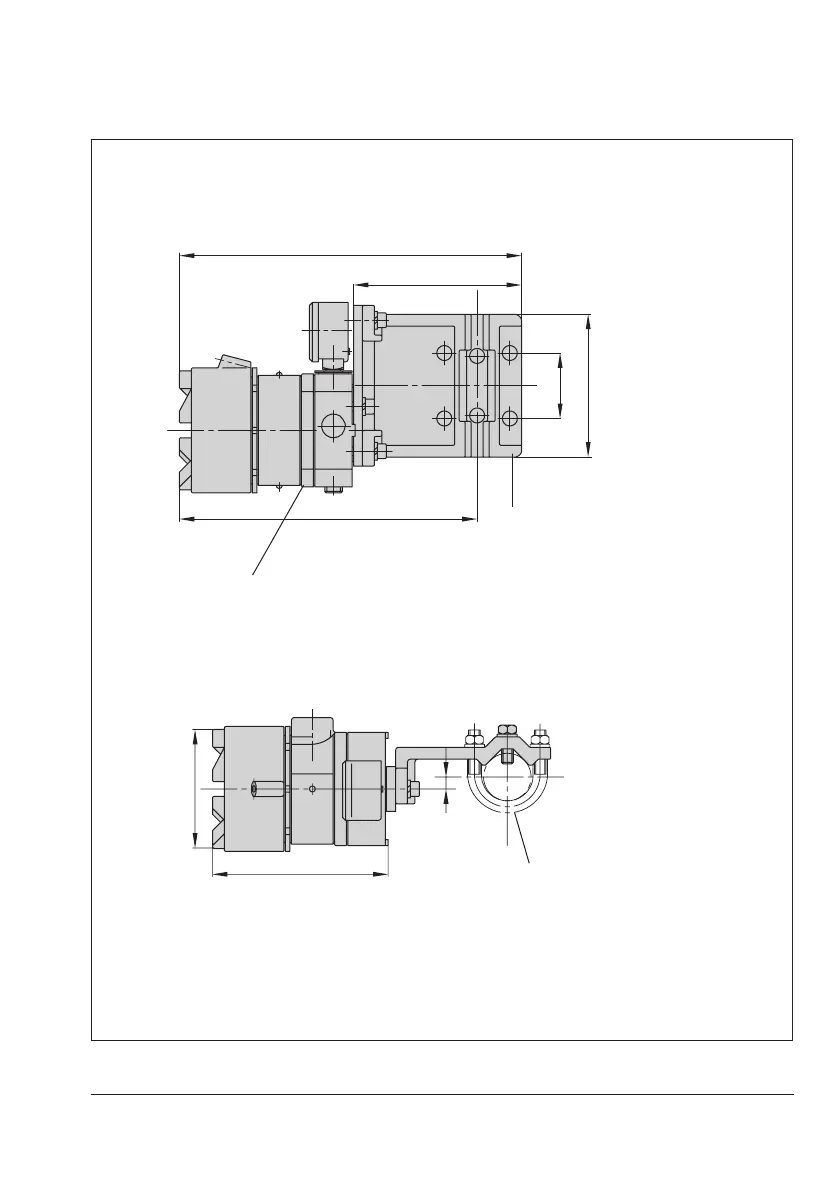

Fig.7: Dimensional drawings of versions with cast yoke or rod-type yoke
