Samson Graphite 25 User Manual

13
Graphite 25 · USB/MIDI Keyboard Controller
Display Features
The Graphite 25 features a backlit LCD screen that displays performance and status information.
Data - The current value of a given controller.
Operation - When a component is activated, the component name and operation data will be
shown. If more than one component is activated at the same time, the display shows the informa-
tion of the component that was most recently activated.
Preset - The current preset number. The range is 01–30.
Parameter Tags
Oct - Octave shift for the keyboard. The range is +/- 4.
Trans - Transpose shift for the keyboard. The range is +/- 12.
Bank - The bank is the collection of all encoders and function buttons set when the selected pre-
set is “01” or User preset. The range is 1–4. When remote control preset is selected, it will display
“-“.
Ch+/- - Displays the transmitting MIDI Channel of the encoders and function buttons.
Zone - The number of the activated zones. The range is 1–3 .
Status Indicators
Local - This sign will appear when the Local function is engaged.
Mute - This sign will appear when the Mute function is engaged.
A/B - Indicates the active pad bank.
Button Indicators
F1–F16 - When a function button is at On status, the corresponding block will appear.
Trigger Pads - When a pad is pressed, the corresponding block will appear.
Transport Controls - When a transport button is on, the corresponding block will appear.

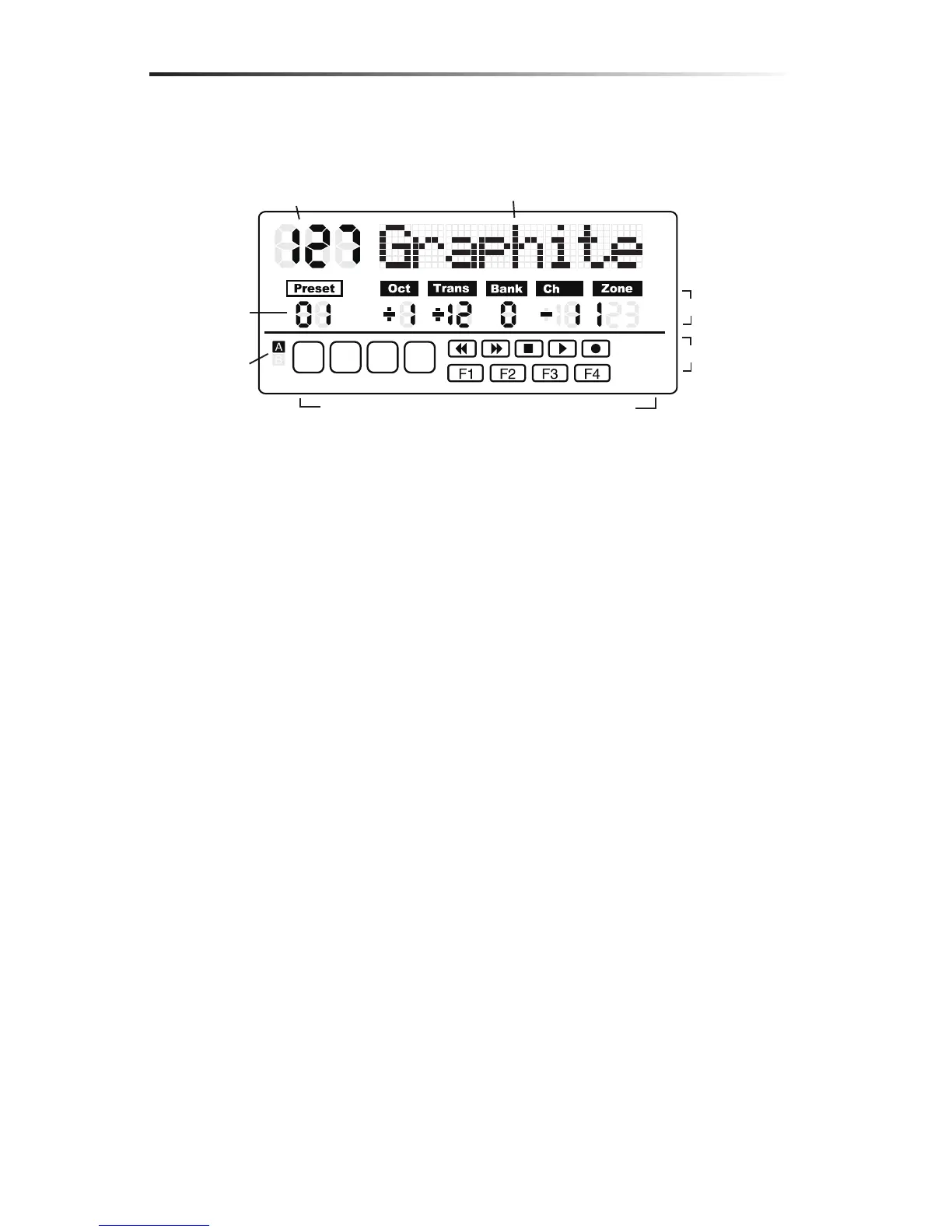

Status Indicators
Data
Operation
Parameter Tags
Pad Bank A/B
Pads, Function and Transport Button Indicators
Preset
+/-
Local
Mute
