XML System Setups
Vocal Vocal Electric Guitar Bass Guitar Keyboards
Signal Processor
Direct Box
AMP 2 Output
AMP 2 Output

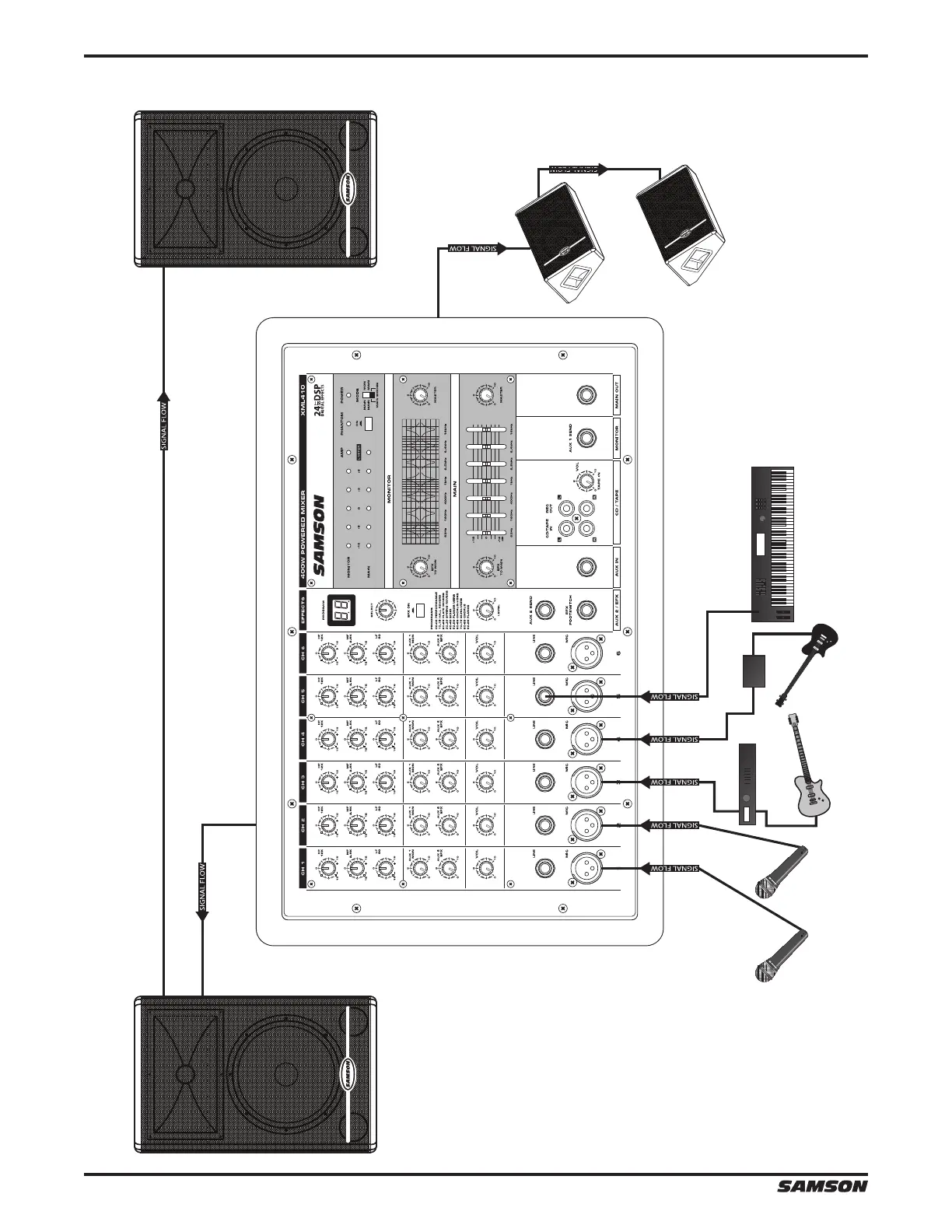

This system shows the XML410
power amp operating in MAIN/
MONITOR mode, with two
speakers connected to AMP 2
and two monitor speakers con-
nected to AMP 1. Microphones
are connected to low-impedance
inputs on channels 1 and 2, and
the output of the bass direct
box is connected to the low-
impedance input on channel
4. The keyboards, as well as the
electric guitar’s signal processors
outputs, are connected to the
mixer’s line inputs.
