Owner's Manual
27
XML POWERED MIXERS

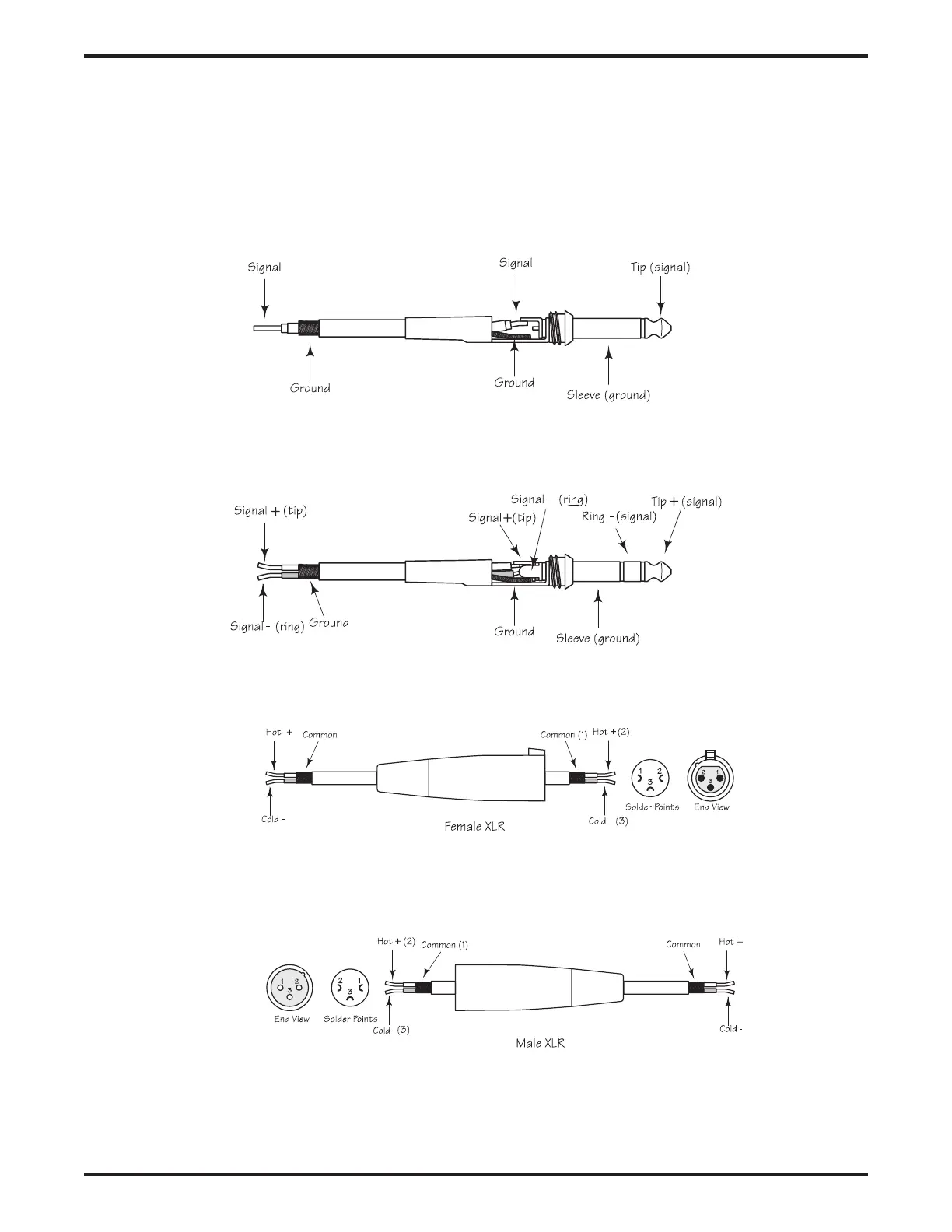

XML Wiring Guide
Unbalanced 1/4” Connector
Balanced TRS 1/4” Connector
Connecting the XML Mixers
The are several ways to interface the XML mixers to support a variety of applications. The XML mixers feature balanced
inputs and outputs, so connecting balanced and unbalanced signals is possible.
XLR Balanced Wiring Guide
