3. DISASSEMBLY AND REASSEMBLY

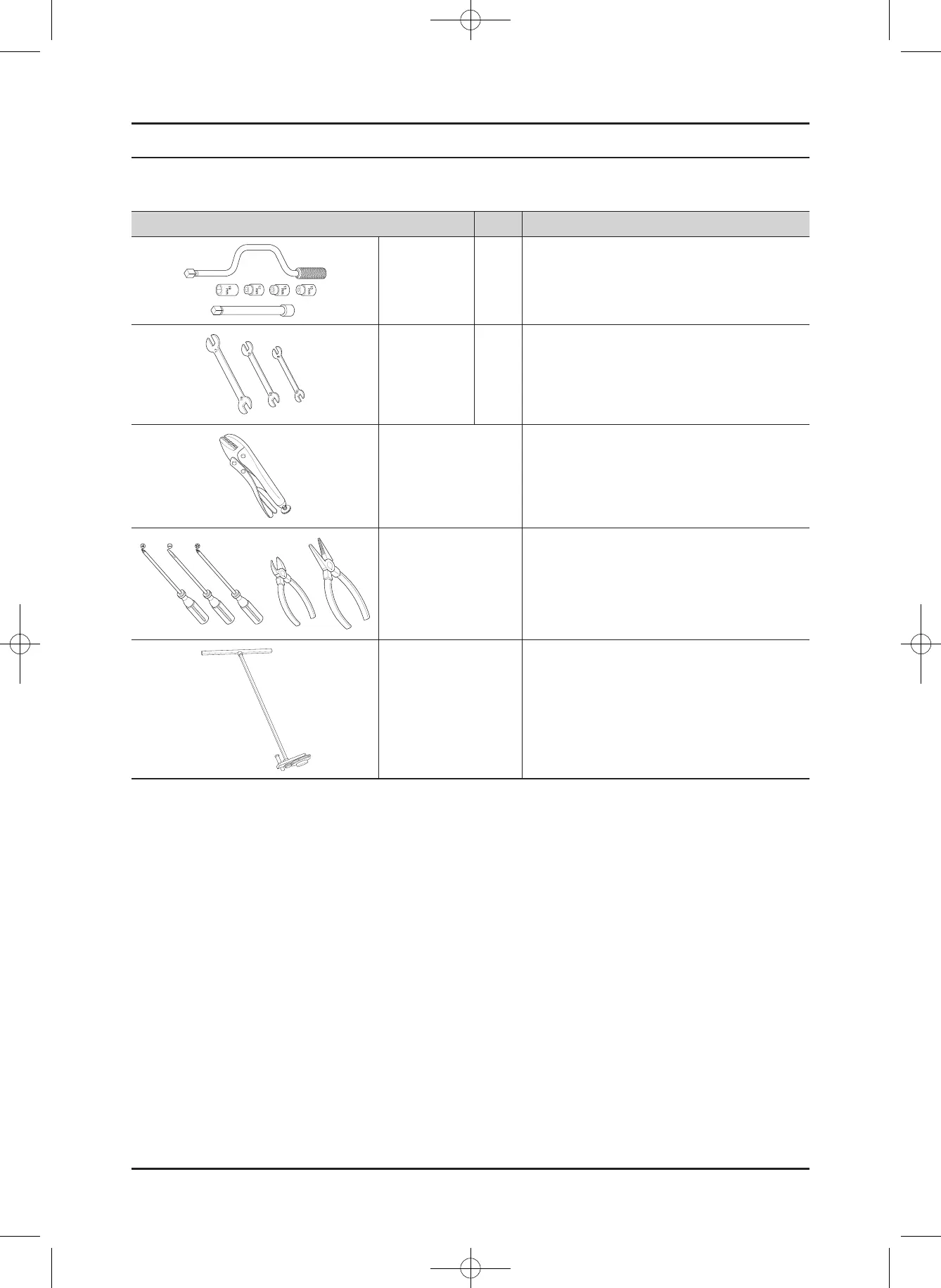

3-1. TOOLS FOR DISASSEMBLY AND REASSEMBLY
Tool Type Remarks
Boxdriver
10mm
17mm
Tub(16),Fixerscrew(5),Motor(1),Balance(5)
Damper(2),Damper(friction1)
Double-ended
spanner
10mm
17mm
Replacedbyboxdriver
Leg
Vice pliers
A Tool for protecting empty turning of bolt or
abrasionfromusingboxdriver
For disassembly of Spin drum
Others
(screwdriver,nipper,
long nose pliers)
Common tools for servicing
JIG for the ASSY SPIN
BASKET
