Disassembly and Reassembly
3-18 Samsung Electronics
No. Parts Procedure Remark
8
Fan

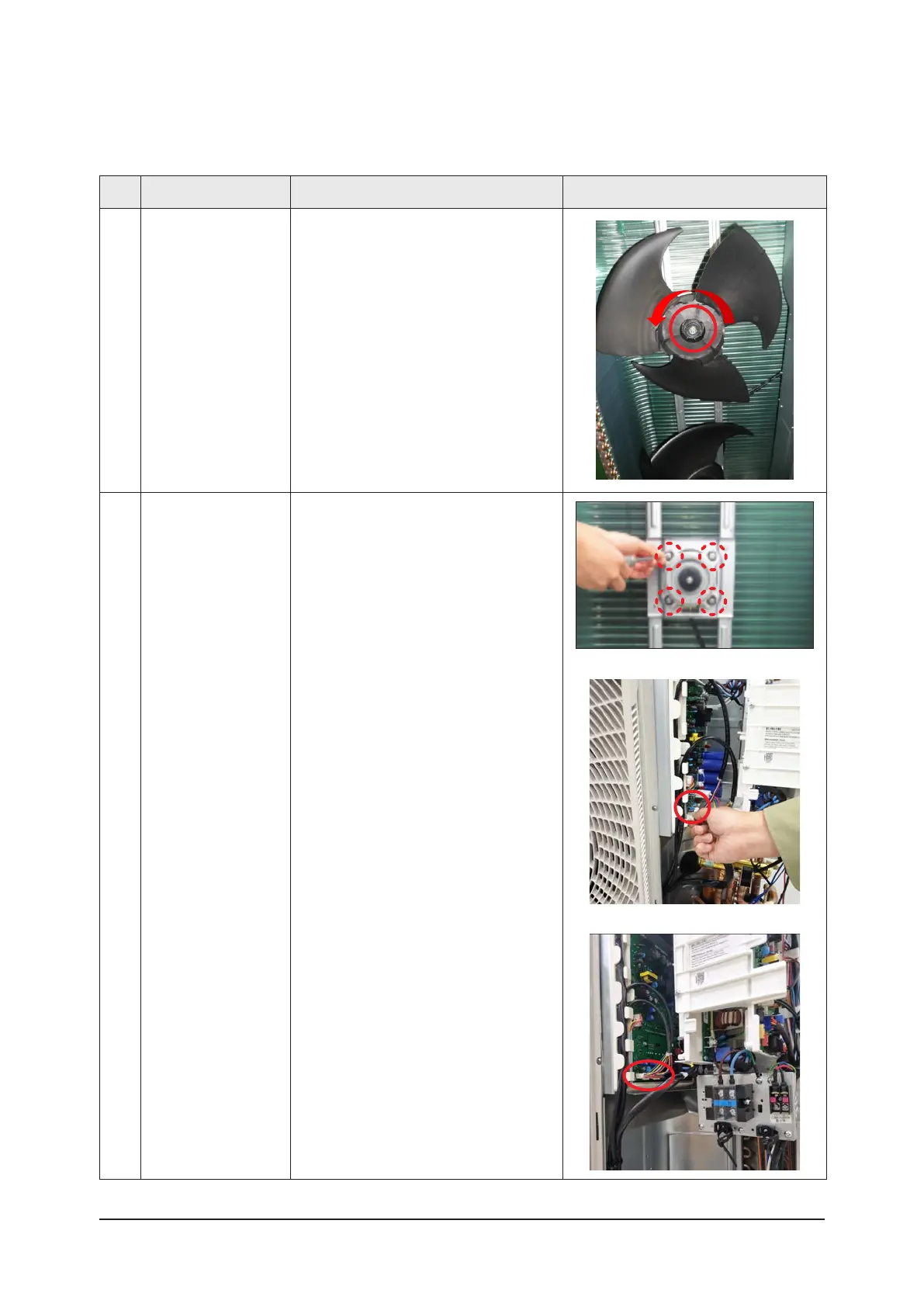

1) Remove the 2 fixing nuts like the pic-
ture on the right side. (Use Hexagon
Wrench, Monkey Spanner, Hexagon
Socket)
9 Motor 1) Separate the Fan Propeller.
2) Remove the 8 screws which is fixed
to Motor. (Use +Screw Driver)
3) Separate the Motor Wire connector
from the Outdoor Unit Control Part.
<AC024/036BXUPCH, AC036BXUDCH>
<AC048/060BXUPCH>
To Next Page
