Disassembly and Reassembly
3-46 Samsung Electronics

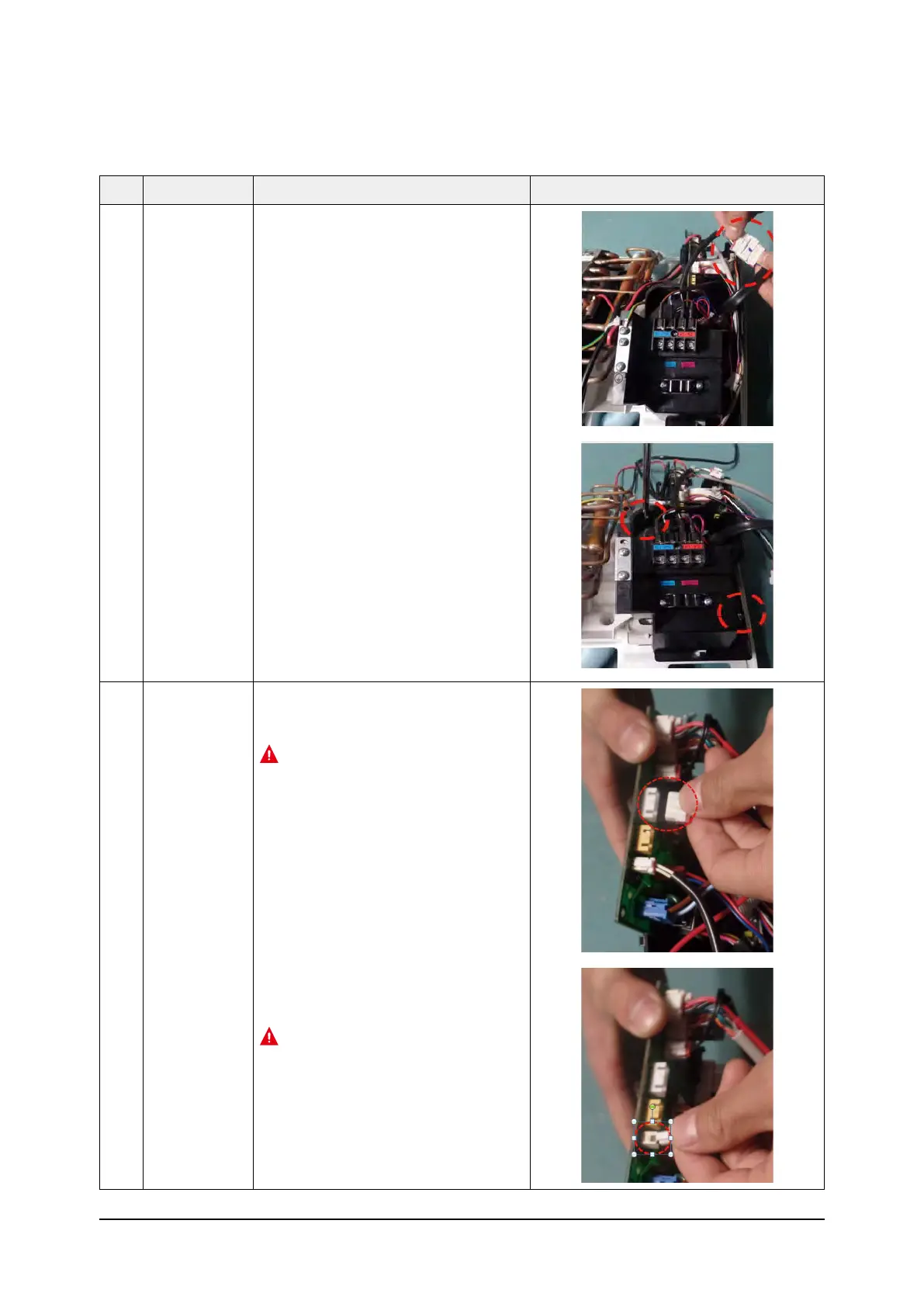

No Parts Procedure Remark
4) Loosen MOTOR wires(white).
5) Take off the CASE-CONTROL from the
main frame. (use + Screw Driver)
4 PBA 1) Loosen the STEP UP/DOWN connector
(CN802).
Caution
When you separate the connector,
pull pressing the locking button.
2) Loosen the FUSE CHK connector
(CN140).
Caution
When you separate the connector,
pull pressing the locking button.
To Next Page
