Reference Sheet
7-4 Samsung Electronics
 CONDENSER
High temperature and high pressure gas state refrigerant discharged from the compressor is converted to a liquid state as it is cooled
down by the heat emission in the outdoor condenser unit, and sent to the evaporator.
 COMPRESSOR
Low temperature and low pressure refrigerant is compressed and sent to the cycling system
 EVAPORATOR
Liquid refrigerant sucked in through the capillary tubes cools down the room by absorbing the surrounding heat as it evaporates
(converting from liquid to gas). (Absorbing heat required for evaporation)
 SERVICE VALVE
 Youcanopenthevalvebyturningtheneedvalvecounterclockwiseusinghexwrench,anditisusedforvacuum,gaspurging,
refrigerant injection, refrigerant purging, and indoor-outdoor unit connection.
 ACCUMULATOR
Accumulator prevents the flow of liquid-state refrigerant into the compressor. (Liquid-state refrigerant flowing into the compressor
will overload the compressor.)

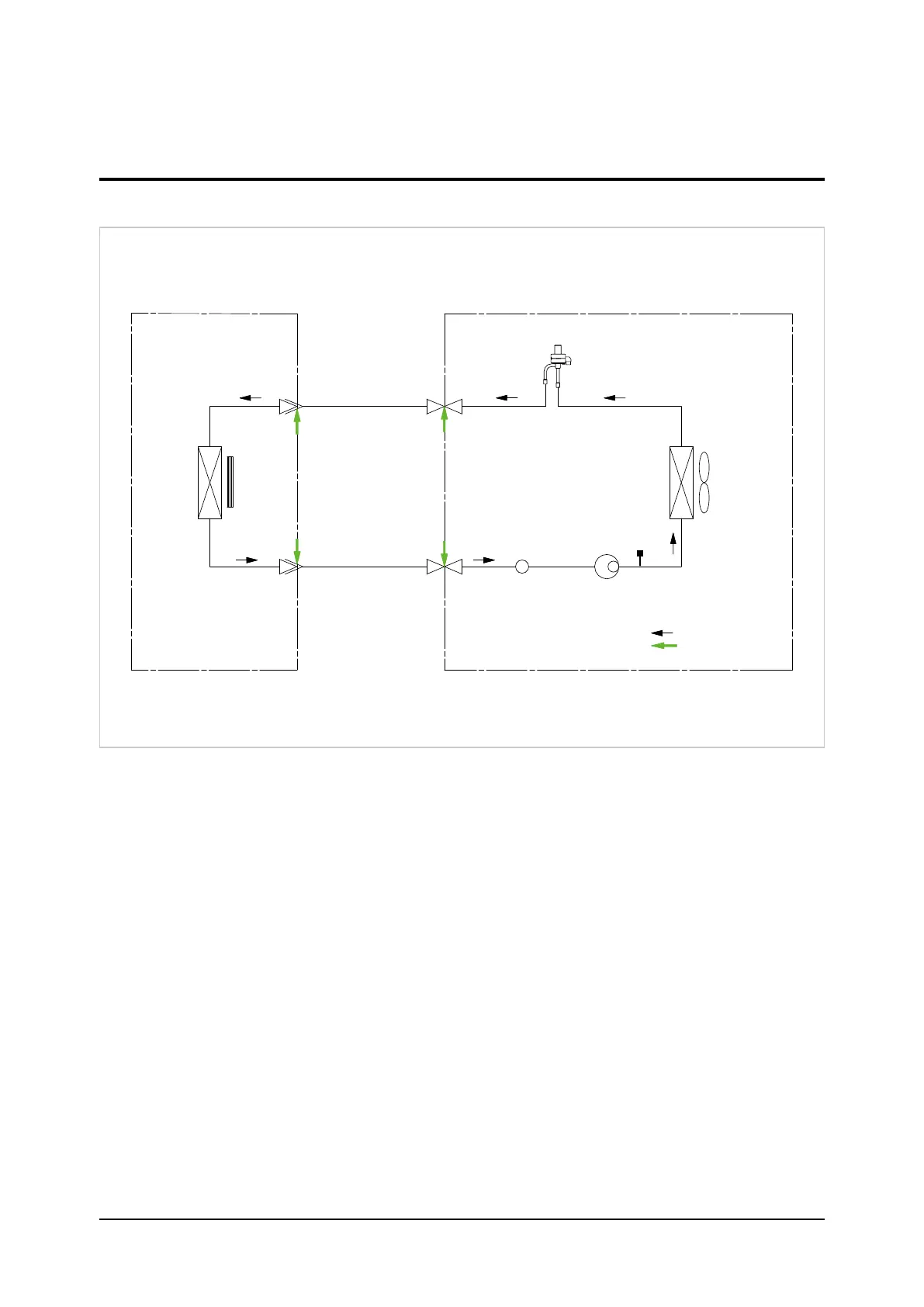

7-2 Refrigerating Cycle Diagram
Indoor Unit
Outdoor Unit
Heat exchanger
Evaporator
Liquid pipe
Gas pipe
3-way valve
3-way valve
Electronic expansion valve
Compressor
Cooling
Leak check points
Aux accumulator
Fan
Heat exchanger
Evaporator
Fan
Pressure
Switch-High
