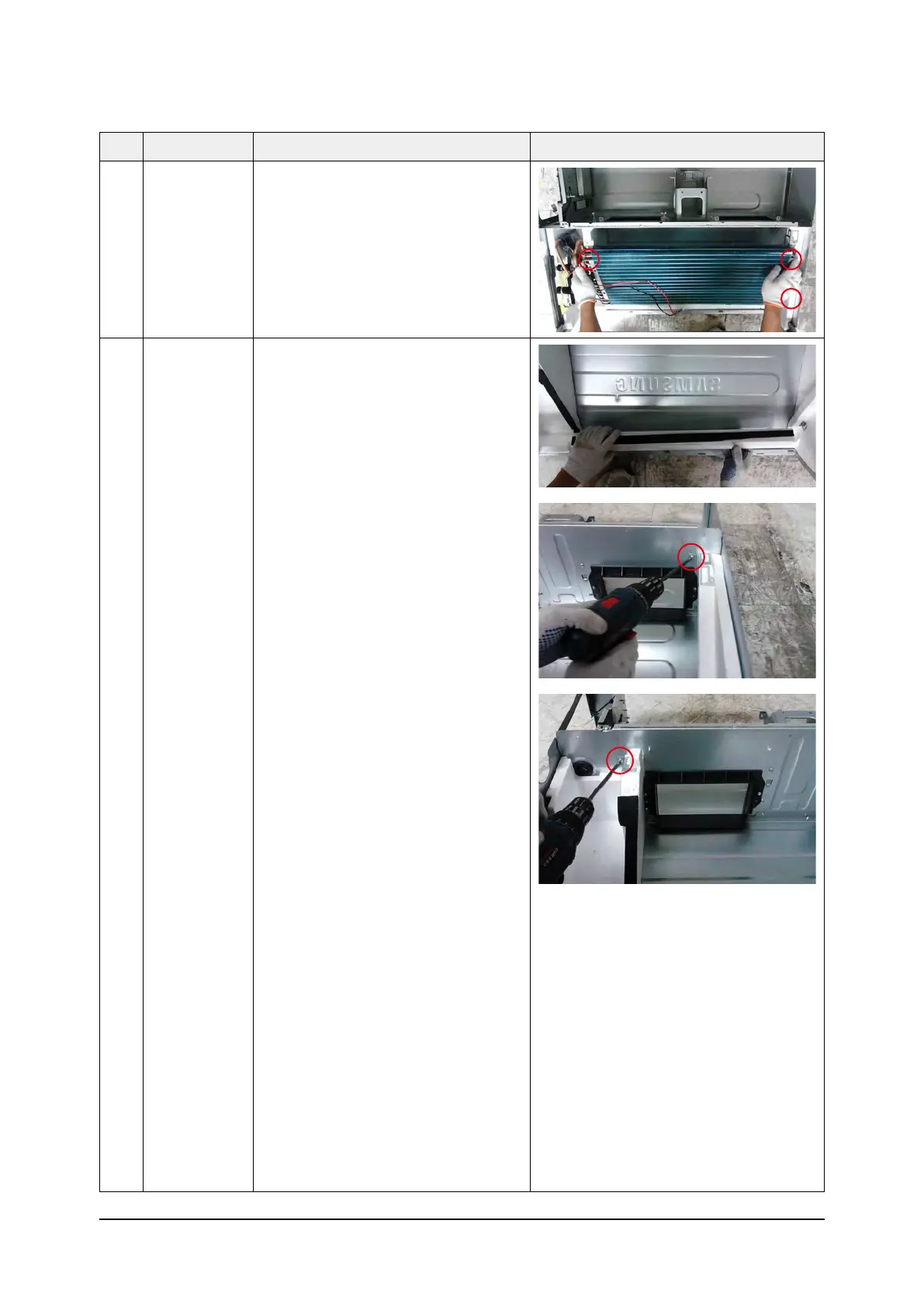

Disassembly and Reassembly

3-66 Samsung Electronics

No Parts Procedure Remark

4) Disassemble the Evap.

- Unscrew 3 screws.

Then pull the Evap out

4 Cushion 1) Pull out the Cushion.

2) Disassemble the Seal Cushion LF.

- Unscrew 1 screws

3) Disassemble the Assy Cushion Right.

- Unscrew 1 screws
