Disassembly and Reassembly
3-78 Samsung Electronics

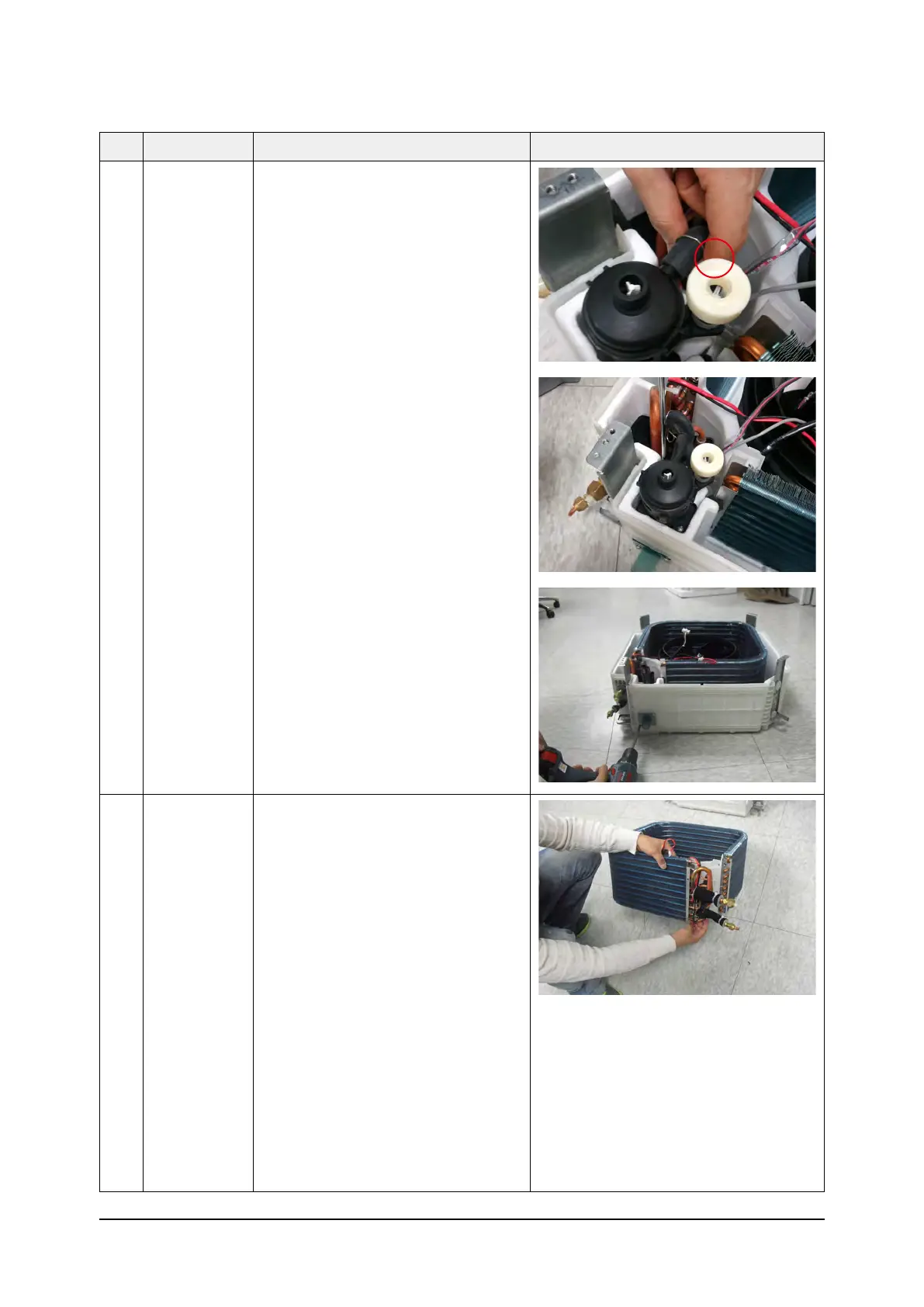

No Parts Procedure Remark
9 Drain Pump &
Hose
1) Remove the 2 fixed screws and
disconnect the white drainage hose
from the Drain Pump.
(Use +Screw Driver)
2) Remove the 2 screws and take the
Drain-Hose out from the indoor unit
to disassemble the transparent Drain-
Hose fixed on the side of the indoor unit.
(Use +Screw Driver)
10 Evap.
Temperature
Sensor
1) Use your hand to remove the
temperature sensor attached to the
Evap Pipe along with the fixing clip.
