Disassembly and Reassembly

3-92 Samsung Electronics

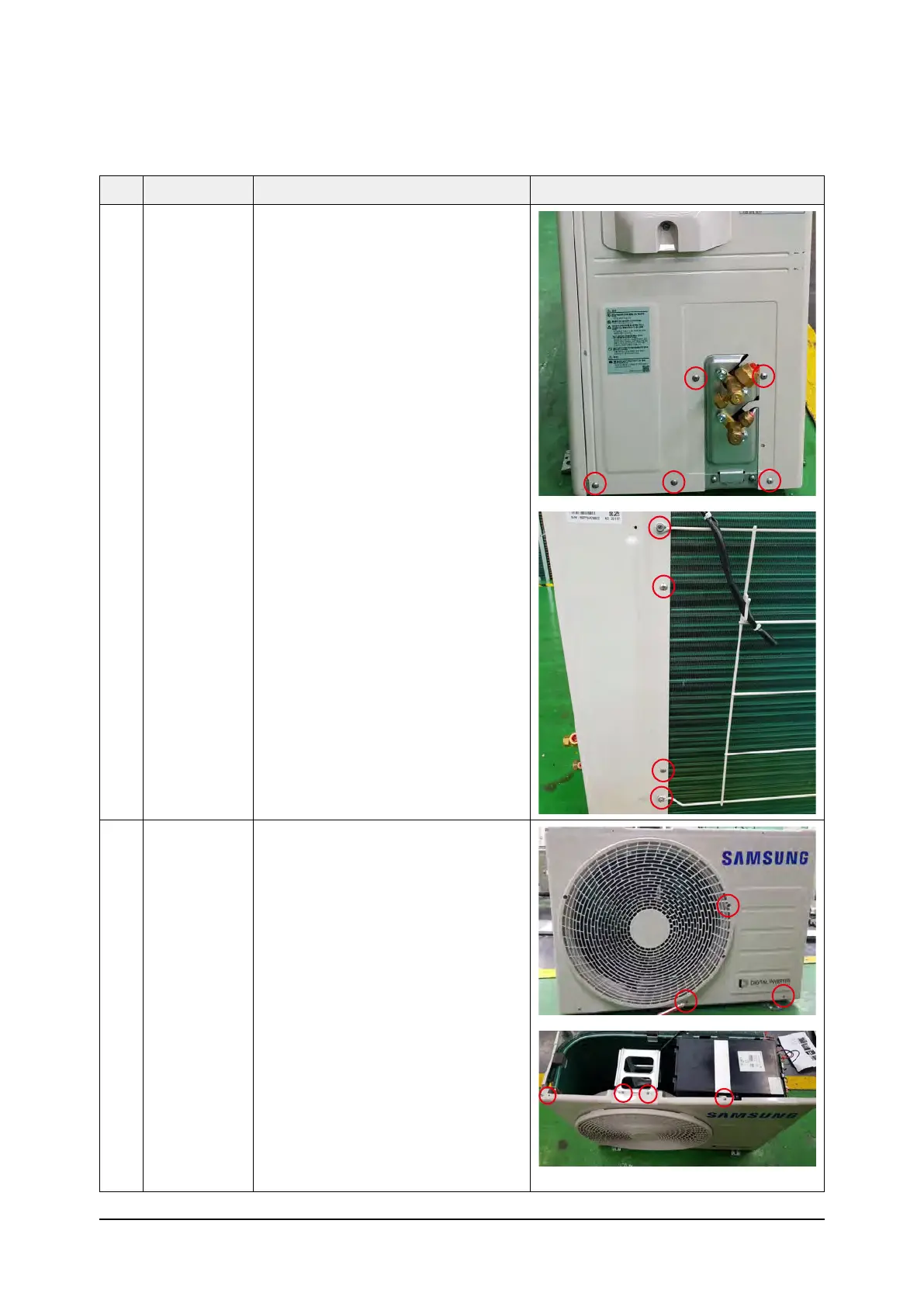

No Parts Procedure Remark

4 ASS’Y

CABINET SIDE

1) Unscrew and remove 9 screws on

Cabinet-side rh.

(Use + Screw Driver)

5 ASS’Y

CABINET

FRONT

1) Unscrew and remove 8 screws on Assy

Cabinet Front.

(Use + Screw Driver)
