Troubleshooting
Samsung Electronics 4-33
Yes

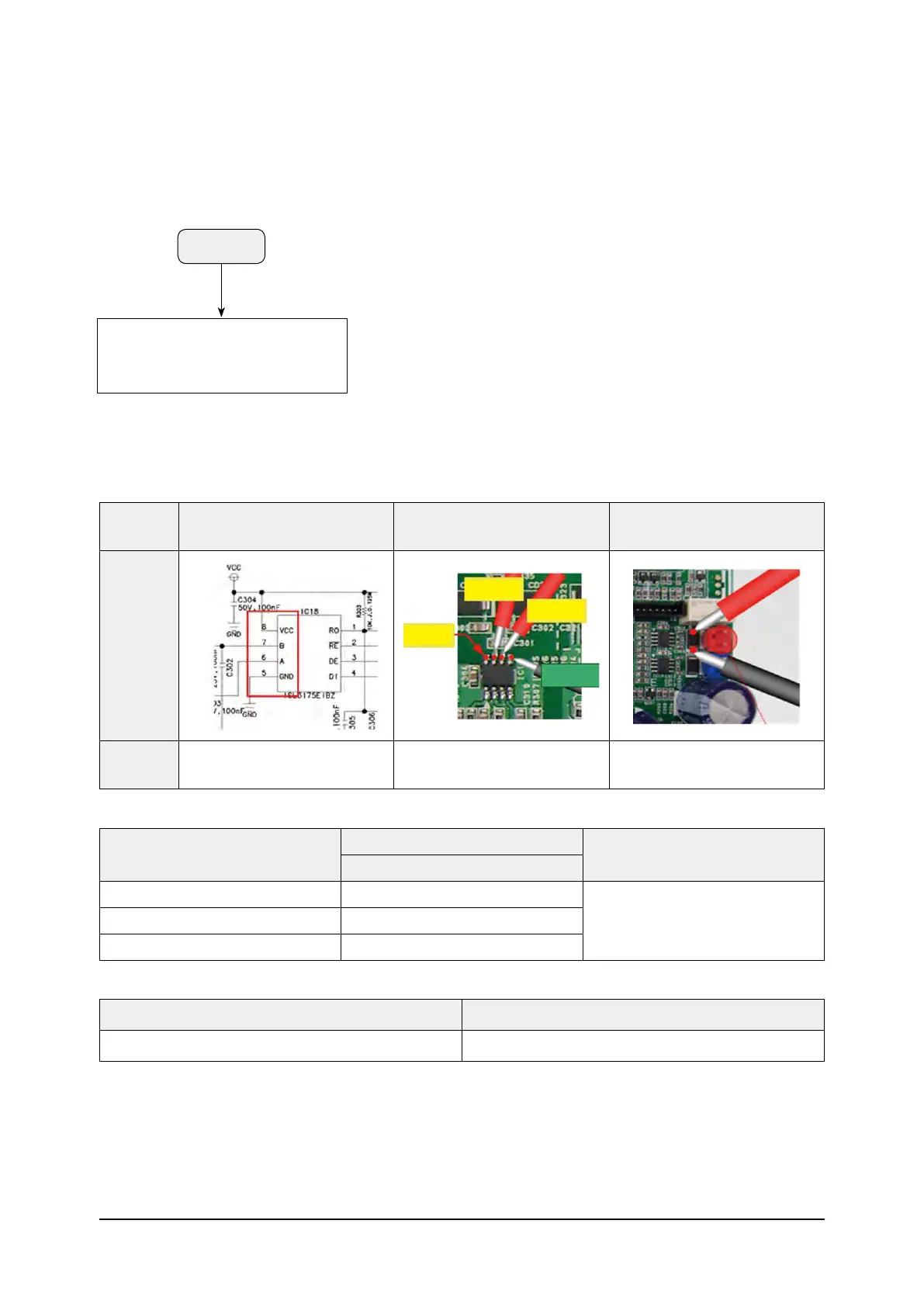

Indoor/outdoor communication error (1 min.) (Error Code: E202) (cont.)
Continue
Check the communication circuit of the Main
PCB of the outdoor unit.
1. Is there a fault in communication IC?
2. Is there a fault in TVS-Diode?
Measuring
Part
Communication IC Measuring Part
(Circuit Diagram)
Example of Measuring
Communication IC
Example of Measuring
TVS-Diode
Location
CommB(#7)
CommA(#6)
Vcc(#8)
GND(#5)
Measuring
Point
#5-GND, #6- Communication A, #7-
Communication B, #8-Vcc
Communication IC Measuring (Port)
Steady-state Measuring Value
Remark
COM 1(RED)
#6 - #5
Measuring after separating the communicatio
connection
#7 - #5
#8 - #5 4.7Vdc ~ 5.3Vdc
TVS-Diode Measuring Steady-state Measuring Value
Both ends of diode
To Next Page
