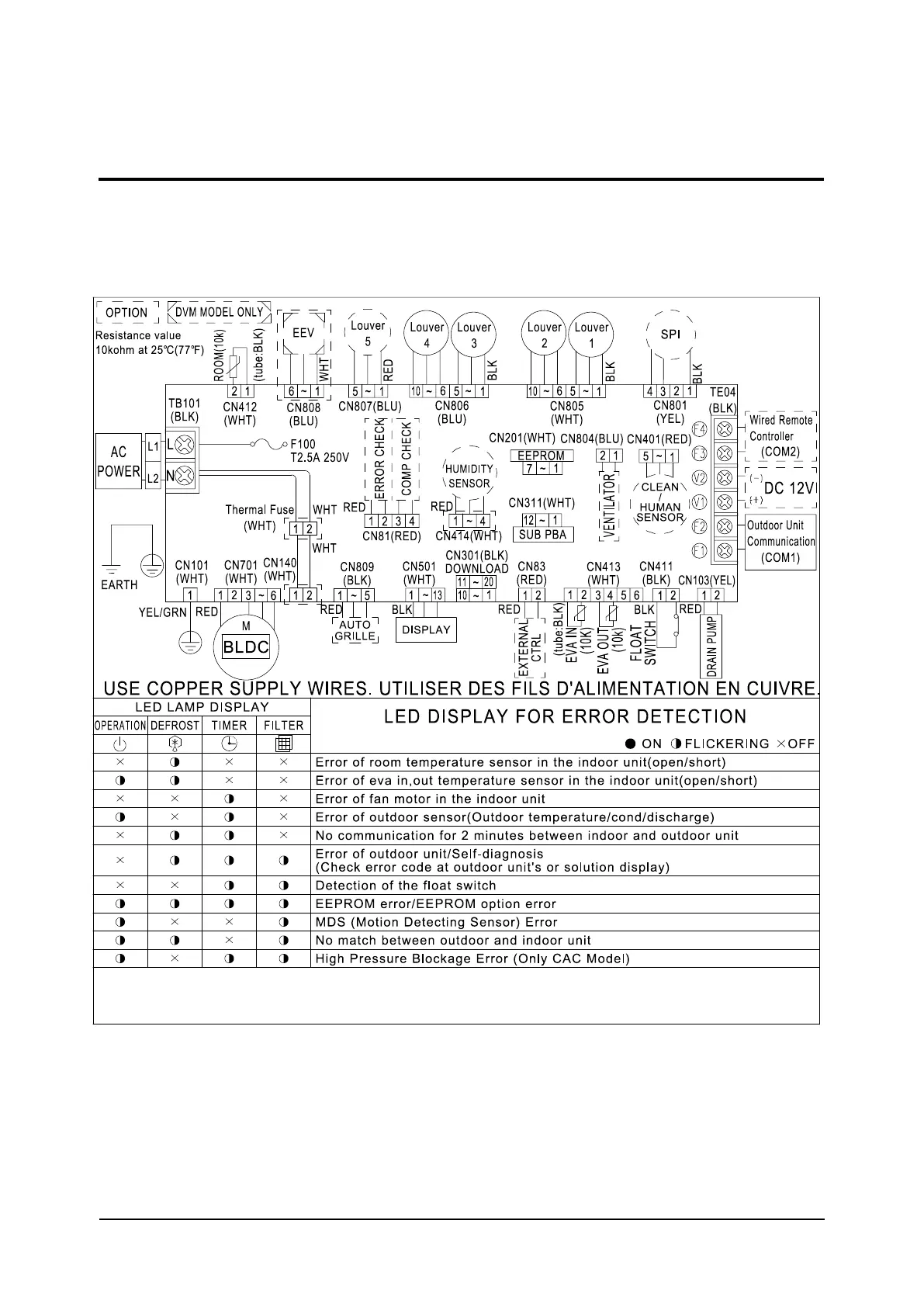

Wiring Diagram

6-2 Samsung Electronics

Indoor Unit (cont.)

This Document can not be used without Samsung’s authorization.

■ AC052/071/100/120/140RN4DKG
