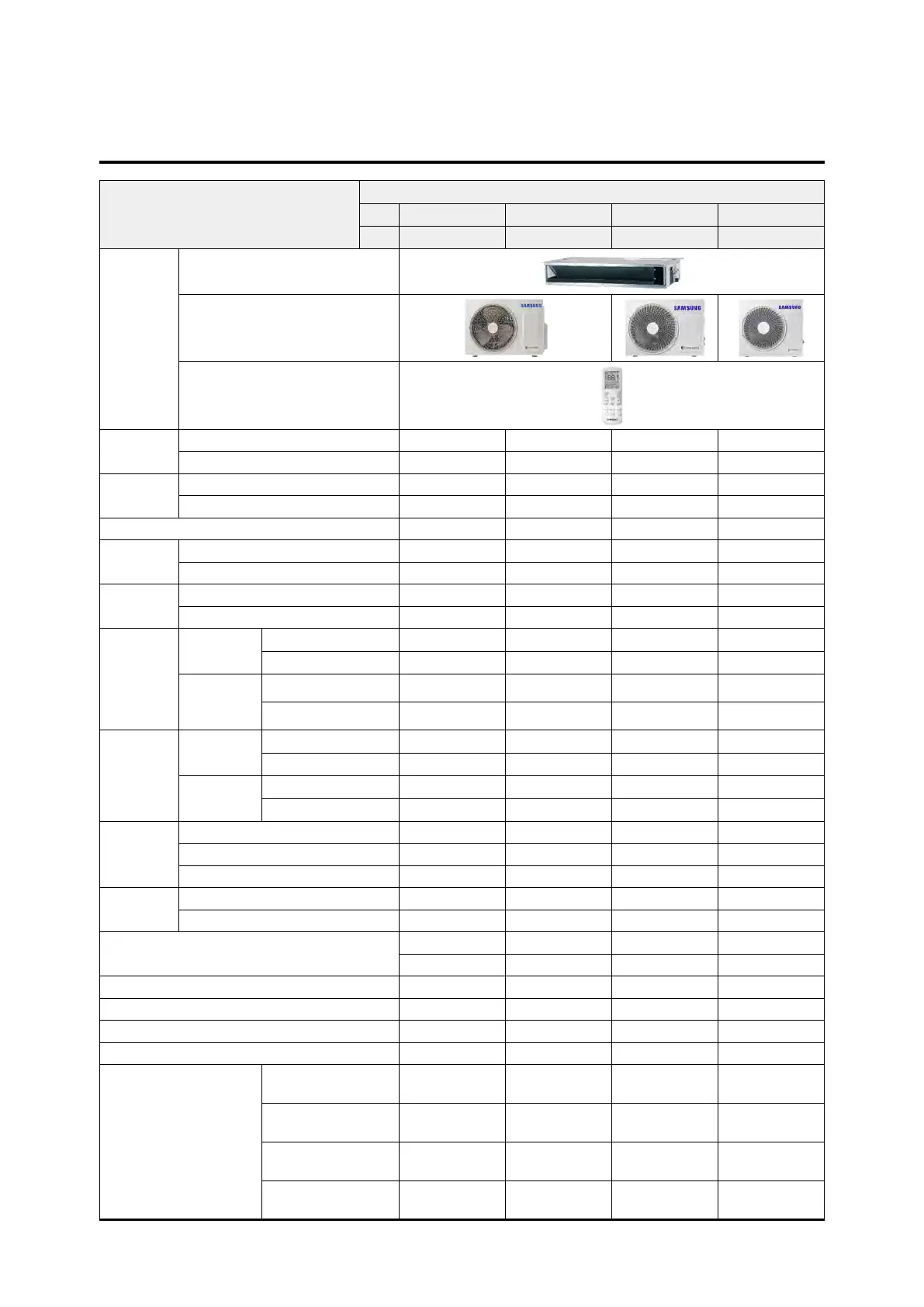

Product Specifications
2-30 Samsung Electronics
Model
LSP Duct
IN AC026RNLDKG/EU AC035RNLDKG/EU AC052RNLDKG/EU AC071RNLDKG/EU
OUT AC026RXADKG/EU AC035RXADKG/EU AC052RXADKG/EU AC071RXADKG/EU
Indoor Unit
Outdoor unit
Remote controller
Performance
cooling [W] 2.60 3.50 5.00 7.10
heating [W] 3.30 4.00 6.00 8.00
Power
Consumption
c
ooling [kW] 0.68 1.12 1.69 2.38
heating [kW] 0.87 1.21 1.74 2.38
Voltqage / Frequency [Ø, #, V, Hz] 1, 2, 220-240, 50 1, 2, 220-240, 50 1, 2, 220-240, 50 1, 2, 220-240, 50
Operating
Current
cooling [A] 3.6 5.4 7.7 10.5
heating [A] 4.5 5.8 7.8 10.4
Noise
indoor unit (C/H) [dBA] 40/40 40/40 45/45 47/47
outdoor unit (C/H) [dBA] 51/51 53/53 58/58 60/60
Size
net dimension
(W*H*D)
indoor unit [mm]
700 x 199 x 600 700 x 199 x 600 1100 x 200 x 450 1100 x 200 x 450
outdoor unit [mm]
790 x 548 x 285 790 x 548 x 285 880 x 638 x 310 880 x 798 x 310
shipping
dimension
(W*H*D)
indoor unit [mm]
951 x 280 x 709 951 x 280 x 709 1319 x 270 x 529 1319 x 270 x 529
outdoor unit [mm]
913 x 622 x 371 913 x 622 x 371 1023 x 742 x 413 1023 x 896 x 413
Weight
net weight
indoor unit [kg]
19.0 19.0 23.5 23.5
outdoor unit [kg]
32.5 32.5 43.0 51.0
shipping
weight
indoor unit [kg]
23.0 23.0 27.0 27.0
outdoor unit [kg]
35.5 35.5 46.5 55.0
Harness
Specification
i
ndoor fan motor DB31-00653A DB31-00653A DB31-00638A DB31-00638A
compressor UB9AK5090FER UB9AK5090FER UB9TK3150FE4 UB4TN8200FE4
outdoor fan motor DB31-00642C DB31-00642C DB31-00658D DB31-00579A
Designed
Pressure
high pressurep [Mpa] 4.1 4.1 4.1 4.1
low pressure [Mpa] 1.4 1.4 1.4 1.4
Refrigerant/Factory charging [g]
R-32 R-32 R-32 R-32
900 900 1200 1700
Additional refrigerant 0 0 15g/m over 10m 25g/m over 15m
Basic piping length [m] 5 5 5 5
Max.piping length [m] 20 20 30 50
max.level difference [m] 15 15 20 30
Option Code
Standard
01C17C-1C1914-
271A21-370000
01C17C-1C3936-
272328-370000
01C17C-1C1924-
27343C-370000
01C17C-1C59D0-
274750-370005
Installation 1
020000-100000-
200000-300000
020000-100000-
200000-300000
020000-100000-
200000-300000
020000-100000-
200000-300000
Cycle
030000-100000-
200000-300000
030000-100000-
200000-300000
030000-100000-
200000-300000
030000-100000-
200000-300000
Installation 2
050000-100000-
200000-300000
050000-100000-
200000-300000
050000-100000-
200000-300000
050000-100000-
200000-300000
