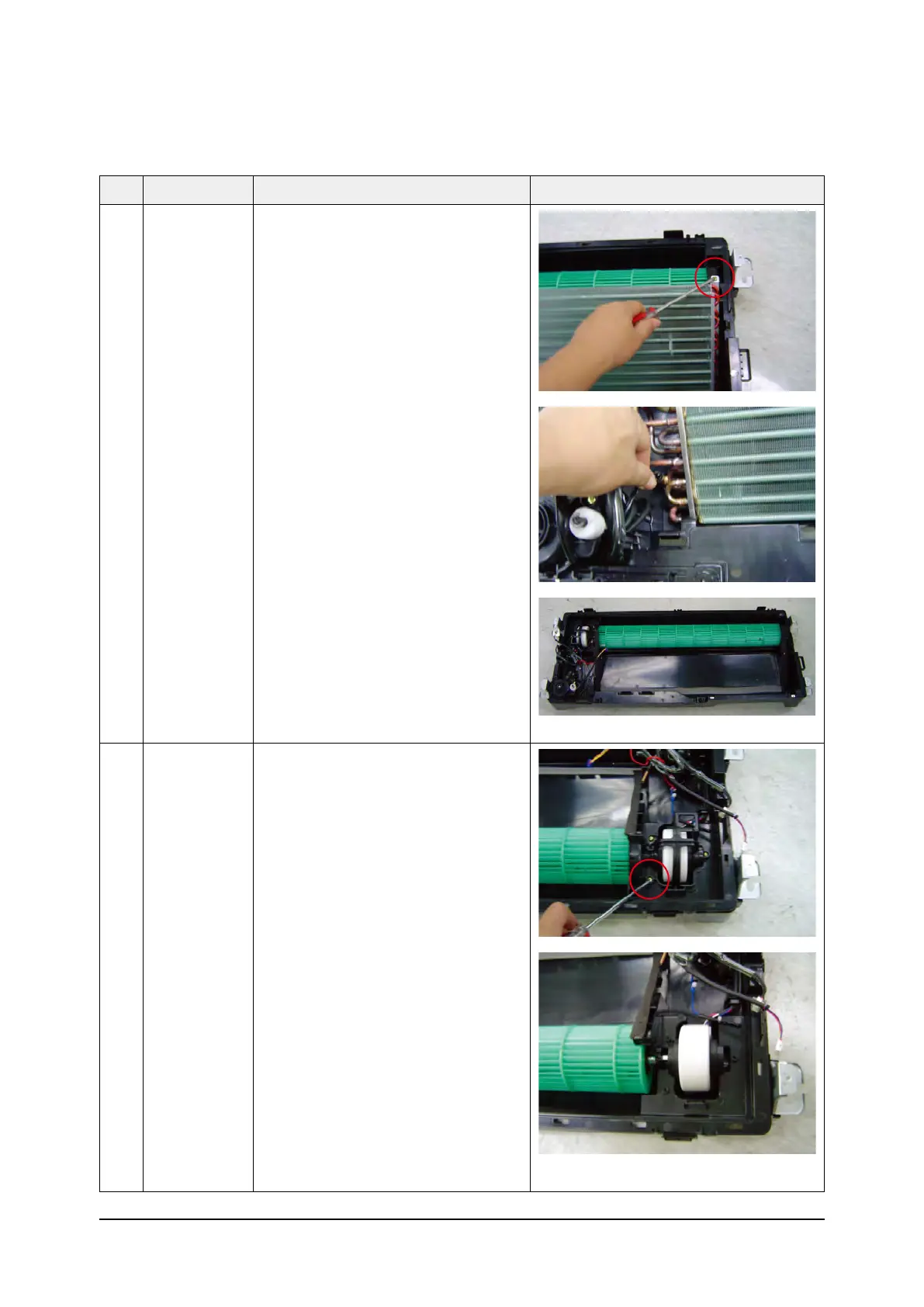

Disassembly and Reassembly
3-6 Samsung Electronics
No Parts Procedure Remark
3 Heat
Exchanger
1)
Undo fixing screw in the Heat Exchanger.
(Use +Screw Driver)
2) Separate an Indoor Sensor from the
Heat Exchanger.
3) Separate the Heat Exchanger from the
Indoor Unit.
4 Cross Fan 1) Undo 3 fixing screws on the Cover Fan
Motor.
(Use +Screw Driver)
2) Separate the Cover Fan Motor from the
Indoor Unit.
