CHECKING THE
FLOW RATE
A commissioning sheet is available for download on the Secon renewable website
www.seconrenewables.com
This should be filled in and returned to Samsung within 28 days of commissioning. Also, the unit
should be subject to an annual service by the installing contractor or another authorized service
company to meet the warranty conditions.
4

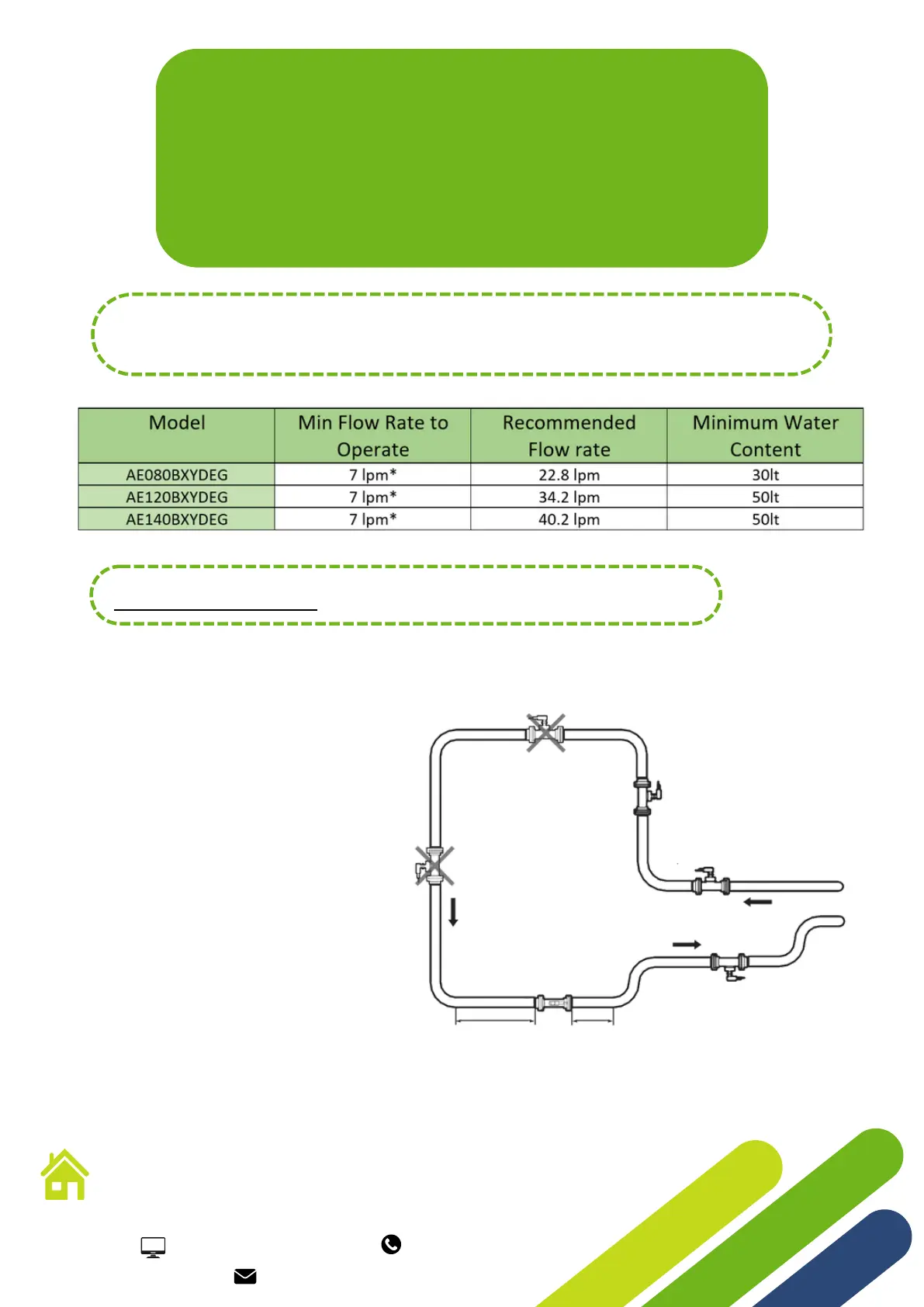

Part of the start-up process involves checking the water flow rate. In order for the unit to operate at
all then an absolute minimum flow rates must be met, but for correct operation as designed then a
water flow rate below must be observed below
A flow Sensor should be installed and can
be mounted
within 2m of the control unit.
The sensor should be mounted on straight
length of pipe with 10x the pipe diameter
up stream of the sensor and 5x the pipe
diameter downstream.
The sensor plugs directly to the MIM into
CSN 057
No danger due
to accumulation
of contaminants
Air bubbles goes
upstream
Possibility to drain-off
Possibility to bubble
min. 10 pipe in
diameter
min. 5 pipe in
diameter
