ENGLISH-41
02 INSTALLATION

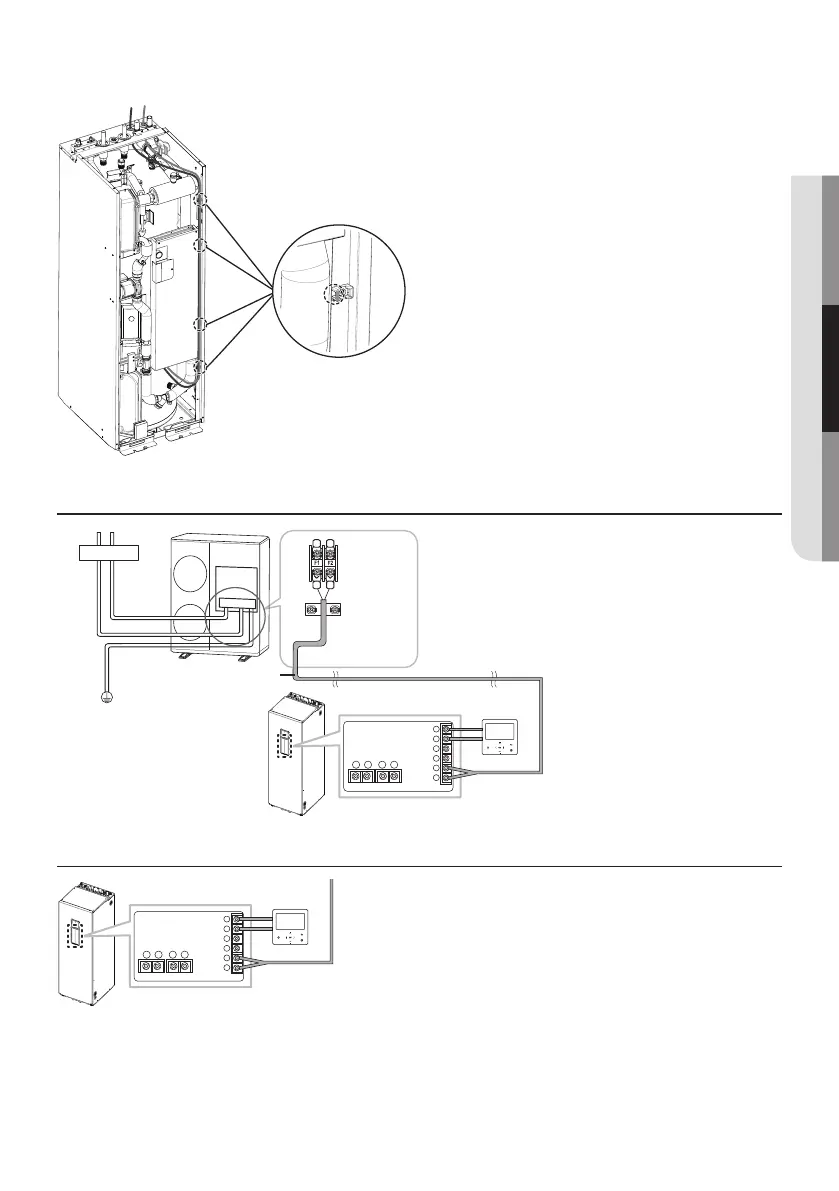

* When you use inlet hole through the cabinet top positions for power/communication wires, please x the wire by using
mount tie of the cabinet right.
When you x the wire by cable tie,
Use the left hole of mount tie.
2 wires for communication cable
TB-A
TB-C
TB-A1
1 2 1 2
F4
F3
V2
V1
F2
F1
CONTROL-KIT PBA
Earth
Communication cable between
indoor and outdoor units
Communication
cable
Hydro unit
Circuit breaker
Communication cable connection
TB-A
TB-C
TB-A1
1 2 1 2
F4
F3
V2
V1
F2
F1
CONTROL-KIT PBA
To Next Page
