ENGLISH-42

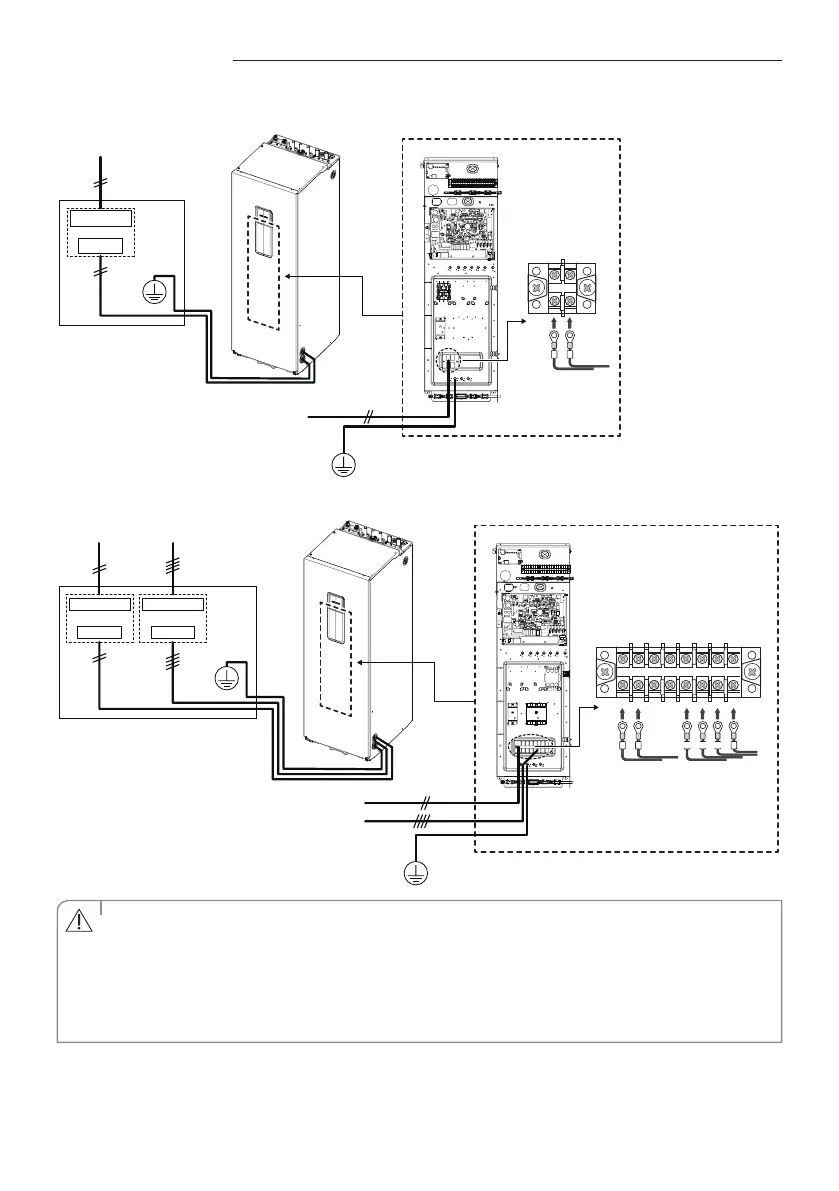

Wiring work
1. 1 phase product
L N
L N
, 220-240Vac
Distribution board
1 phase AC
POWER-IN
220~240V~
MCCB + ELB
ELCB
grounding
grounding
1 phase AC POWER
or
2. 3 phase product
L N L N L3(T) N
L1(R) L2(S)
N
L N L1(R) L2(S) L3(T)
, 220-240Vac
, 380-415Vac
Distribution board
1 phase AC
POWER-IN
220~240V~
3 phase AC
POWER-IN
380~415V~
MCCB + ELB MCCB + ELB
ELCB ELCB
grounding
grounding
1 phse AC POWER
3 phse AC POWER
or or
If the supply cable is damaged, it must be replaced by a special cable or assembly available from the
manufacturer or installer.
Circuit Breaker (ELCB, ELB, MCCB etc.) for outdoor and indoor units shall be installed by installers because they
are not sub-parts in the units. But you don't need to install for hydro unit (Built-in ELCB).
It cause damage to chassis, PCB parts if the main power is not connected correctly. You should make certain that R,
S, T is connected correctly before turning on the main power. (3 phase models only)
CAUTION
ELCB : Earth leakage circuit breaker
ELB : Earth leakage breaker
MCCB : Molded case circuit breaker
