Samsung AE200RNWSEG Installation Manual

ENGLISH-47
02 INSTALLATION

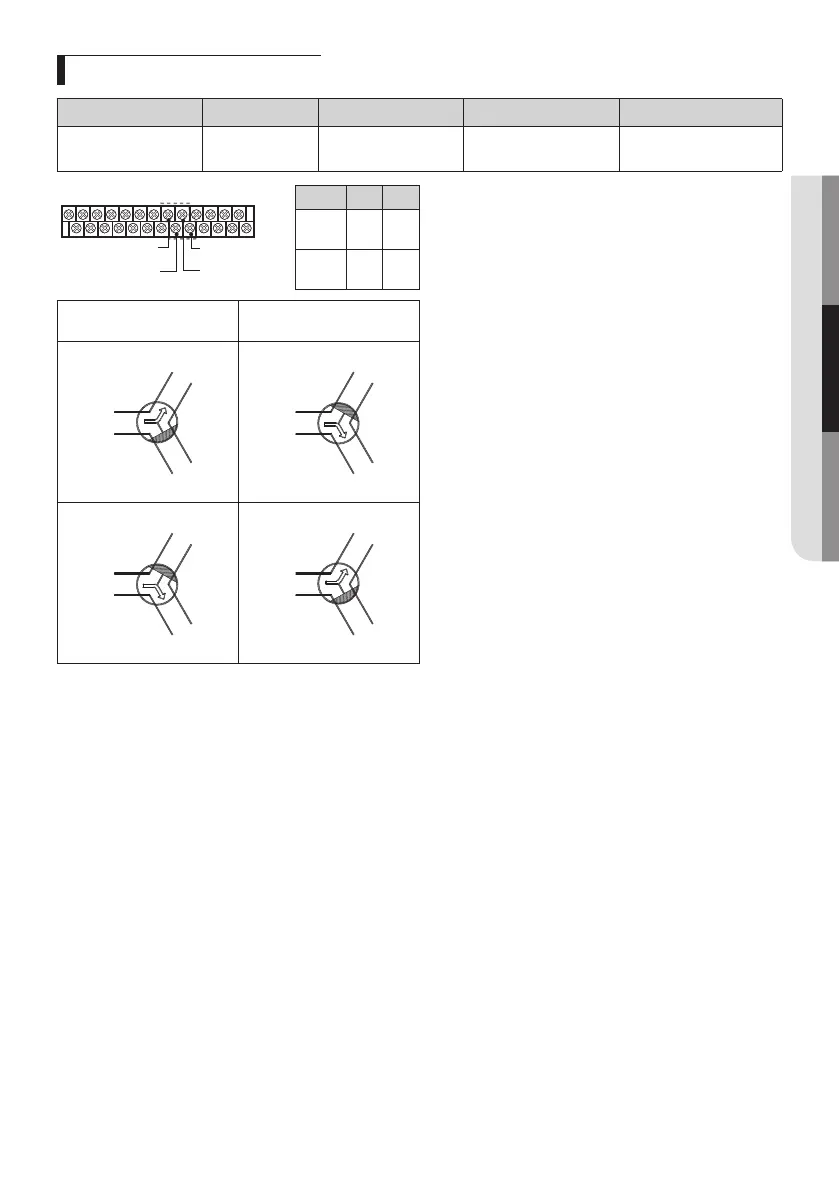

Connection of the 3-way valve
Description No. of wires Mini. / Max. current Thickness Supply Scope
Diverting type 3way
valve
4 10mA / 50mA
> 0.75mm
2
, H05RN-F or
H07RN-F
Field supply (220-240V~,
Input)
B17 : 3WAY (L1)
B18 : 3WAY (L2)
B16 : Live (L)
B15 : Neutral (N)
Status L1 L2
3-way diverting valve for water tank
 When cooling operating mode, oor heating loops
will be closed.
 220-240V~
1. Before the installation, hydro unit should be turned
o.
2. Using the appropriate equipment to correct position
of terminal block as shown on the diagram.
3. Make sure what type of 3 way V/V you use.
A
(Initial)
OFF ON
B ON OFF
Field Setting Valve (#3071) “0”
Floor heating as default
Field Setting Valve (#3071) “1”
DHW tank as default
FLOOR
HEATING
A
DHW
TANK
3WAY V/V
HYDRO
UNIT
FLOOR
HEATING
A
DHW
TANK
3WAY V/V
HYDRO
UNIT
FLOOR
HEATING
B
DHW
TANK
3WAY V/V
HYDRO
UNIT
FLOOR
HEATING
B
DHW
TANK
3WAY V/V
HYDRO
UNIT
