Disassembly and Reassembly
3-22 Samsung Electronics
[Reference Sheet]

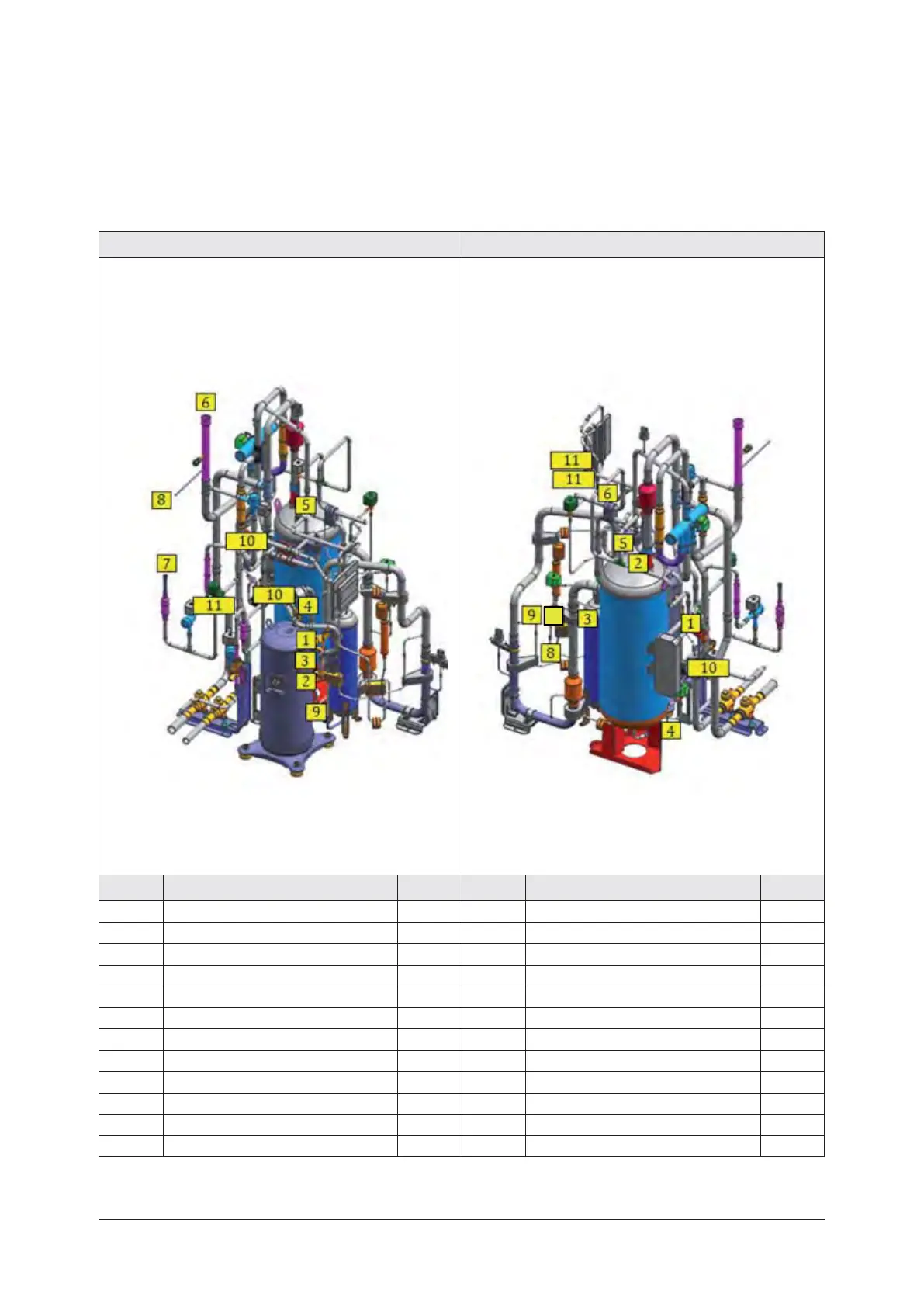

Pipe Welding Position
غ
AM140FXVAGR,AM140JXV
6
GR
Front Welding Parts Rear Welding Parts
No. Welding Position Q'ty No. Welding Position Q'ty
1 Comp+Suction 1 1
Subcooler+EVI Bypass
1
2 Comp+Discharge 1 2
Accum+4Way
1
3 Comp+Vapor Injection 1 3
Accum+Suction
1
4 Discharge+Oil Sepa 1 4
Accum+Accum Oil Valve
1
5 4Way+Oil Sepa Out 1 5
Accum+EVI Bypass
1
6 4Way+Cond In 1 6
Vapor Injection+EVI Bypass
1
7 Expansion+Cond Out 1 7
Hot Gas Valve+Suction
1
8 Pinch Pipe 1 8
Hot Gas
Valve
+Oil Sepa Out
1
9 Accum Oil Return Valve+Suction 1 9
Oil Return+Suction
1
10 Subcooler+Subcooler In 1 10
LQD Valve+Subcooler In
1
11 Expansion+Subcooler 1
11
Cooling+Subcooler In
2
12 LQD Ball Valve+Subcooler In 1
To Next Page
