31
ENGLISH

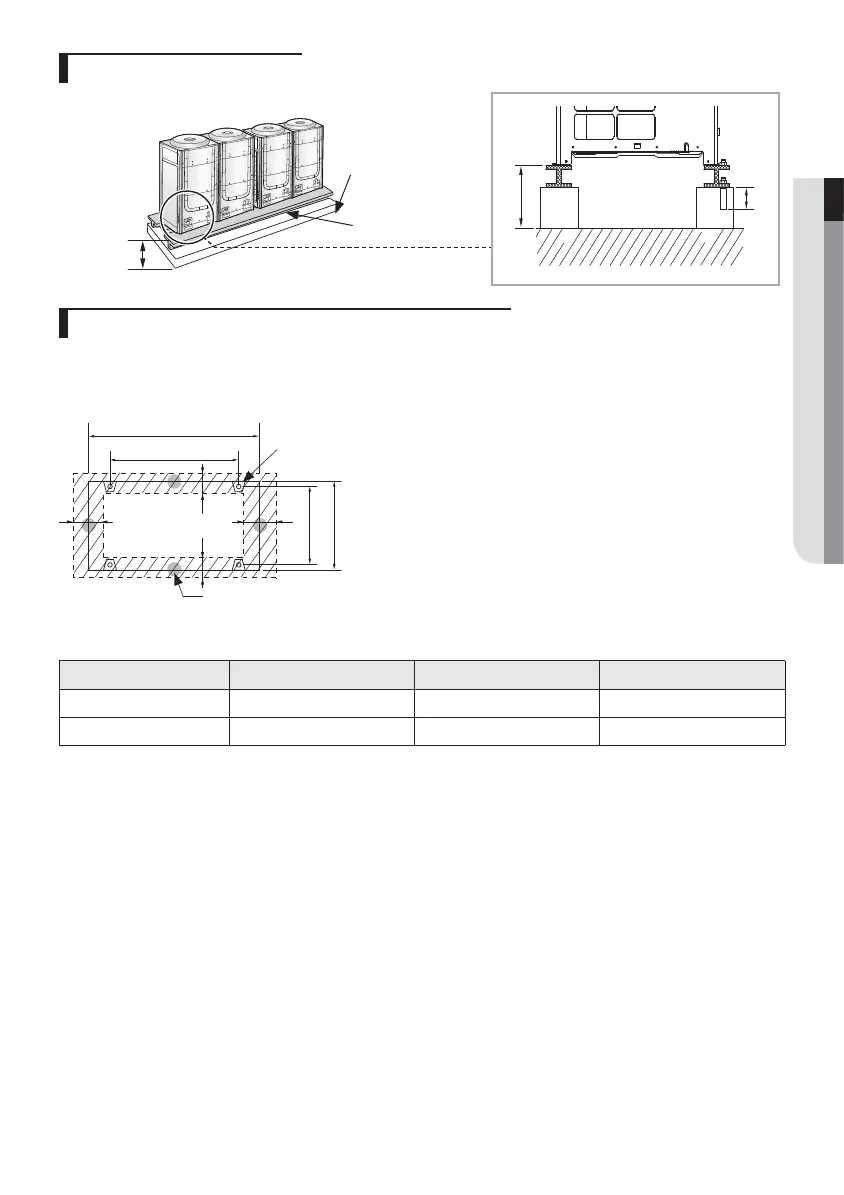

Outdoor unit installation
Over 200 mm
Over 50 mm
Base ground
H beam or anti-
vibration frame
Over 200 mm
Outdoor unit base mount and anchor bolt position
(Unit : mm)
A
B
54
761
803
54
Outdoor unit - Anti-vibration
frame (4-Ø 12)
Anti-vibration - Base ground
(4-Ø 18)
(Unit : mm)
Aɇϑϑѣʀɇϩͱ DVM S Small Type DVM S Large A Type DVM S Large B type
A 880 1,295 1,295
B 740 1,150 1,150
࢜
Refer to the blueprints in technical data book to make a holes for connecting the anti-vibration pad.
