ENGLISH

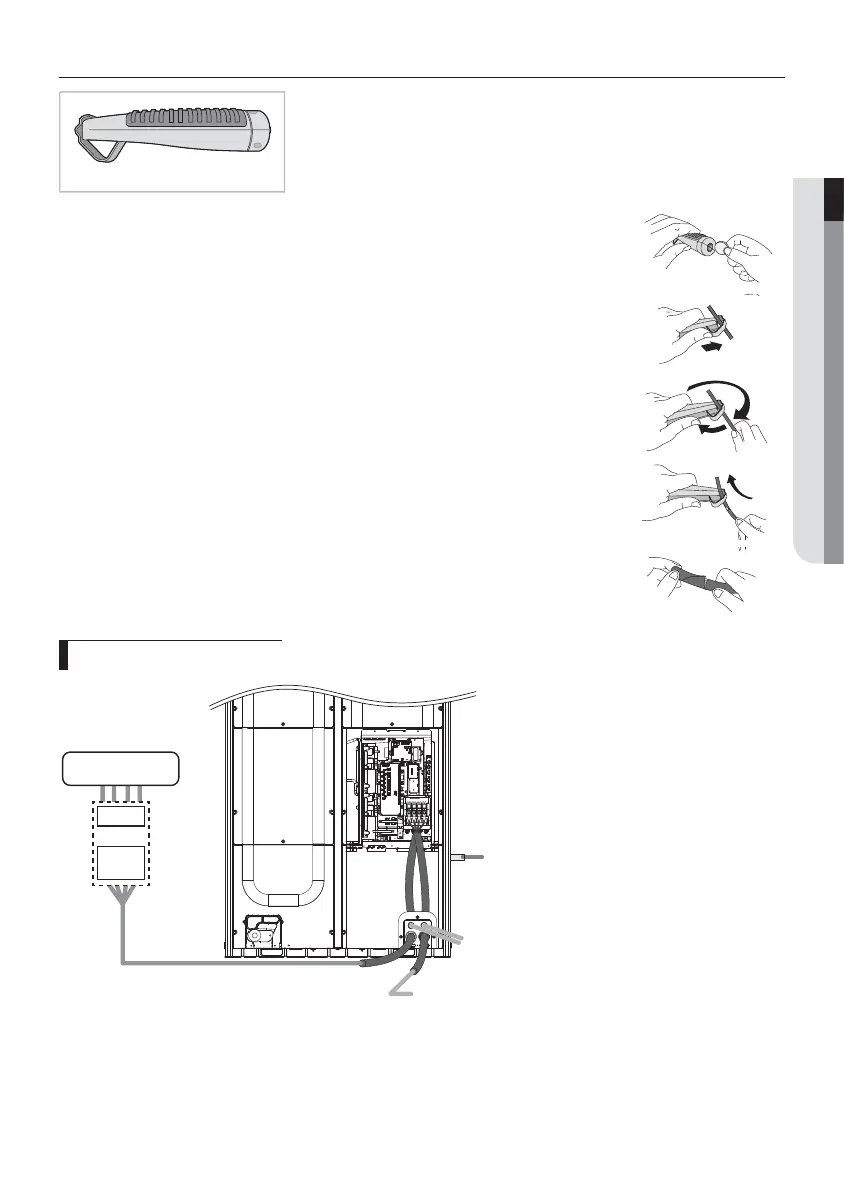

Examples of how to use the cable striper
<Cable striper>
1. Adjust the blade position by coin. (Controller is at the bottom side of the tool.) Fix
the blade position according to the outer sheath thickness of the power cable.
2. Fix the power cable and tool by using the hook at the top side of the tool.
3. Cut out the outer sheath of the power cable by revolving the tool in the direction of
the arrow, two or three times.
4. At this situation, cut out the outer sheath of the power cable by moving the tool
toward the direction of the arrow.
5. Slightly bend the wire and pull out the cut part of the outer sheath.
Fixing the power cable
3 phase 4 wires
࣑ߥߪߢࣛߦߣߧǤ࣒
Sub unit communication
cable
ƊЇɵЇϩߥΧ˵ɇϑʪߥߪߢࣛߦߣߧǤ
Sub unit communication cable
ELCB
MCCB+
ELB
or
