82

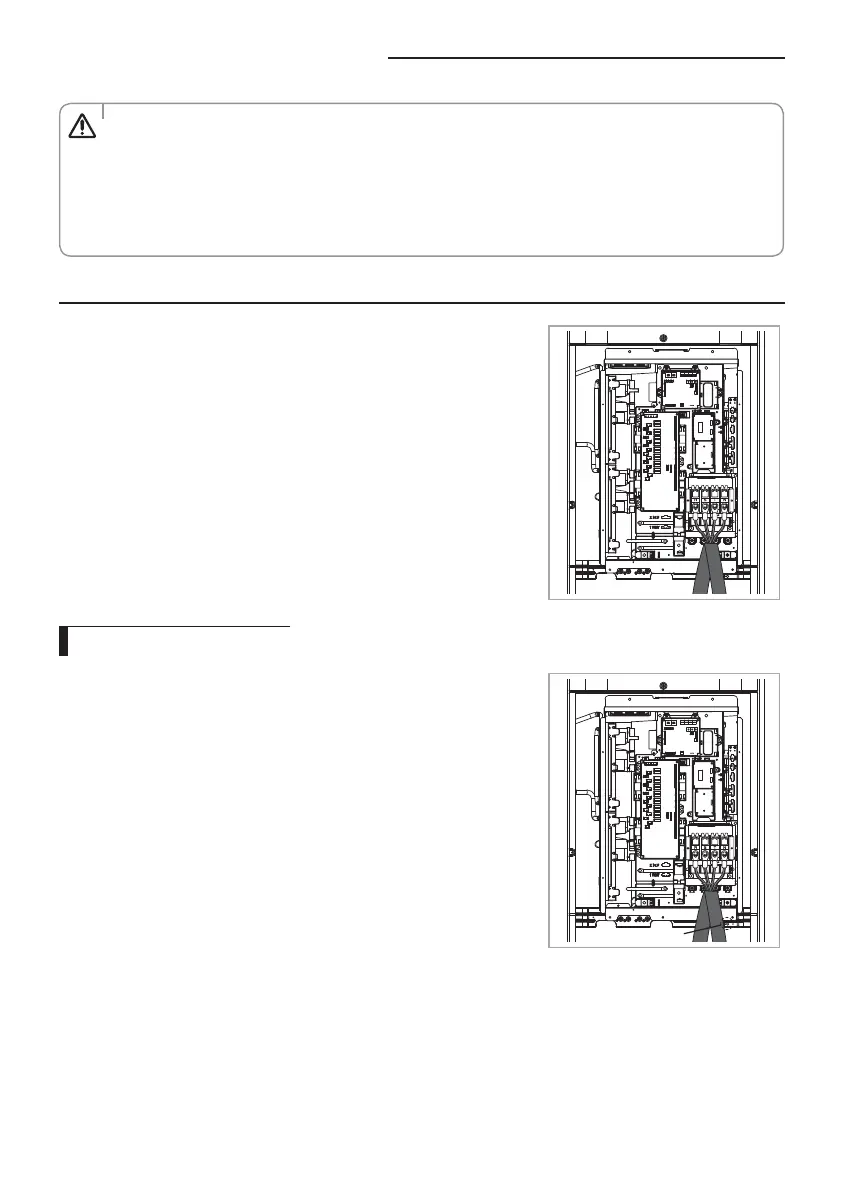

Electrical wiring work
࡛Do not let the power cable come into contact with the pipes inside the outdoor unit. If the power
supply cable touches the pipes, the vibration of the compressor is transferred to the pipes and can
ʒɇɇ˝ʪϩ˵ʪΧͱиʪθϑЇΧΧцʀɇɵʪϑͱθΧΧʪϑࡥʀθʪɇϩ˝ϩ˵ʪʒɇ˝ʪθͱ˙ѣθʪͱθʪуΧͱϑͱ࢏
࡛Make sure that the place where the sheath of power supply cable is removed is inside the power
supply box. If it is impossible, you should connect the protection tube for power cable to the power
supply box.
࡛After arranging the power cable into the power supply box, tighten the cover.
CAUTION
Connect the ring terminal of 3 phase cable
1. Cut the power cable to an appropriate length and connect it with the
solderless terminal.
2. After connecting the power cable to the terminal as seen in the
Їϑϩθɇϩͱࡥѣуϩиϩ˵ʀɇɵʪϩʪ࢏
3. Fix the housing, which has an insulator, to the terminal board.
Fixing the ground cable
 Connect the ground cable to the grounding hole inside the power
supply box.
Grounding
