NO. Parts Procedure Remark
6 FAN MOTOR
&
CROSS FAN

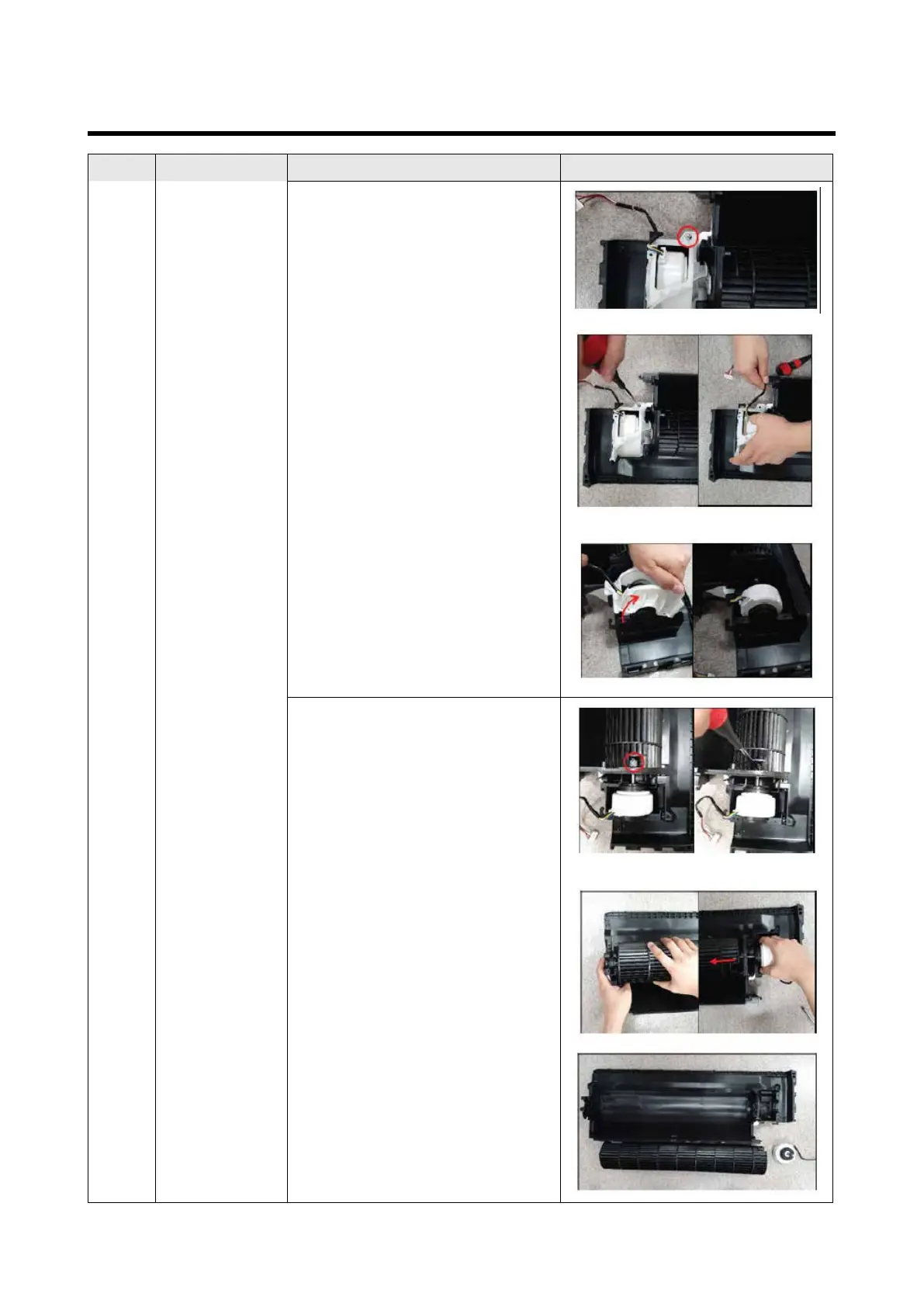

28) Unfasten a screw on the
COVER MOTER.
(Use (+) Screw Driver.)
29) Unwind the Moter Wire.
30)Detach the COVER MOTER.
31) Unfasten a screw of the
CROSS FAN a little.
(Use (+) Screw Driver.)
32)Raise up the CROSS
FAN of the left side and
pull out from the Moter.
