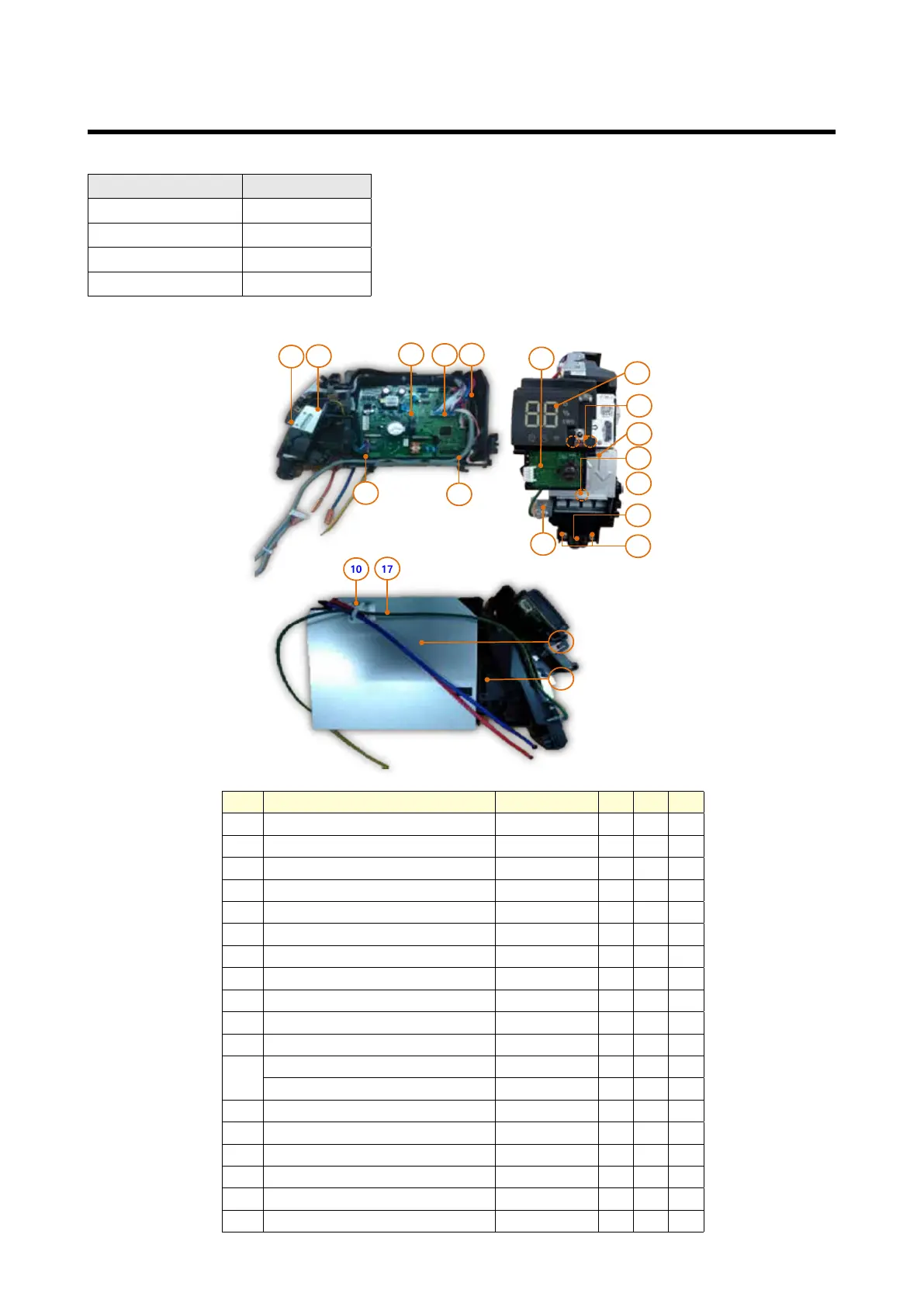

Samsung AR09TXFYAWKNEU - ASSY CONTROL; 5-1 ASSY KIT CODE DB92-04845 B,F

34
5-1 ASSY KIT CODE DB92-04845B ,F
Model ASSY KIT
AR09TXFYAWKNEU DB92-04845B
AR12TXFYAWKNEU DB92-04845B
AR09TXHZAWKNEU DB92-04845F
AR12TXHZAWKNEU DB92-04845F
5. ASSY CONTROL
No NAME CODE B F unit
1 CASE CONTROL-IN DB61-07432A 1 1 EA
2 PLATE CONTROL-LF DB61-07431A 1 1 EA
3 PLATE CONTROL-LOW DB61-07428A 1 1 EA
4 PLATE CONTROL-UP DB61-07429A 1 1 EA
5 PLATE CONTROL-SUB DB61-07427A 1 1 EA
6 HOLDER-WIRE DB61-05871A 1 1 EA
7 SCREW-TAPPING 6002-001163 1 1 EA
8 SCREW-TAPPING 6002-000213 2 2 EA
9 SCREW-SPECIAL 6009-001001 3 3 EA
10 CABLE TIE 6501-001075 1 1 EA
11 TERMINAL BLOCK_4P_GLOBAL DB37-00033A 1 1 EA
12 ASSY PCB DISPLAY_88 DB92-04833A 0 1 EA
ASSY PCB DISPLAY_88_WIFI DB92-04833B 1 0 EA
14 SENSOR TEMP DB32-00277A 1 1 EA
15 ASSY CONNECTOR WIRE-POWER DB93-17169A 1 1 EA
16 ASSY CONNECTOR WIRE-COMM DB93-17055B 1 1 EA
17 ASSY CONNECTOR WIRE-EARTH DB93-14245D 1 1 EA
19 ASSY CONNECTOR WIRE-FJM DB93-17178A 1 1 EA
20 ASSY PCB MAIN_DLX_GLOBAL DB92-04839A 1 1 EA
1
2
10
17
5
6
8
11
9
9
9
12
13
3
4
14
16
15
20
23
