Samsung AR09TXFYAWKNEU - 4-2 Outdoor Unit Disassembly

28

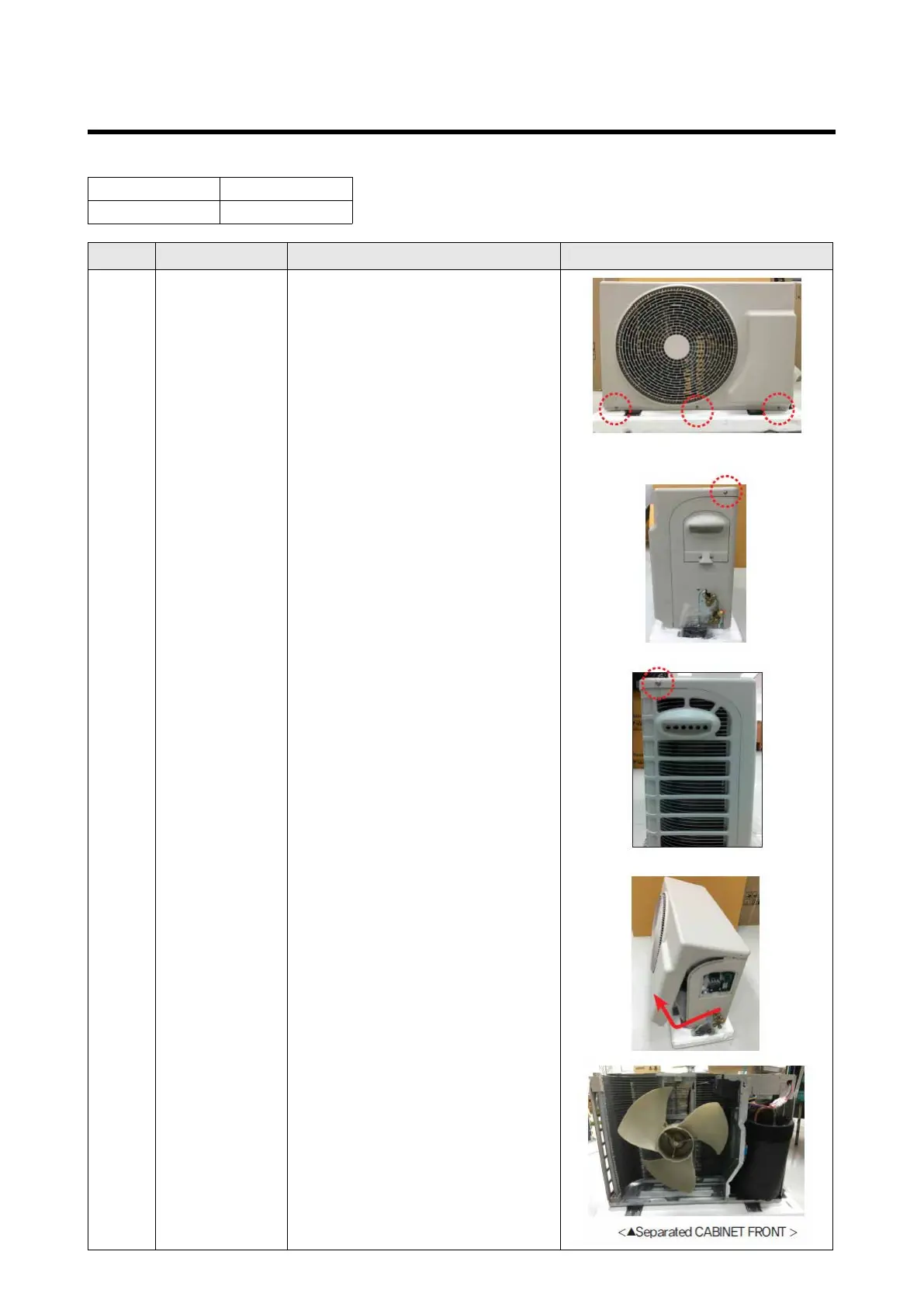

4-2. Outdoor Unit (N-V2MD)
AR09TXFYAWKXEU AR09TXHZAWKXEU
AR12TXFYAWKXEU AR12TXHZAWKXEU
NO. Parts Procedure Remark
1 Common Work 1) First, stop the operation of the air
conditioner, please cut off the supply
of power.
2) Please separate outdoor after
loosen the bottom screw 3EA of the
front three places. (+ screw driver
Use)
3) Please separate the positions of
the sides screw 1EA (+ screw driver
Use)
4) Please remove the portions of the
side screw 1. (+ screw driver Use)
5) Please separate lifting up and
grab the ends of the lower end of
the CABINET FRONT.
