6-4 Samsung Electronics

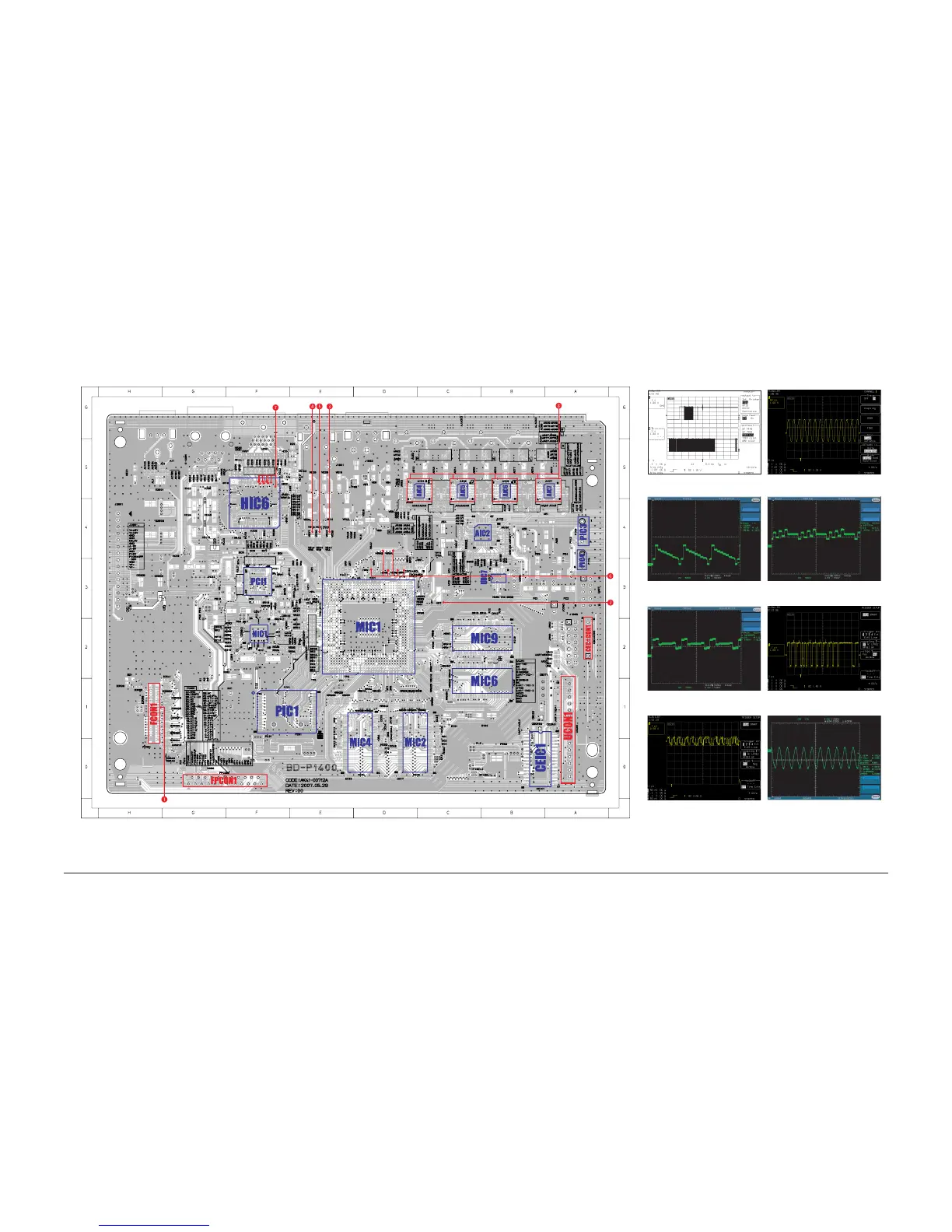

PCB Diagrams
q FCON1 PIN 25
t Pr(Color-bar)
Pin (MIC1-VE26)
r Pb(Color-bar)
Pin (MIC1-VE27)
e Y(Color-bar)
Pin (MIC1-VE28)
y Digital Video signal
MIC1 (HRN1~HRN6)
w UX7 _CLOCK SIGNAL (27MHz)
u HDMI OUTPUT DATA
HIC6 (pin30,31,33,34,36,37,39,40)
i ANALOG AUDIO
DATA(AIC4,5,6,7)
