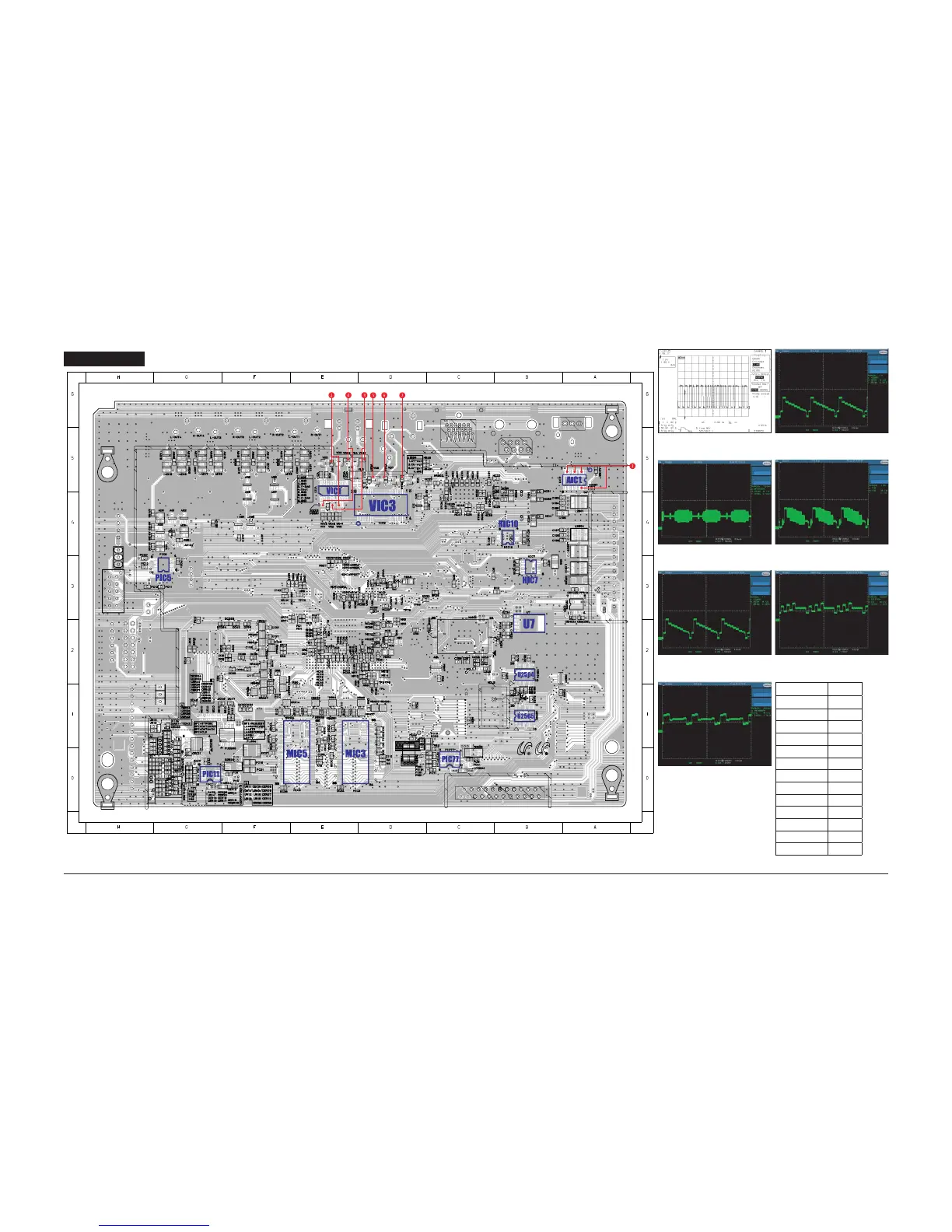

PCB Diagrams
q DIGITAL AUDIO DATA
AIC1 (Pin2,4,6,13)
w Y(Color-bar)
Pin (MIC1-VC2,VIC1-VR7)
e C(Color-bar)
Pin (MIC1-VC3,VIC1-VR21)
r CVBS(Color-bar)
Pin (MIC1-VC4,VIC1-VR22)
LOC.NO X-Y
AIC1 A-5
U2505 B-1
U2504 B-2
U7 B-2
HIC7 B-3
HIC10 B-4
PIC77 C-1
MIC3 D-0
VIC3 D-4
MIC5 E-0
VIC1 E-4
PIC11 G-0
PIC5 G-3
CONDUCTOR SIDE
u Pr(Color-bar)
Pin-VR46
y Pb(Color-bar)
Pin-VR44
t Y(Color-bar)
Pin-VR37
