Alignment & Adjustment
3-10 Samsung Electronics
3-4 Service Adjustment

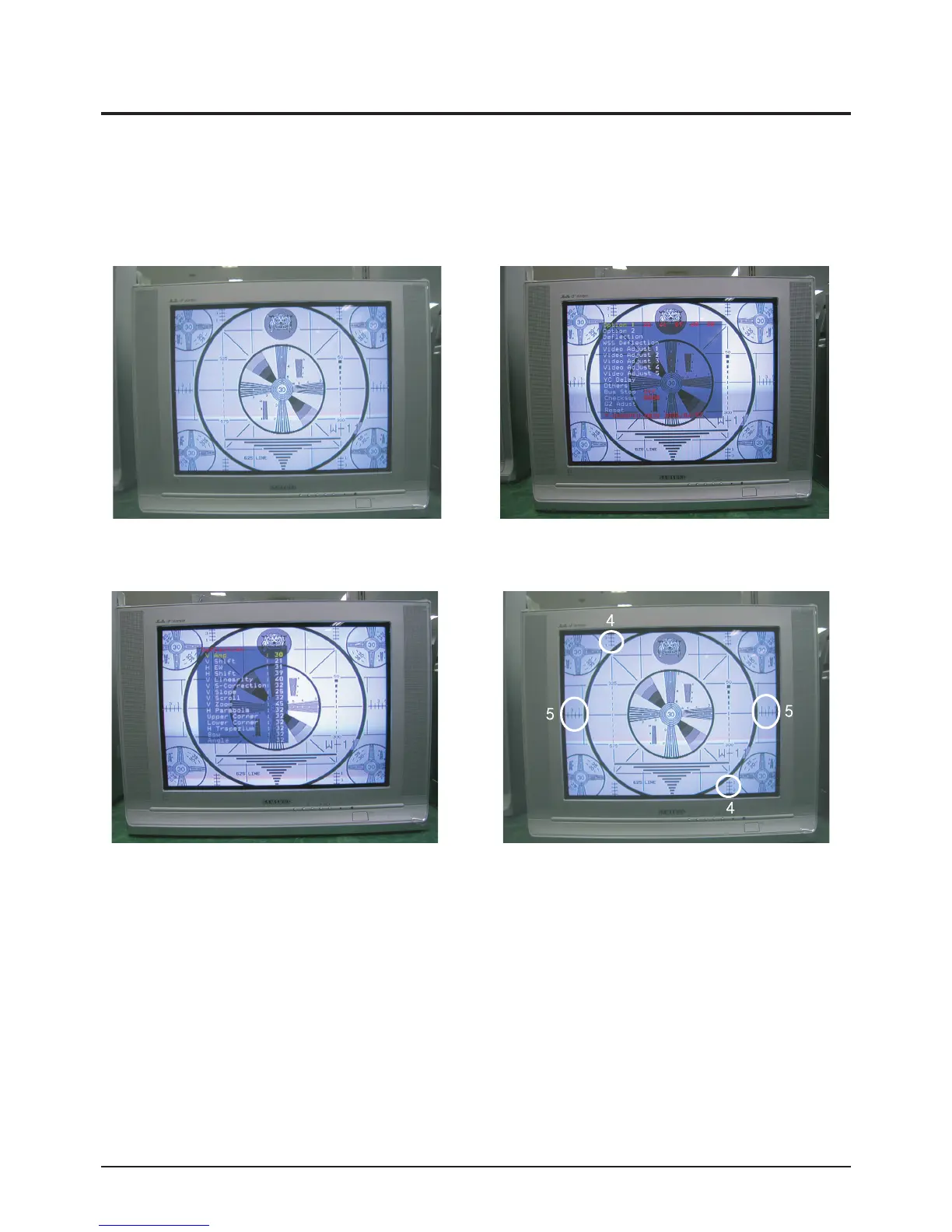

3-4-1 Adjusting the Picture Size
■ Since the K16A chassis includes a deflection adjustment of the Factory Data, adjustments must be performed according to the
following procedures when replacing the Main Board.
1. Display the Lion pattern.
2. Press "Power Off → Mute → 1 → 8 → 2 → Power On"
using the remote control and enter Factory Mode.
3. Enter Deflection Mode. 4. Adjust the V-AMP, V-SHIFT, H-AMP and H-SHIFT items so
that the width becomes 5 and the height becomes 4.
