Samsung DVD-V2000 - Front Panel Overview; Front Panel Controls

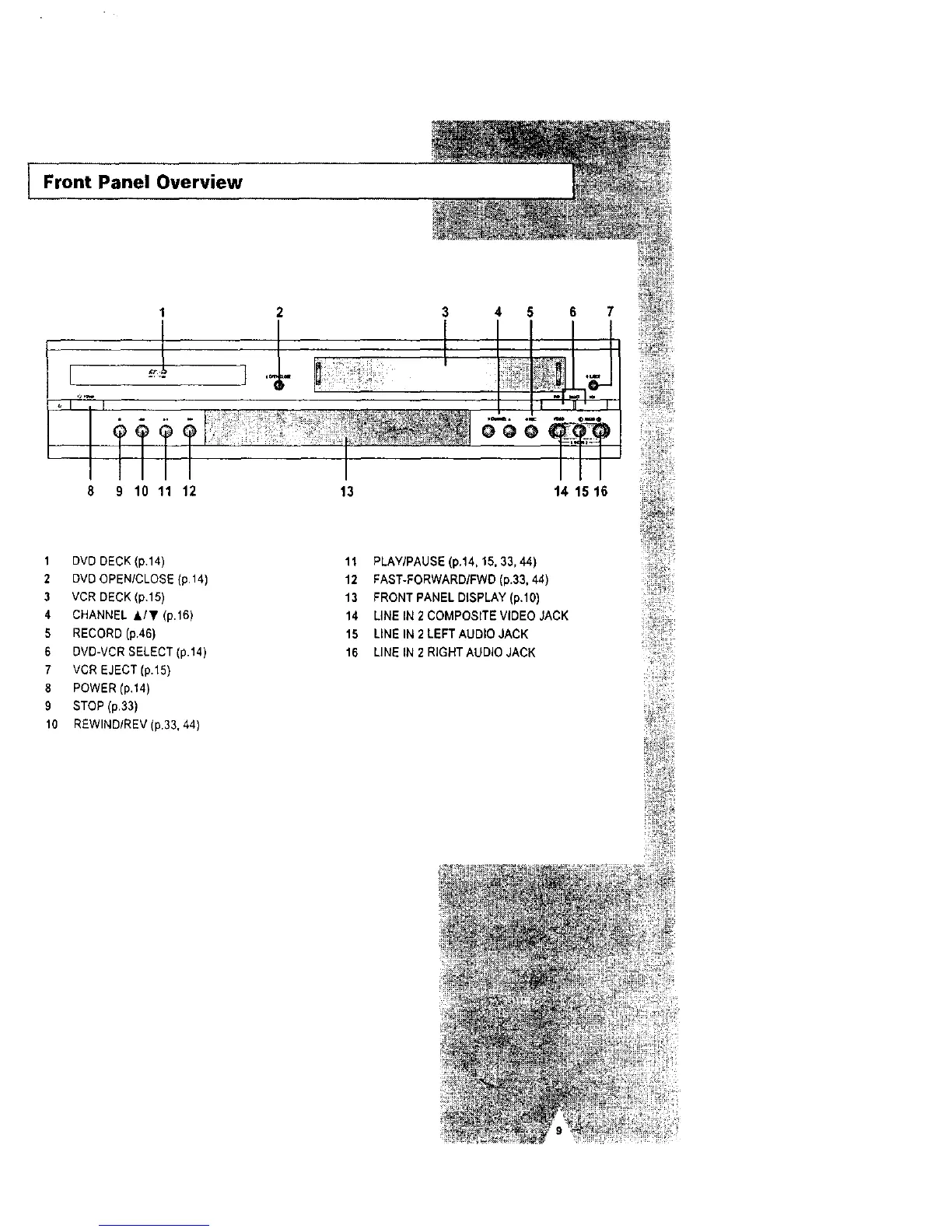

Front Panel Overview
1 2 4 5 6 7
8 9 10 11 12
13
14 15 16
1 DVD DECK (p.14)
2 DVD OPEN/CLOSE (p.14)
3 VCR DECK (p.15)
4 CHANNEL &/y (p.16)
5 RECORD (p.46)
6 DVD-VCR SELECT (p.14)
7 VCR EJECT (p.15)
8 POWER (p.14)
9 STOP (p.33)
10 REWIND/REV(p.33, 44)
11 PLAY/PAUSE (p.14, 15, 33,44)
12 FAST-FORWARD/FWD (p.33, 44)
13 FRONT PANEL DISPLAY (p.10)
14 LINE IN 2 COMPOSITE VIDEO JACK
15 UNE IN 2 LEFT AUDIO JACK
t6 LINE IN 2 RIGHTAUDIO JACK
