Samsung Galaxy E5 Duos - Page 130

Appendix
130
3

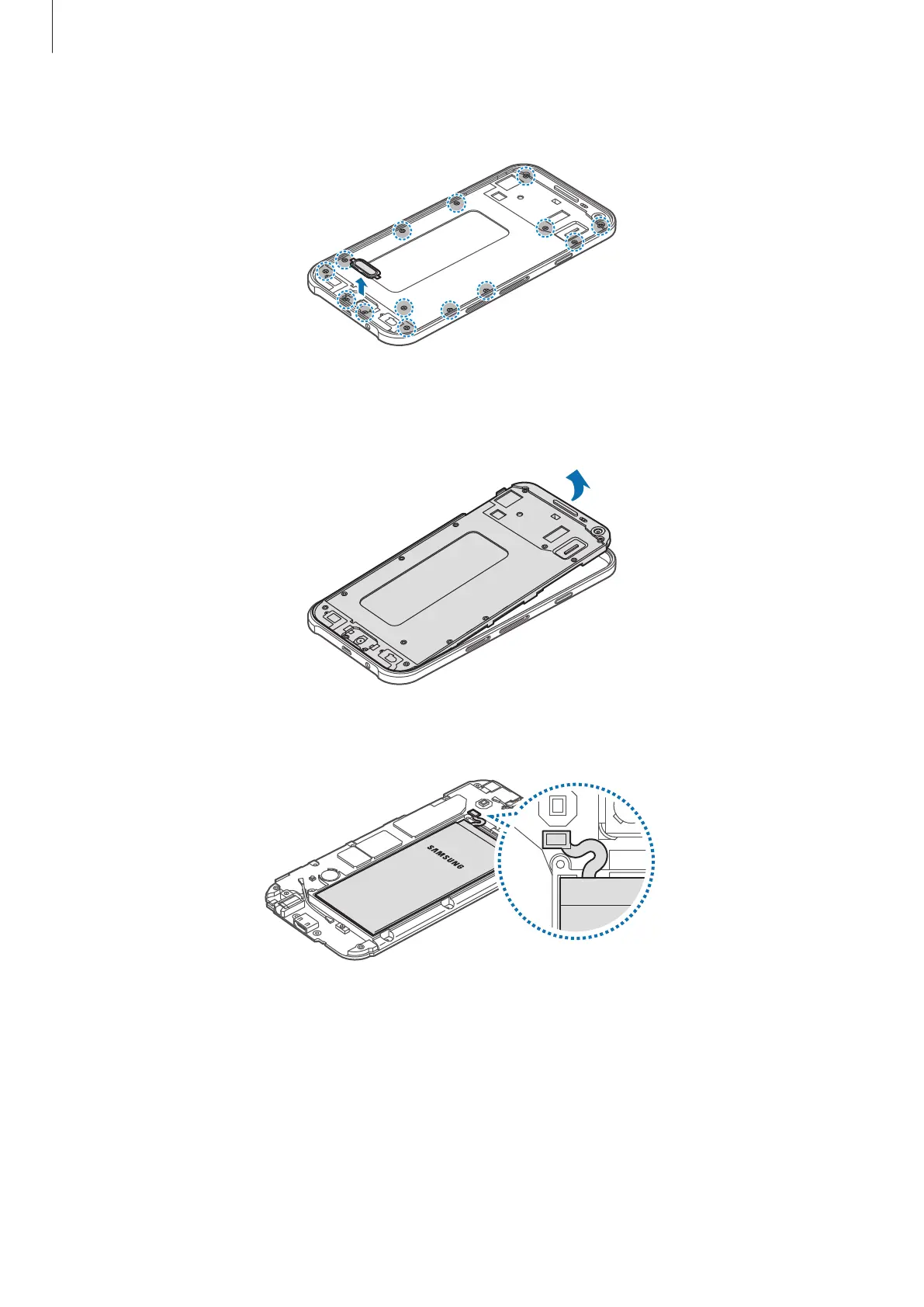

Remove the Home button, and then loosen and remove the screws.
4
Remove the circuit board by lifting it out of the case using an opening tool, then put the
case aside and place the circuit board face down on a flat work surface.
5
Disconnect the battery connector as shown in the image below.
