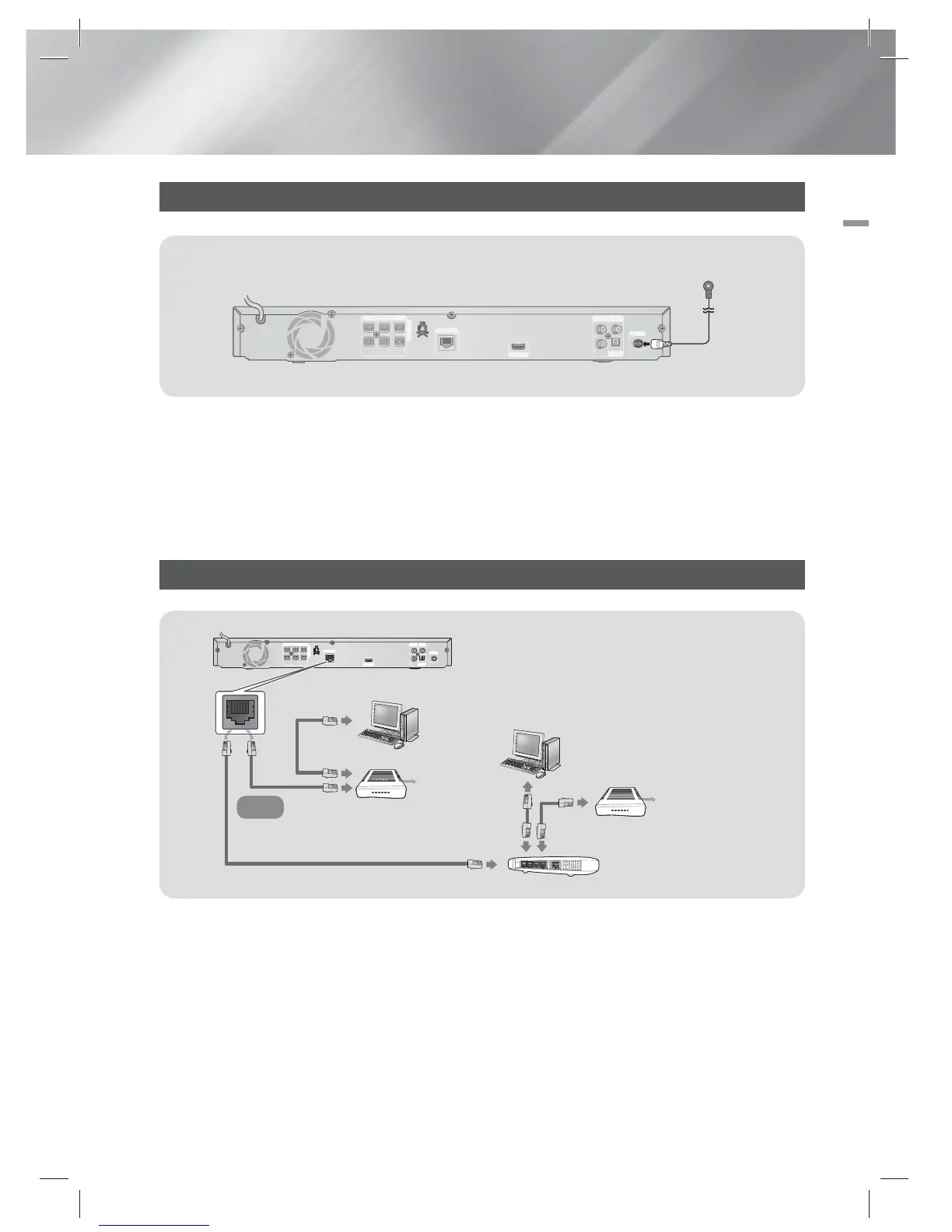

Connecting the FM Antenna
HDMI OUT
AUX
IN
VIDEO
OUT
OPTICAL
DIGITAL
AUDIO IN
IMPEDANCE : 3
SPEAKERS OUT
CENTER
SUBWOOFER
FRONT L SURROUND L
FRONT
R
SURROUND
R
L
R
LAN
HDMI OUT
AUX
IN
VIDEO
OUT
OPTICAL
DIGITAL
AUDIO IN
IMPEDANCE : 3

SPEAKERS OUT
CENTER
SUBWOOFER
FRONT
L
SURROUND
L
FRONT
R
SURROUND
R
L
R
LAN
FM ANT
FM Antenna (supplied)
1 . Connect the FM antenna supplied to the FM ANTENNA Jack.
2 . Slowly move the antenna wire around until you find a location where reception is good, then fasten it
to a wall or other rigid surface.
|
NOTE |

This product does not receive AM broadcasts.
Connecting to a Network Router
| NOTE |

Internet access to Samsung’s software update server may not be allowed, depending on the router you use or your ISP’s
policy. For more information, contact your ISP (Internet Service Provider).

DSL users, please use a router to make a network connection.

For the AllShare function, a PC must be connected in the network as shown in the figure.
HDMI OUT
AUX
IN
VIDEO
OUT
OPTICAL
DIGITAL
AUDIO IN
FM ANT
IMPEDANCE : 3
SPEAKERS OUT
CENTER
SUBWOOFER
FRONT L SURROUND L
FRONT
R
SURROUND
R
L
R
LAN
Broadband
service
Broadband
service
Broadband
modem
Router
Or
Broadband modem
(with integrated router)
