CONNECTING THE WIRELESS SUBWOOFER
The Subwoofer's linking ID is preset at the factory and the main unit and sub should link (connect wirelessly)
automatically when main unit is turned on. If the link indicator does not light when main unit and subwoofer are
turned on, please set the ID by following the process below.
▪ Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
▪ If the main unit is powered off, the wireless subwoofer will be the standby mode and the STANDBY
LED and LINK LED on the upper side will come on.
▪ If you use a device that uses the same frequency (5.2/5.8 GHz) near the system, interference may
cause some sound interruption.
▪ The transmission distance of the wireless signal between the main unit and sub is about 33 ft., but
may vary depending on your operating environment. If a steel-concrete or metallic wall is between the
main unit and the wireless subwoofer, the system may not operate at all, because the wireless signal
cannot penetrate metal.
▪ If the main unit doesn't make a wireless connection, follow steps 1-5 above to retry the connection
between the main unit and wireless subwoofer.
▪ The wireless receiving antenna is built into the wireless subwoofer. Keep the unit away from water
and moisture.
▪ For optimal listening performance, make sure that the area around the wireless subwoofer location
is clear of any obstructions.

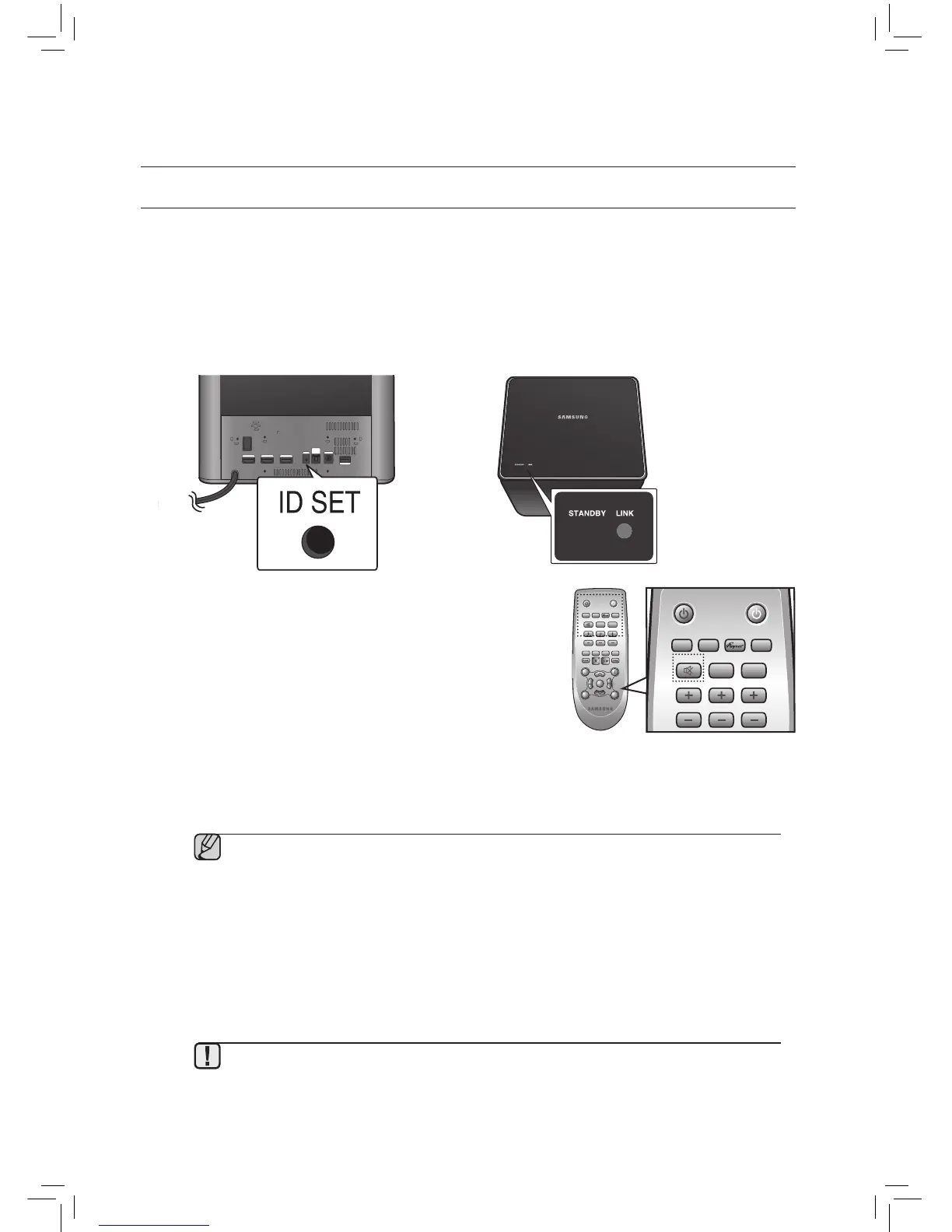

1. Plug the power cords of the main unit and subwoofer into an AC power supply.
2. Press the ID SET button on the back of the subwoofer with a small, pointed object for 5 seconds.
• The STANDBY indicator is turned off and the LINK indicator (Blue LED) blinks quickly.
STANDBY
LINK
HDMI IN 1 HDMI IN 2 HDMI OUT
ID SET
DIGITAL
AUDIO IN
(OPTICAL)
AUX IN
U S B
ON
OFF
HDMI IN 1 HDMI IN 2 HDMI OUT
ID SET
DIGITAL
AUDIO IN
(OPTICAL)
AUX IN
U S B
ON
OFF
POWER TV POWER
SAT MUTE SMART
VOLUME S/W LEVEL AUDIO SYNC
SAT
SOURCE
SOUND SPEAKER
DIMMER
AUTO POWER
TV INFOTV SOURCE
TV VOL TV VOL
TV CH
TV CH
TV PRE-CH
TV EXIT
DRCREPEAT
3D SOUND
VOLUME
EFFECT
TV
MUTE
POWER TV POWER
SAT MUTE SMART
VOLUME S/W LEVEL AUDIO SYNC
SAT
SOURCE
SOUND SPEAKER
DIMMER
AUTO POWER
TV INFOTV SOURCE
TV VOL TV VOL
TV CH
TV CH
TV PRE-CH
TV EXIT
DRCREPEAT
3D SOUND
VOLUME
EFFECT
TV
MUTE
3. While the main unit is powered off ( STANDBY mode),
press SAT MUTE on the remote control for 5 seconds.
4. The ID SET message appears on the main unit’s DISPLAY.
5. To finalize the link, turn the main unit’s power on while the
subwoofer’s Blue LED blinks.
• The Link indicator (blue LED) on the subwoofer is turned on.
• The main unit and the subwoofer are now linked (connected).
• You can enjoy better sound from the wireless subwoofer by
selecting the sound effect. (See page 25)
