Samsung HW-S61T User Manual

ENG - 10

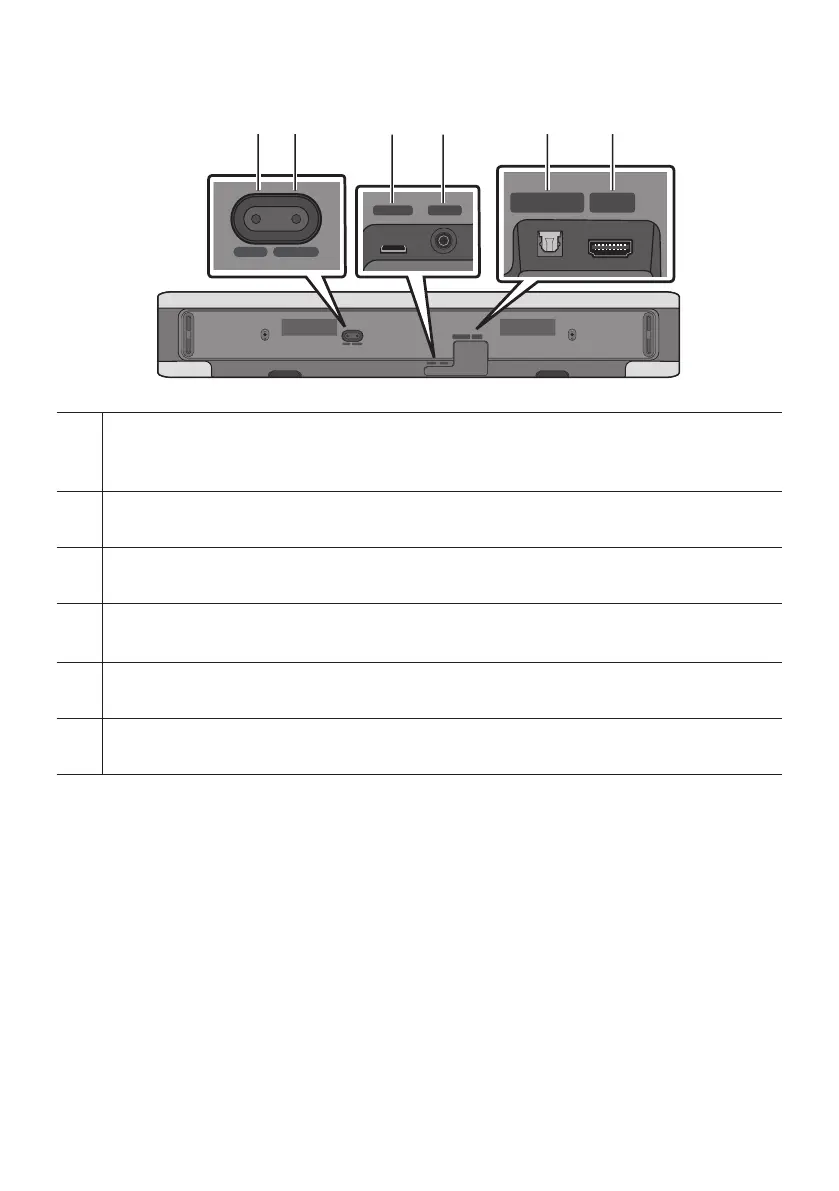

Bottom Panel of the Soundbar
SERVICE DC 19V
HDMI
(ARC)
DIGITAL AUDIO IN
(OPTICAL)
ID SET NETWORK
SERVICE DC 19V
HDMI
(ARC)
DIGITAL AUDIO IN
(OPTICAL)
SERVICE DC 19V
HDMI OUT
(TV-ARC)
DIGITAL AUDIO IN
(OPTICAL)
DIGITAL AUDIO IN
(OPTICAL)
ID SET NETWORK
SERVICE DC 19V
HDMI
(ARC)
DIGITAL AUDIO IN
(OPTICAL)
ID SET NETWORK
SERVICE DC 19V
HDMI
(ARC)
DIGITAL AUDIO IN
(OPTICAL)
SERVICE DC 19V
HDMI OUT
(TV-ARC)
DIGITAL AUDIO IN
(OPTICAL)
DIGITAL AUDIO IN
(OPTICAL)
ID SET NETWORK
SERVICE DC 19V
HDMI
(ARC)
DIGITAL AUDIO IN
(OPTICAL)
ID SET NETWORK
SERVICE DC 19V
HDMI
(ARC)
DIGITAL AUDIO IN
(OPTICAL)
SERVICE DC 19V
HDMI OUT
(TV-ARC)
DIGITAL AUDIO IN
(OPTICAL)
DIGITAL AUDIO IN
(OPTICAL)
ID SET NETWORK
SERVICE DC 19V
HDMI
(ARC)
DIGITAL AUDIO IN
(OPTICAL)
ID SET NETWORK
SERVICE DC 19V
HDMI
(ARC)
DIGITAL AUDIO IN
(OPTICAL)
SERVICE DC 19V
HDMI OUT
(TV-ARC)
DIGITAL AUDIO IN
(OPTICAL)
DIGITAL AUDIO IN
(OPTICAL)
ID SET NETWORK
󱂓 󱂔 󱂕 󱂖 󱂗 󱂘
󱂓
ID SET
Press to connect the Soundbar to Surround speakers and a subwoofer wirelessly.
(The surround speaker, subwoofer are sold separately.)
󱂔
NETWORK
Press to connect to a wireless network (Wi-Fi) via the SmartThings app.
󱂕
SERVICE
Connect a USB storage device to upgrade the product's software.
󱂖
DC 19V (Power Supply In)
Connect the AC/DC power adapter. (See page 16)
󱂗
DIGITAL AUDIO IN (OPTICAL)
Connect to the digital (optical) output of an external device. (See page 27)
󱂘
HDMI (ARC)
Connect to the HDMI jack on a TV. (See page 21)
• When disconnecting the power cable of the AC/DC power adaptor from a wall outlet, pull the plug.
Do not pull the cable.
• Do not connect this unit or other components to an AC outlet until all connections between
components are complete.

Samsung HW-S61T Specifications

General

Audio decoders	Dolby Digital 5.1
RMS rated power	180 W
Audio output channels	4.0 channels
Audio Return Channel (ARC)	Yes
Soundbar speaker RMS power	- W
Connectivity technology	Wired & Wireless
Subwoofer location	Built-in
Product color	Gray
TV stand usage	-
Audio formats supported	AAC, AIFF, ALAC, FLAC, MP3, OGG, WAV
Number of products included	1 pc(s)
Package depth	217 mm
Package width	1018 mm
Package height	135 mm
Package weight	5300 g
Soundbar power consumption	23 W
Power consumption (standby)	0.45 W

Weight and Dimensions

Depth	125 mm
Width	764 mm
Height	68 mm
Soundbar weight	2900 g
