Samsung HW-S61T User Manual

ENG - 19
Connecting an SWA-W500 (Sold Separately) to your Soundbar

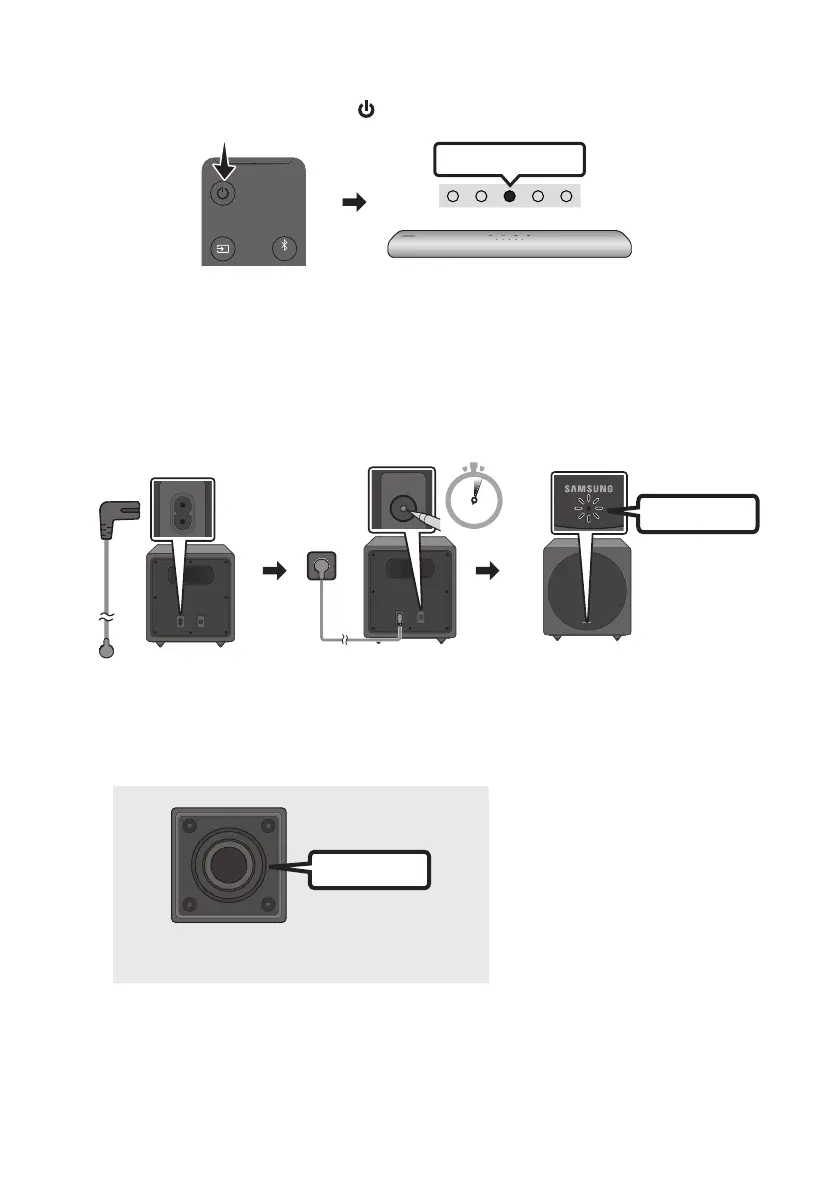

1. Turn off the Soundbar by pressing the (Power) button on the remote control.
VOL WOOFER
SOUNDBAR
SOUND
MODE
PAIR
Red Blinks X3
2. Plug in the Wireless Subwoofer, and then check its standby status.
• Plug the Wireless Subwoofer power cord into an electrical outlet and into the Wireless
Subwoofer to turn on the Wireless Subwoofer. The LINK LED indicator (blue LED) on the
Wireless Subwoofer blinks. If the LED does not blink, press the ID SET button on the rear of the
Wireless Subwoofer with a pen tip for 5~6 seconds until the LINK LED indicator blinks (in Blue).
For more about the LED, please refer to the SWA-W500 user manual.
Rear of the Wireless Subwoofer
POWER ID SET
POWER ID SET
Front of the Wireless Subwoofer
POWER ID SET
POWER ID SET
Blue blinking
POWER ID SET
ID SET
5 Sec
• The main unit is heavy. Be careful not to pinch your ngers when pressing the ID SET button or
connecting the power cord to the rear of the unit.
• The upper part of the subwoofer is prone to scratches. Handle it carefully.
Speaker Unit
Bottom of the Wireless Subwoofer
• Do not press on or strike the
Speaker Unit on the bottom of
the body. You can deform or
damage the speaker.

Samsung HW-S61T Specifications

General

Audio decoders	Dolby Digital 5.1
RMS rated power	180 W
Audio output channels	4.0 channels
Audio Return Channel (ARC)	Yes
Soundbar speaker RMS power	- W
Connectivity technology	Wired & Wireless
Subwoofer location	Built-in
Product color	Gray
TV stand usage	-
Audio formats supported	AAC, AIFF, ALAC, FLAC, MP3, OGG, WAV
Number of products included	1 pc(s)
Package depth	217 mm
Package width	1018 mm
Package height	135 mm
Package weight	5300 g
Soundbar power consumption	23 W
Power consumption (standby)	0.45 W

Weight and Dimensions

Depth	125 mm
Width	764 mm
Height	68 mm
Soundbar weight	2900 g
