Samsung HW-S61T User Manual

ENG - 37

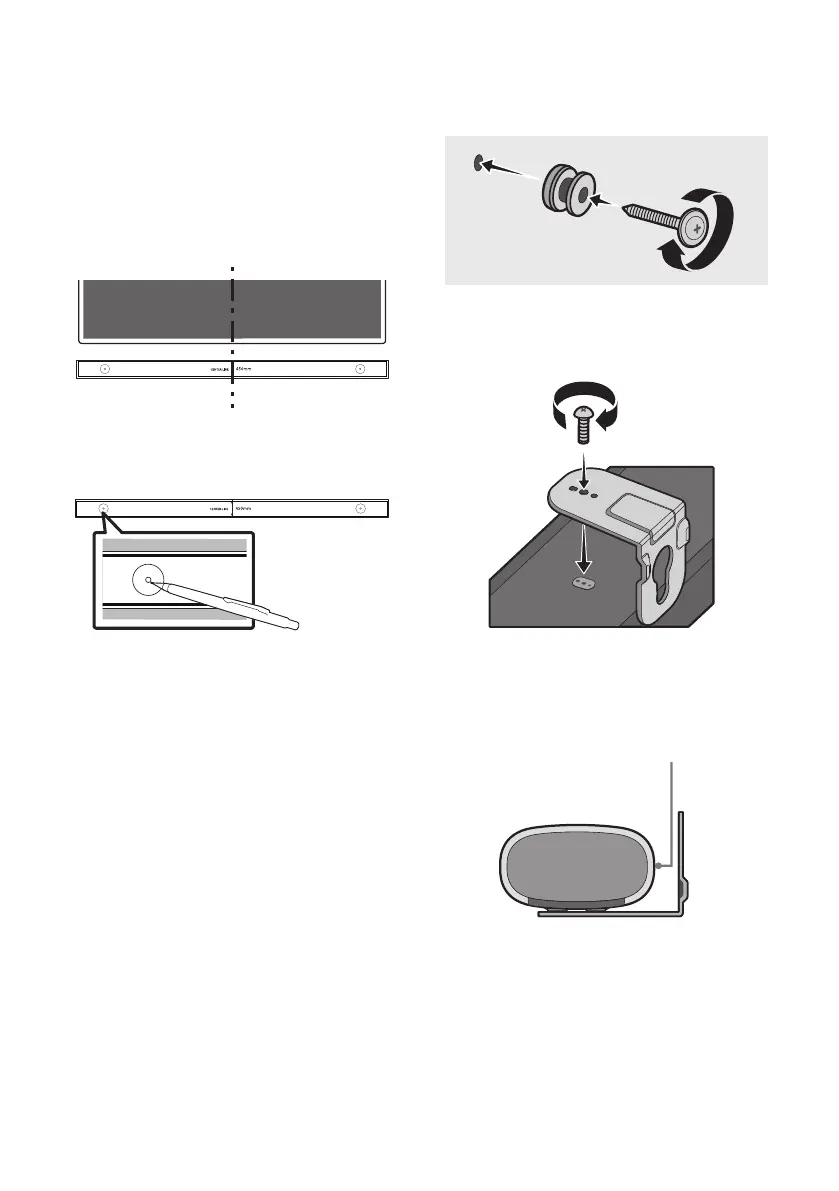

2. Align the Wall Mount Guide’s Center Line
with the center of your TV (if you are
mounting the Soundbar below your TV), and
then x the Wall Mount Guide to the wall
using tape.
• If you are not mounting below a TV, place
the Center Line in the center of the
installation area.
Center Line
3. Use a pen to mark the positions of the holes
and remove the Wall Mount Guide.
4. Using an appropriately sized drill bit, drill a
hole in the wall at each marking.
• If the markings do not correspond to the
positions of studs, make sure you insert
appropriate anchors or mollies into the
holes before you insert the support
screws. If you use anchors or mollies,
make sure the holes you drill are large
enough for the anchors or mollies you
use.
5. Push a screw (not supplied) through each
Holder-Screw, and then screw each screw
rmly into a support screw hole.
6. Install the 2 Bracket-Wall Mounts in the
correct orientation on the bottom of the
Soundbar using 2 Screws.
• When assembling, make sure the hanger
part of the Bracket-Wall Mounts are
located behind the rear of the Soundbar.
Rear of Soundbar
Right end of Soundbar

Samsung HW-S61T Specifications

General

Audio decoders	Dolby Digital 5.1
RMS rated power	180 W
Audio output channels	4.0 channels
Audio Return Channel (ARC)	Yes
Soundbar speaker RMS power	- W
Connectivity technology	Wired & Wireless
Subwoofer location	Built-in
Product color	Gray
TV stand usage	-
Audio formats supported	AAC, AIFF, ALAC, FLAC, MP3, OGG, WAV
Number of products included	1 pc(s)
Package depth	217 mm
Package width	1018 mm
Package height	135 mm
Package weight	5300 g
Soundbar power consumption	23 W
Power consumption (standby)	0.45 W

Weight and Dimensions

Depth	125 mm
Width	764 mm
Height	68 mm
Soundbar weight	2900 g
