English - 4

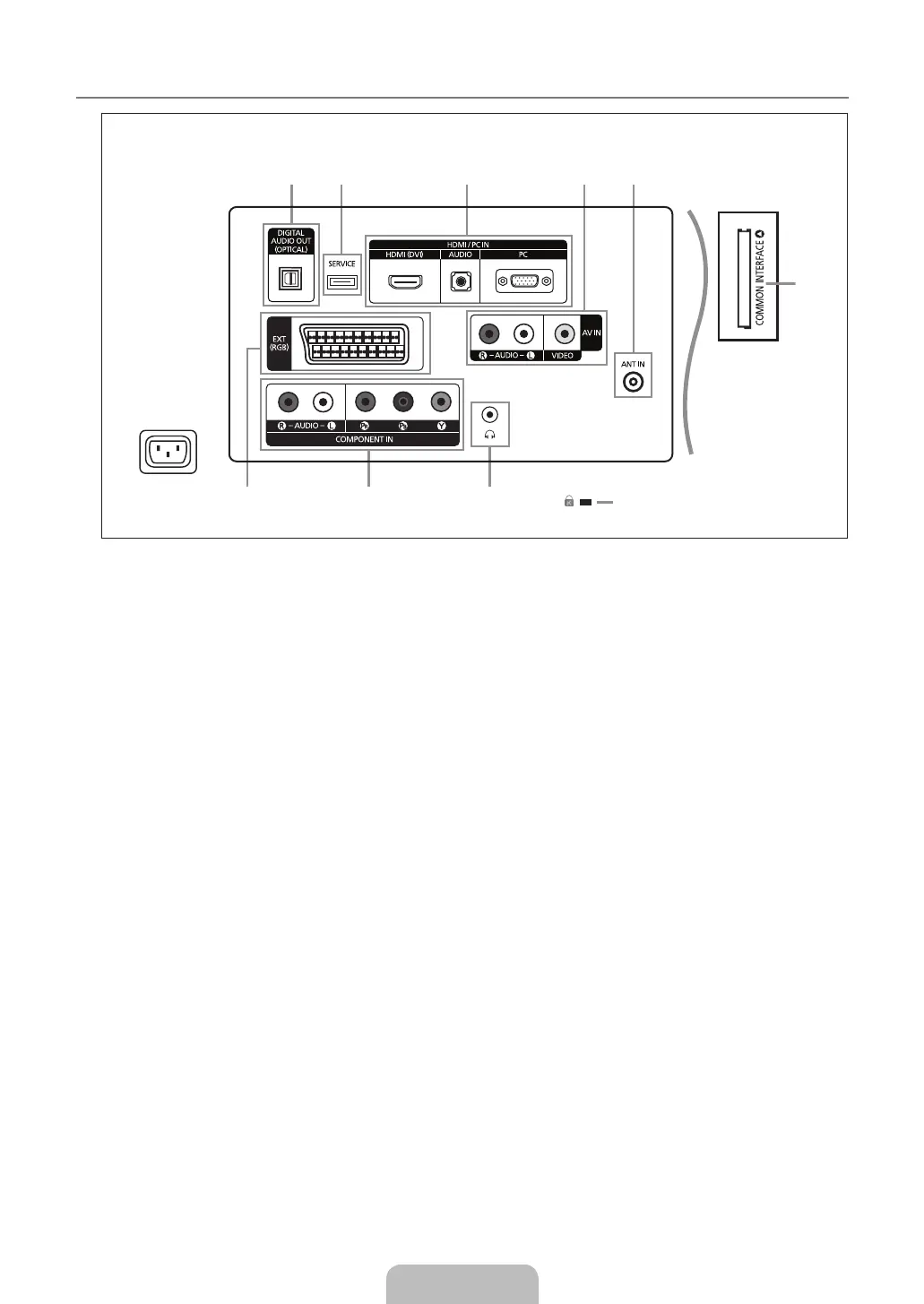

Viewing the Connection Panel ¦
The product colour and shape may vary depending on the model. N
N
N
1
DIGITAL AUDIO OUT (OPTICAL)
Connects to a Digital Audio component such as a Home theatre receiver. –
N DIGITAL AUDIO OUT (OPTICAL)
2
SERVICE
Connector for software upgrades. –
3
HDMI / PC IN [HDMI (DVI), AUDIO, PC]
–
No additional Audio connection is needed for an HDMI to HDMI connection. N
N
using a single cable.
Use the N HDMI / PC IN [HDMI (DVI)]
adapter (DVI to HDMI) for video connection and the HDMI / PC IN [AUDIO]
cable connection, you must use the HDMI / PC IN [HDMI (DVI)]
HDMI / PC IN [AUDIO]
–
DVI audio outputs for external devices. –
HDMI / PC IN [PC]
–
N HDMI / PC IN [HDMI (DVI)] terminal.
N HDMI / PC IN [HDMI (DVI)] / [AUDIO] terminal.
4
AV IN [VIDEO] / [R-AUDIO-L]
Connect RCA cable to an appropriate external A/V device such as VCR, DVD or Camcorder. –
Connect RCA audio cables to – [R-AUDIO-L] on your set and the other ends to corresponding audio out connectors on the
A/V device.
[TV Rear Panel]
Power Input
