Samsung ML-1645

Service Manual
Product spec and feature
2-14
Samsung Electronics

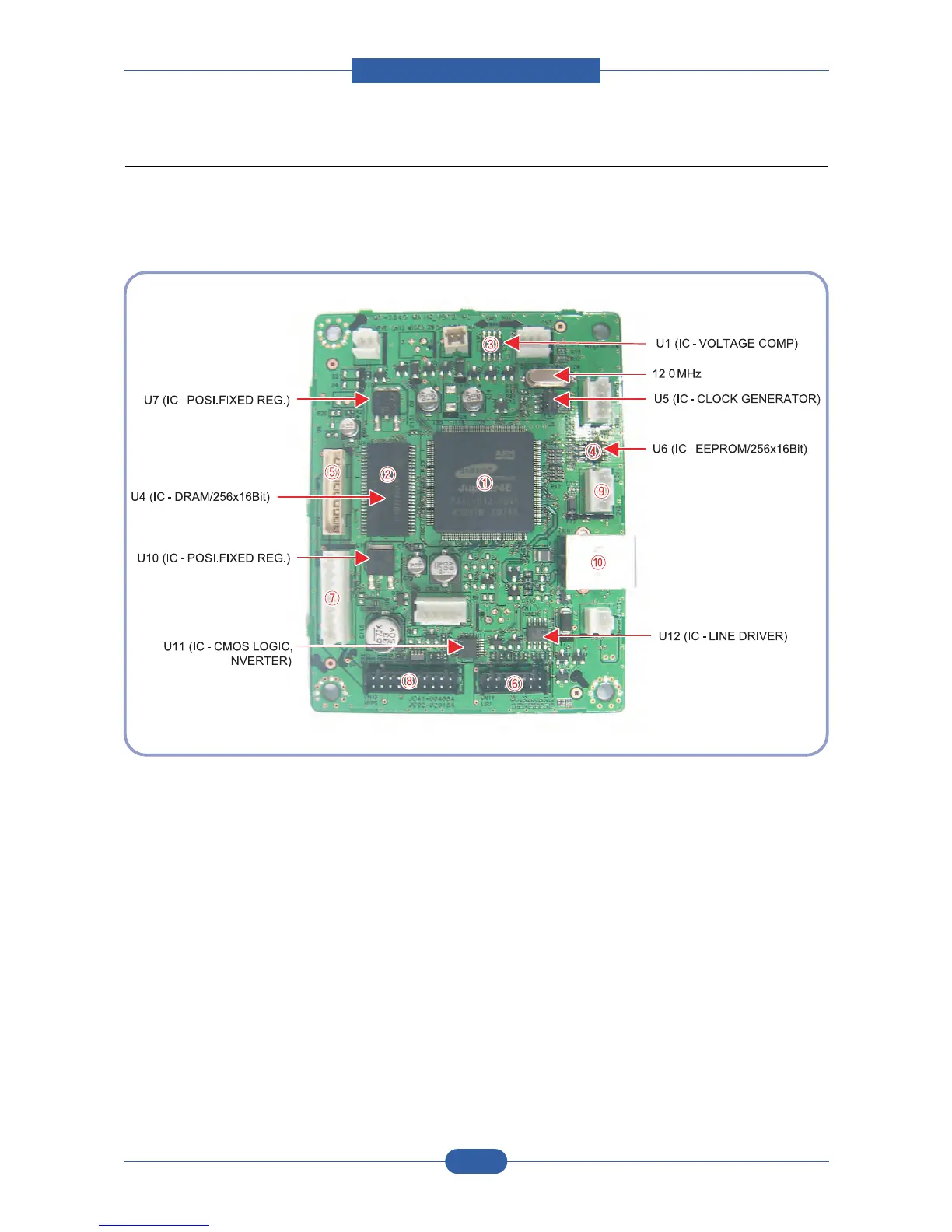

2.2.2.2 Main Board
Main Board are composed of Engine and Controller on the one-Board.
Main Board control to send Current Imagedml Video Data to LSU to print and have motor Driving and Circuit for the
current driving and also include Paper Exit Sensor, Cover Open s/w, panel s/w.
