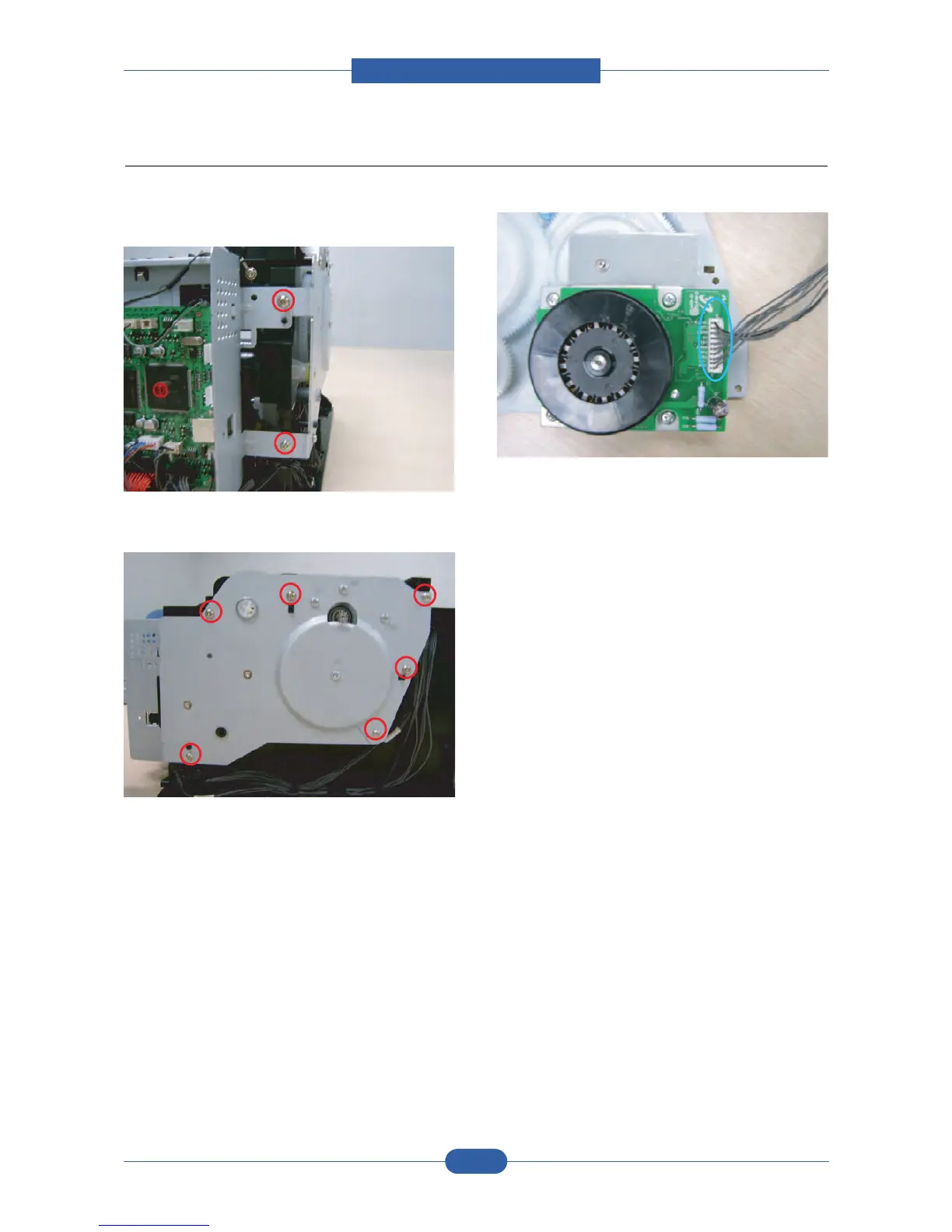

1. To remove the Drive assy, first remove the Main cover
(refer to 3.3 ). And remove the 2 screws as shown
below.
2. Remove the 6 screws and then release the Drive unit.
3. Unplug the one harness.
3.2.6 Drive unit
