Samsung ML-1645 - Transfer Roller

Service Manual
Disassembly and Reassembly
3-8
Samsung Electronics
• Before disassembling, Separate the Main cover (refer to 3..3 ) and Fuser unit (refer to .3.4 )
• Remove the transfer roller by lift up the edge with any tool.

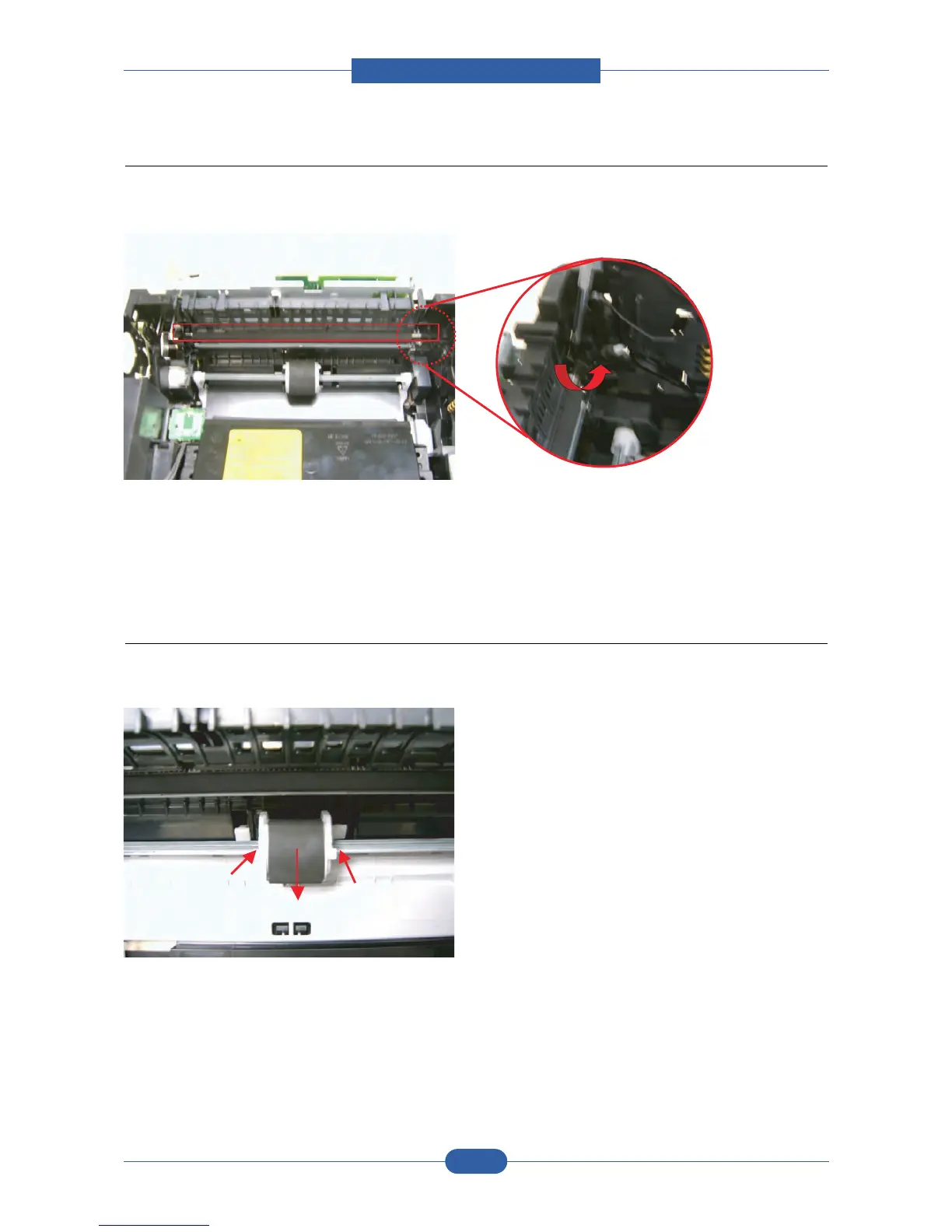

3.2.9 Transfer roller
1. Remove the hook of both side. And pull the pick-up
roller to the direction of arrow.
3.2.10 Pick up roller
