Samsung ML-1645

Service Manual
Product spec and feature
2-23
Samsung Electronics
- Output Voltage Falling Time : 50 ms Max
- Output Loading range : 10Mߟ ~ 1000
- Output Control Signal (BIAS-PWM) : the CPU output is HV output when PWM is low.
4) Supply
- Output Voltage : -550 V 8.6%(ZENER using, DEV )
- Input contrast of the output stability degree : under 5 %
- Loading contrast : 5 % or less
- Output Voltage Rising Time : 50 ms Max
- Output Voltage Falling Time : 50 ms Max
- Output Loading range : 10 ~ 1000
- Output Control Signal (BIAS-PWM) : the CPU is HV output when PWM is low.

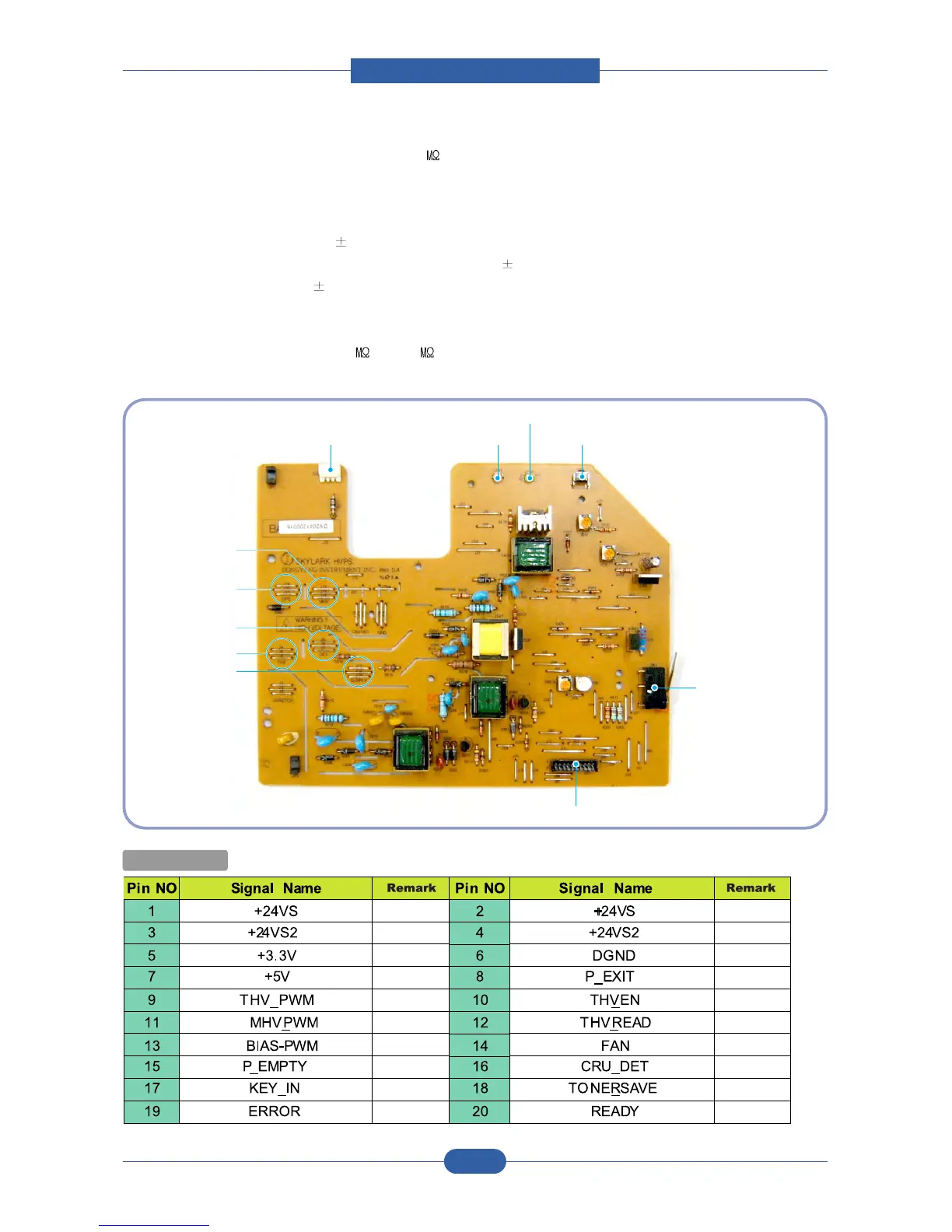

MHV
OPC
DEV
THV
Supply
CN3
LED1
(Error LED)
CN1
LED2
(Toner Save LED)
Switch
Micro Switch
Input
