Samsung MX-E850 - Rear Panel

6 English
English 6
English 7

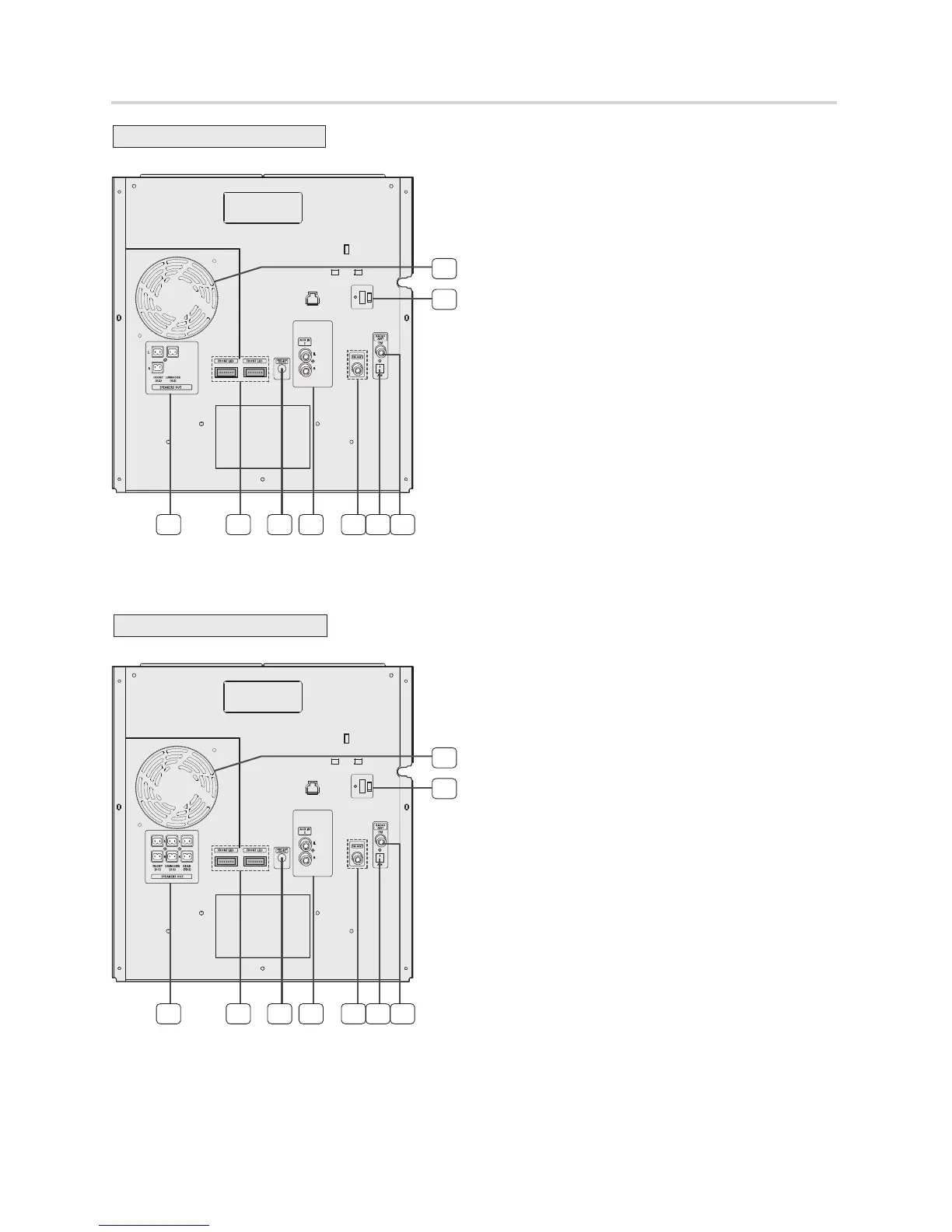

Rear Panel
1. 2.1CH Speaker Connector Terminals
(MX-E850/E851)
4.2CH Speaker Connector Terminals
(MX-E870/E871)
The speakers connector terminals are located on the rear of
the system.
1.
To achieve the correct sound quality, insert those speaker
connector cables to the speaker connector terminals of
the system.
• Leftspeaker(markedL).
• Rightspeaker(markedR).
• TheRearspeakersareonlyforMX-E870/E871.
2. LED Terminals of the Front Speakers
3. ONLY FOR SERVICE
• Thisjackisjustfortesting,pleasedon'tuseit.
4. AUX IN 2 Terminals
1.
Use the Audio Cable (not supplied) to connect AUX IN 2
on the product to Audio Out on the external analog com-
ponent.
• Besuretomatchconnectorcolors.
• IftheexternalanalogcomponenthasonlyoneAudioOut
jack,connecteitherleftorright.
• PresstheTUNER/AUXbuttontoselecttheAUX2input.
• YoucanselectAUX2bypressingtheFUNCTIONbutton
ontheremotecontrol.
5. FM Antenna Connector Terminal
The position of FM antenna connector terminal may differ
depending on your region.
This product may not support the AM function depending on
your region.
1.
Connect the FM antenna (supplied) to the FM Antenna
jack.
2.
Slowly move the antenna wire around until you find a
location where reception is good, then fasten it to a
wall or other rigid surface.
3.
If reception is poor, you may need to install an outdoor
antenna. To do so, connect an outdoor FM antenna to
the FM socket on the rear of the system using a 75Ω
coaxial cable (not supplied).
6. AM Antenna Connector Terminal (Optional)
This product may not support the AM function depending on
your region.
1.
Plug the connector on the AM antenna (Optional) into
the AM terminal on the rear of the system.
7. Voltage Selector (Optional)
Check the position of the voltage selector on the rear of the
system(optional).
This product may not support the Voltage Selector function
depending on your region.
8. Cooling fan
• Thefanalwaysturnswhenthepowerison.Securea
minimum10cmofclearspacefromallsidesofthefan
wheninstallingtheproduct.
1
1
2
2
3
3
4
4
5
5
6
6
5
5
7
7
8
8
MX-E850/E851
MX-E870/E871
