3. Disassembly and Reassembly
- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -
- This Document can not be used without Samsung's authorization -
R530/R730
Part Picture Description
Main
System

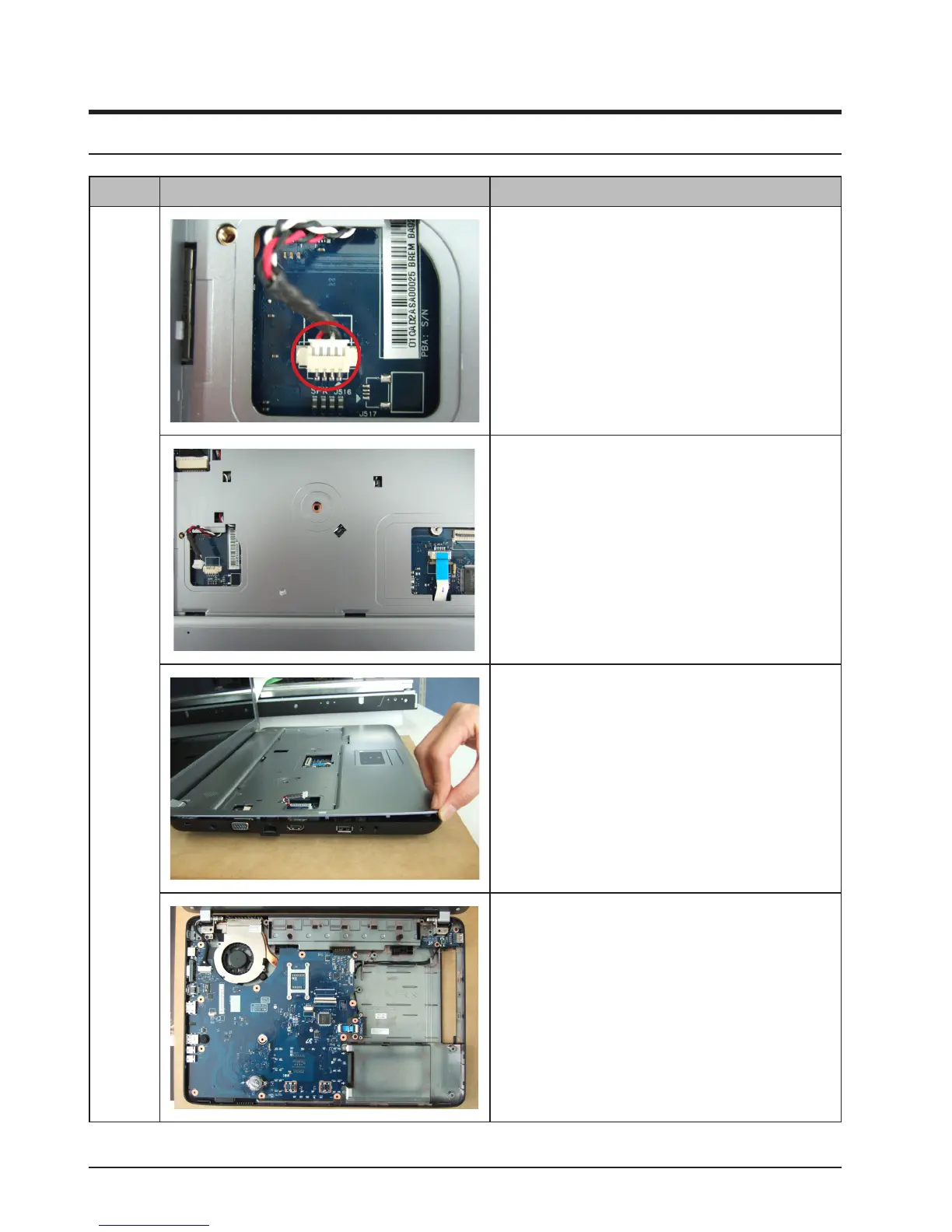

15. Remove the speaker cable.
16. Condition after removing the T/P and speaker cable.
17. As shown in the picture, separate Front-cover by
widening the gap between the Front cover and the
Bottom cover. (Be careful not to make scratch in the gap
using a wooden-driver.)
18. Conditions after removing the Front Cover.
