3-5
3. Disassembly and Reassembly
- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -
- This Document can not be used without Samsung's authorization -
R530/R730
Part Picture Description
Main
System

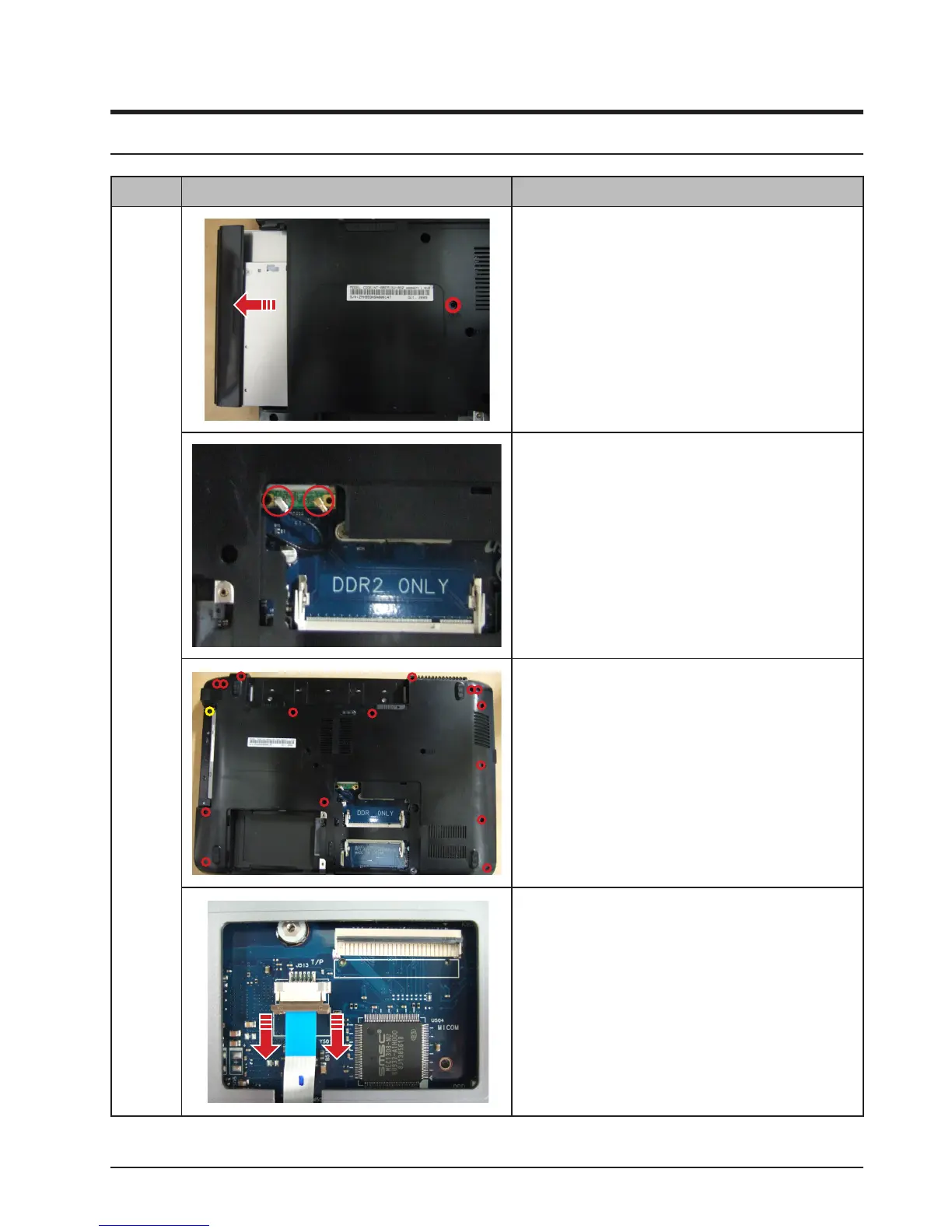

11 Remove the ODD.
1) As shown in the picture, remove the screw for xing ODD.
(M2 x L8, Black:1 EA)
2) Separate the ODD from the bottom cover by pushing it to
the arrow direction.
12. Remove the WLAN cable from the WLAN board.
13. Remove the bottom screws
(M2 x L8, Black: 14 EA/ L5 x 2EA, L3 x 1 EA Black)
14. Remove the T/P (Touch Pad).
1) Place PC set upside down.
2) Unlock the connector to arrow direction as shown in the
picture and then remove the Touch Pad cable.
To Next Page
