3. Disassembly and Reassembly
- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -
- This Document can not be used without Samsung's authorization -
R530/R730
Part Picture Description
Main
System

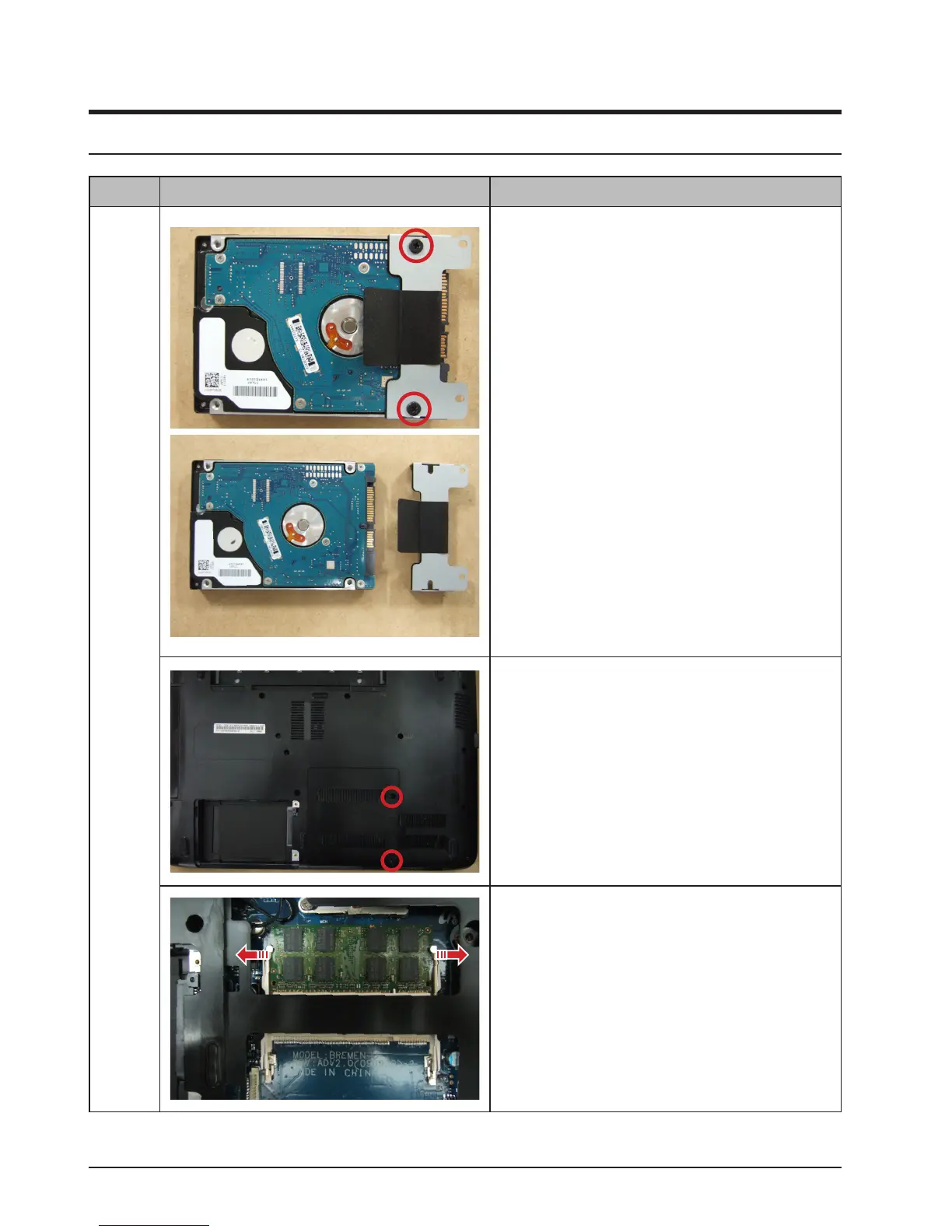

4) Remove the screws (2 EA) for xing the HDD and
separate the HDD from the bracket.
10. Remove the memory door.
1) Remove the screw (2EA) for xing memory door.
(M2 x L4, Black: 2ea)
2) Remove the memory by pushing the xed-tap out
To Next Page
