Connection
"
Ensure you connect each of the adapters to the correct RS232C
port on the product.
"
Connecting parts may differ depending on the model.

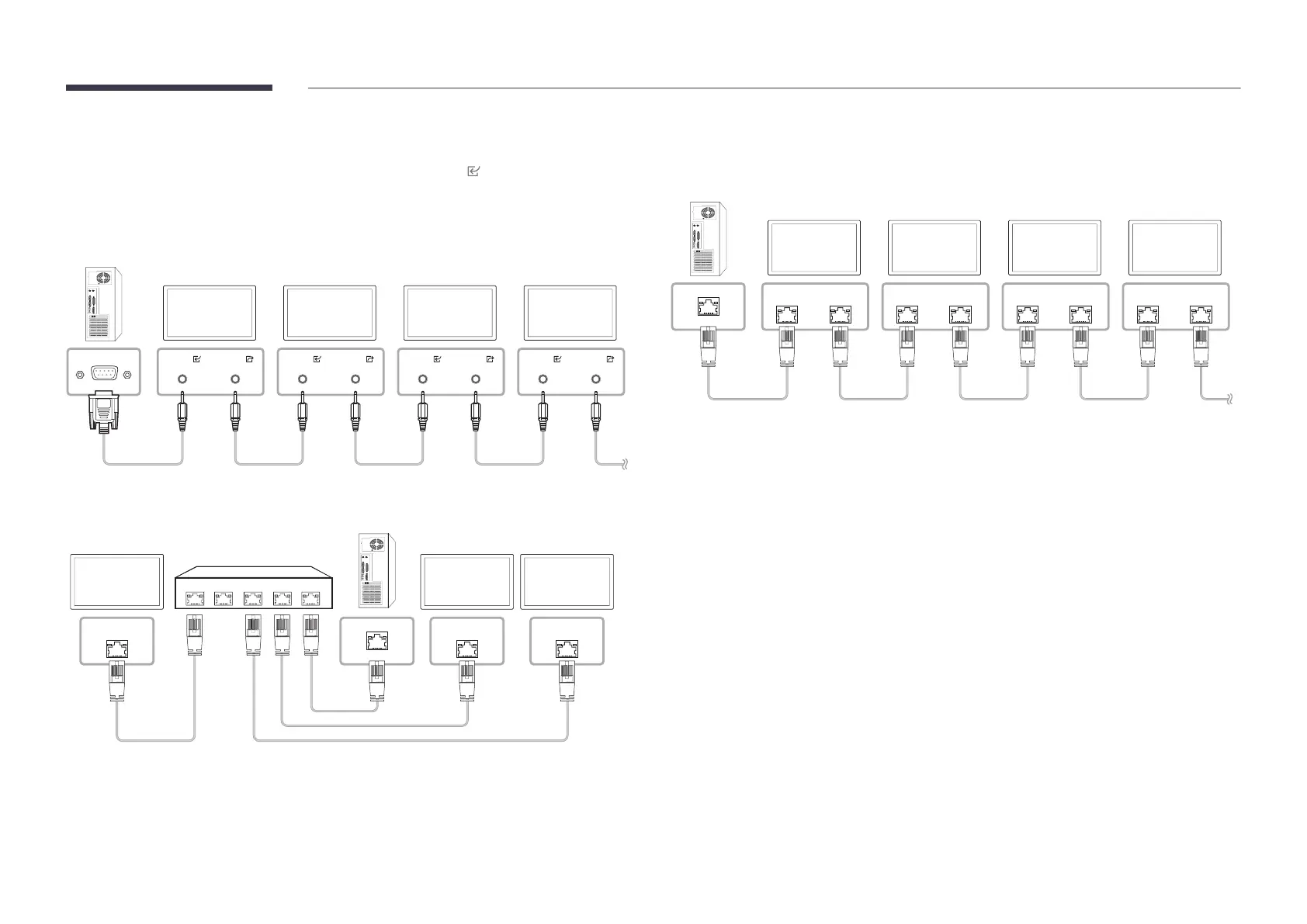

Connection 1
RS232C IN RS232C RS232C IN RS232C RS232C IN RS232C RS232C IN RS232C
Monitor 1 Monitor 2 Monitor 3 Monitor 4
PC
Connection 2
5 4 3 2 1
LAN LAN LAN
Monitor 2Monitor 1
PC
Monitor 3
Connection 3
"
This option is only available for models that have LAN ports.
LAN LAN LAN LAN LAN LAN LAN LAN
Monitor 1 Monitor 2 Monitor 3 Monitor 4
PC
